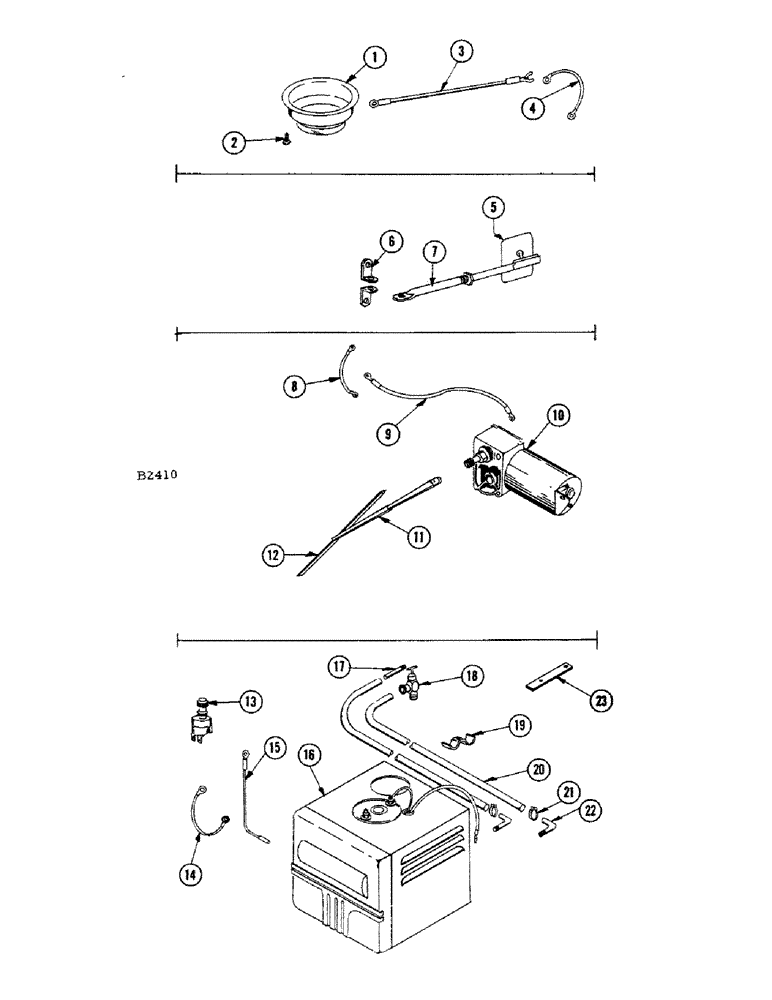

Запчасти Case IH 660 (236) - CAB ATTACHMENTS, LATER PRODUCTION
№
Артикул
Название
Примечание
Количество
1
F87189
DOME LIGHT - 12 volt, with switch and wire (Grote #S232)
1шт.
B50217
BULB
- mfg. #GE-93
1шт.
3
F87190
WIRE - domelight to terminal box
1шт.
4
F87185
WIRE - jumper, terminal box to domelight wire
1шт.
5
F87186
HEAD - Rear View Mirror
1шт.
6
F87188
BRACKET - mounting (Set of two), rear view mirror
1шт.
BOLT - 1/4" x 1-3/4" N.F. hex (114-8) nut (129-121), rear view mirror
2шт.
WASHER - 1/4" flat (195-102), rear view mirror
2шт.
LOCKWASHER - 1/4" ext. int. tooth (193-73), rear view mirror
4шт.
7
F87187
ARM - extension, rear view mirror
1шт.
8
F87185
WIRE - jumper, terminal box to wiper wire, windshield
1шт.
9
F87198
WIRE - wiper motor to jumper wire, windshield
1шт.
214-1101
CLIP - wire (Ref. 9) (Not shown), windshield wiper
3шт.
10
F87197
MOTOR - wiper (American Bosch #WWF12A1-506), windshield
1шт.
F13240
SWITCH - windshield wiper (Bosch #SW701)
1шт.
SCREW - #10 x 5/8" truss hd. mach. (175-446) nut (129-17), windshield wiper
1шт.
WASHER - 3/16" flat (195-101) int. L.W. (193-70), windshield wiper
1шт.
11
A10893
ARM
- wiper (14"), windshield
1шт.
12
A10894
WINDSHIELD WIPER
BLADE - wiper (14"), windshield
1шт.
13
F13231
SCREW
SWITCH - heater (Kysor #3287)
1шт.
14
F87185
WIRE - jumper, terminal box to heater switch
1шт.
15
F87184
WIRE -, Serial Range: switch-heater
1шт.
F13235
SCREW
CLIP - wire, heater
5шт.
16
F87183
HEATER - 12 volt (Kysor #X610)
1шт.
F14993
MOTOR
heater
1шт.
F14994
FAN, heater
11шт.
F14995
CORE - radiator, heater
1шт.
BOLT - 1/4" x 5/8" N.C. hex. (113-2) L.W. (192-19), heater
3шт.
17
A19940
PIPE
NIPPLE - hose connection, heater
1шт.
18
A16764
VALVE
- water shut off, engine heater hose
1шт.
19
F13234
CLAMP - double, hose, heater
4шт.
20
F13233
SCREW
HOSE -, Serial Range: heater-engine
2шт.
21
F13232
CLAMP - hose, heater
4шт.
22
A19941
PACKAGE
ELBOW - 90 degree (Hose), heater
2шт.
23
F22583
BRACKET - stand-off (Gas engines only), heater
1шт.
Выбрано товаров: 36
