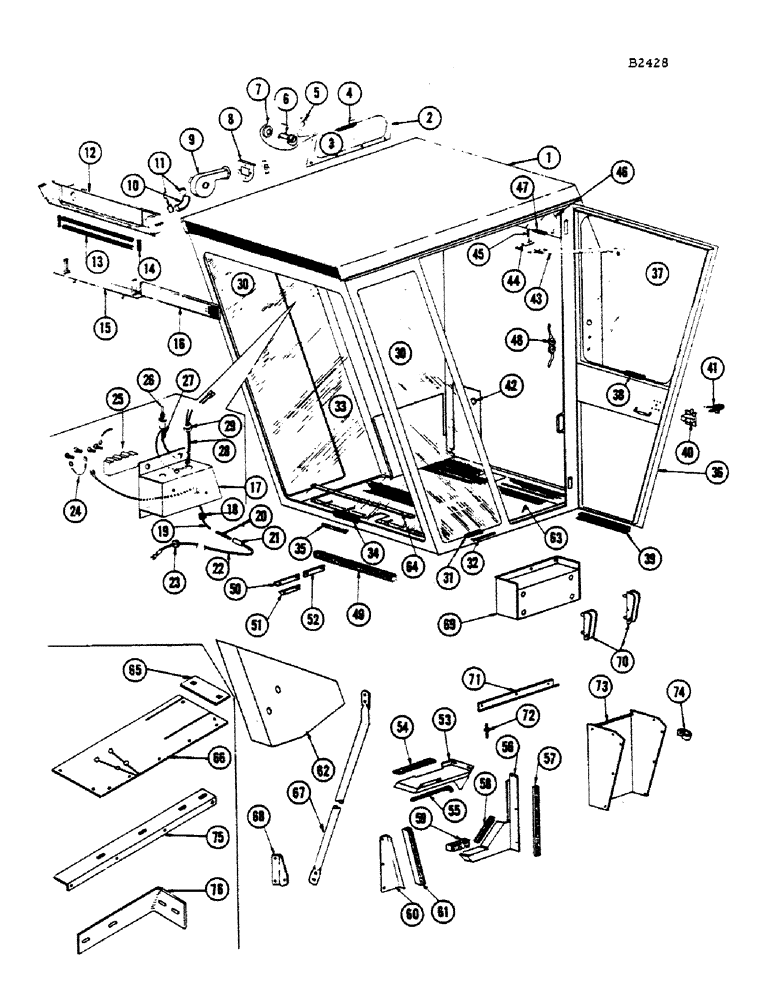

Запчасти Case IH 660 (232) - OPERATORS CAB, BEFORE NUMBER 8309001

1

F84685M

CAB - operator's (Grain combine) (Machinery item)

1шт.

1

F84686M

CAB - operator's (660 special combine) (Machinery item)

1шт.

2

F22099

WINDOW - right side rear

1шт.

3

F22101

GLASS - right side rear window

1шт.

4

F22108

GLASS

MOULDING - right side rear glass (60")

1шт.

F22107

FILLER STRIP - right side rear glass (60")

1шт.

5

F22110

RUBBER - 3/8" x 3/4" sponge

1шт.

6

F22109

FASTENER - ring head

2шт.

7

F21319

X

RETAINER - ring head fastener

2шт.

8

F22123

BRACKET - support, blower

1шт.

9

F84816

BLOWER - 12 volt

1шт.

10

F84817

WIRE MOLD - air duct

1шт.

11

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose (4")

2шт.

12

F84821

AIR DUCT - blower

1шт.

13

F22124

SEAL - (1/2" x 1-1/4" x 28-1/4 foam) air duct

2шт.

14

F22117

SEAL - (1/2" x 1-1/4" x 6-3/4" foam) air duct

2шт.

15

F84819

FRAME - filter

1шт.

16

F84818

FILTER

- blower

1шт.

17

F84812

BOX - terminal

1шт.

18

F21348

GROMMET - front wire

1шт.

19

F84235

WIRE - front, terminal box to ignition

1шт.

20

F21352

TERMINAL

1шт.

F84287

WIRE - rear, terminal box to ignition

1шт.

21

F21330

CONNECTOR

1шт.

22

F84677

WIRE - to ignition switch opposite terminal (Includes ref. 20)

1шт.

23

F53322

GROMMET - in terminal box front panel

1шт.

24

F21300

WIRE - jumper, front wire to switch

1шт.

25

F21332

BLOCK - terminal

1шт.

26

F84815

SWITCH - blower

1шт.

27

F84813

WIRE -, Serial Range: terminal-switch

1шт.

28

F84814

WIRE - terminal box to blower (Includes ref. 20)

1шт.

F22125

CLIP - wire

5шт.

29

F21347

GROMMET - blower wire

1шт.

30

F21315

GLASS - side, front L.H. and R.H.

2шт.

31

F21359

MOLDING

MOULDING - front L.H. and front R.H. glass (136")

2шт.

32

F21360

FILLING STRIP

FILLER STRIP - front L.H. and front R.H. glass (136")

2шт.

33

F21314

WINDSHIELD

1шт.

34

F21340

MOLDING

MOULDING - windshield glass (184")

1шт.

35

F21341

FILLING STRIP

FILLER STRIP - windshield glass moulding (184")

1шт.

36

F84804

DOOR

1шт.

37

F21321

GLASS - door

1шт.

38

F21365

MOLDING

MOULDING - door glass (95-1/2")

1шт.

F21366

STRIP

FILLER STRIP - door glass (95-1/2")

1шт.

39

F21324

SEAL - weather, door

1шт.

40

F84806

LATCH - with handle, inside

1шт.

41

F84805

HANDLE - door, outside

1шт.

42

F21320

CATCH - door latch (Replaced by F22421 when exhausted)

1шт.

43

F84807

ROD - door check

1шт.

44

F22111

CLIP - check rod

1шт.

45

F22112

SPRING - check rod

1шт.

46

F21391

GLASS - rear

1шт.

47

F21373

MOLDING

MOULDING - rear glass (84")

1шт.

F21372

FILLING STRIP

FILLER STRIP - rear glass (84")

1шт.

48

F21393

CLEAT - for line to raise platform ladder

1шт.

49

F22443

SEAL - (1-1/2" x 1-1/2" x 20" foam) cab front

1шт.

50

F22119

ANGLE - sill, R.H. front

1шт.

51

F22120

SPACER - (#16 ga.) cab, R.H. front

1шт.

52

F22121

SPACER - (#11 ga.) cab, R.H. front

1шт.

53

F84808

PANEL - filler, tailings elevator (Grain combine)

1шт.

53

F84823

PANEL - filler, tailings elevator (660 special combine)

1шт.

54

F22113

SEAL - (1/32" x 2" x 10-1/2") (Grain combine)

1шт.

54

F22114

SEAL - (1/2" x 1-1/4" x 23" foam) (660 special combine)

1шт.

55

F22114

SEAL - (1/2" x 1-1/4" x 23" foam) (Grain combine)

1шт.

55

F22127

SEAL - (1/32" x 2" x 8-1/2") (660 special combine)

1шт.

56

F84810

PANEL - filler, rear (Tailings elevator)

1шт.

57

F22118

SEAL - (1/2" x 1-1/4" x 17.56" foam)

1шт.

58

F22117

SEAL - (1/2" x 1-1/4" x 6-3/4" foam)

1шт.

59

F22116

SEAL - (1-1/2" x 1-1/2" x 4.18" foam)

1шт.

60

F84809

PANEL - filler, front (Tailings elevator)

1шт.

61

F22115

SEAL - (1-1/2" x 1-1/2" x 14-3/4" foam)

1шт.

62

F84824

FILLER - R.H. (660 special combine)

1шт.

63

F21960

FLOORMAT - (Rubber)

1шт.

64

F22056

STRIP - hold, floormat

1шт.

65

F22055

STRIP - operator's platform floor

1шт.

66

F22054

SEAL - (Rubber) operator's platform floor

1шт.

67

F22517

BRACE - platform (Replaces F84436 when stocks are exhausted)

1шт.

67

F84436

BRACE - platform (Replaced by F22517 when stocks are exhausted)

1шт.

68

F21287

BRACKET - platform, Serial Range: brace-axle

1шт.

69

F84682

EXTENSION - ladder

1шт.

70

F84186

YOKE - pivot, ladder

2шт.

71

F21947

SUPPORT - angle, ladder (660 special combine)

1шт.

72

F21948

STUD - angle support (660 special combine)

2шт.

73

F21946

SUPPORT - ladder (660 special combine)

1шт.

74

F17860

CLAMP - ladder support (660 special combine)

10шт.

75

F84678

SUPPORT - angle, cab to grain bin (Grain combine)

1шт.

76

F21959

BRACKET - tie in, cab to grain bin (660 special combine)

1шт.
