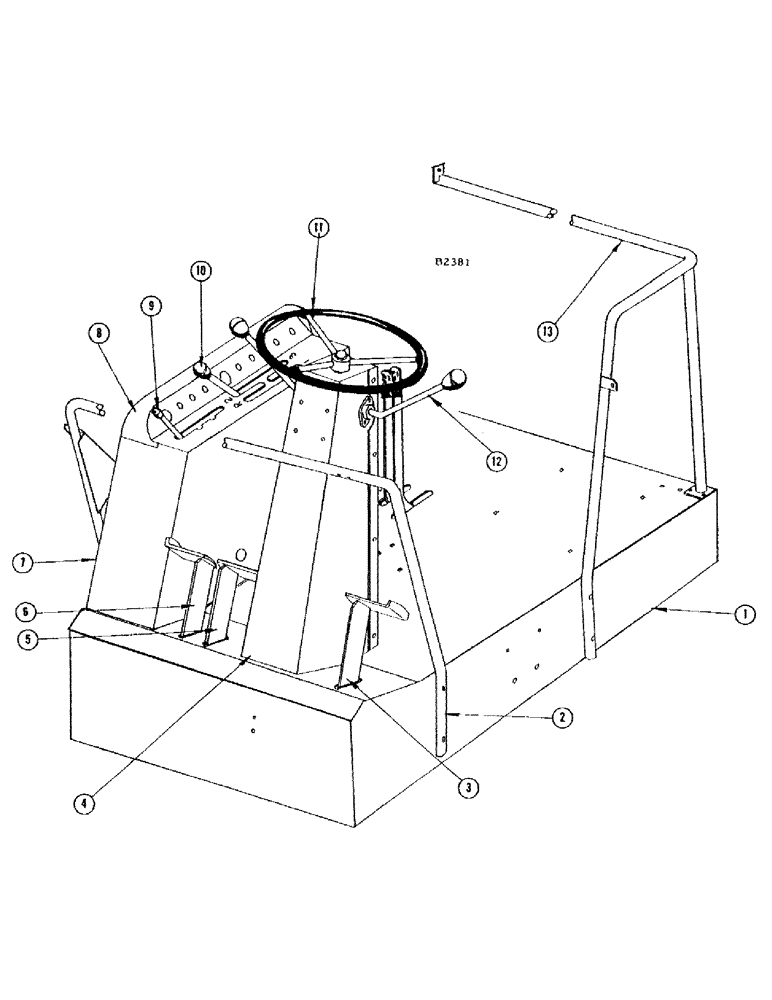

Запчасти Case IH 660 (224) - OPERATORS PLATFORM

1

F84355

PLATFORM - (Before #8357001) (When depleted use F94382)

1шт.

1

F94382

PLATFORM - (#8357001 and after) (See F84355)

1шт.

2

F94016

HANDRAIL - front (Replaces F84356 when stocks are exhausted)

1шт.

F84356

HANDRAIL - front (Replaced by F94016 when stocks are exhausted)

1шт.

3

F81673

PEDAL - clutch

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116)

2шт.

4

F84359

COLUMN - steering (Manual steering)

1шт.

4

F84371

COLUMN - steering (Solid shaft) (Used before #8357001)

1шт.

4

F84374

COLUMN - steering (Adjustable shaft) (Hydro steering) (Before #8357001) (When depleted use F94389)

1шт.

4

F94389

COLUMN - steering (Adjustable shaft) (Hydro steering) (#8357001 and after) (See F84374)

1шт.

5

F81749

PEDAL - L.H. brake

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116)

2шт.

6

F81935

PEDAL - R.H. brake

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116)

2шт.

7

F22375

PANEL - instrument (Replaces F21637 when stocks are exhausted)

1шт.

F21637

PANEL - instrument (Replaced by F22375 when stocks are exhausted)

1шт.

SCREW - #10 x 3/8" truss hd. slotted (187-1027)

6шт.

8

F84411

HOOD - instrument panel

1шт.

SCREW - #10 x 3/8" truss hd. slotted (187-1027)

4шт.

9

F21575

CARRIAGE BOLT

LEVER - throttle

1шт.

BOLT - 1/4" x 1-1/2" N.F. hex (14-424) locknut (131-1)

1шт.

10

F21574

LEVER - gear shift

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex (13-620) locknut (131-6)

1шт.

11

F17376

WHEEL

- steering (Manual steering)

1шт.

A7668

WHEEL

- steering (Hydrostatic steering)

1шт.

12

F17291

LEVER - header lift and variable speed (Manual steering)

2шт.

F21583

CARRIAGE BOLT

LEVER - header lift and variable speed (Hydrostatic steering)

2шт.

13

F84388

HANDRAIL - rear (Grain combine)

1шт.

F84387

HANDRAIL - rear (660 special combine)

1шт.

F83575

HANDRAIL - rear (Bagging platform)

1шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)

2шт.

BOLT - 3/8" x 1-3/4" N.F. hex (114-204) nut (129-123)

3шт.

BOLT - 3/8" x 2-3/4" N.F. hex (114-217) nut (129-123)

2шт.
