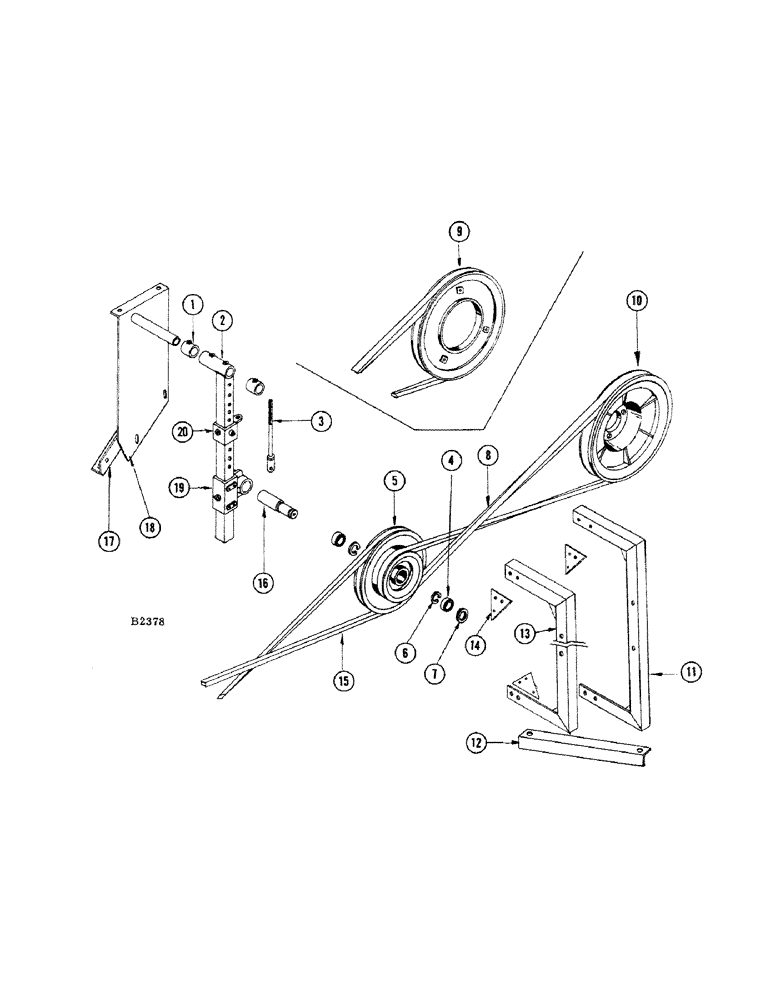

Запчасти Case IH 660 (222) - STRAWCHOPPER, CUTTER AND SPREADER DRIVE

1

F1601

COLLAR - for adjusting hanger

2шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. set (85-610)

2шт.

2

F82884

HANGER - idler adjusting bracket

1шт.

BOLT - 3/8" x 7/8" N.C. hex (13-614) jam nut (25-146)

2шт.

3

F82878

SCREW - idler adjusting

1шт.

NUT - 3/8" N.C. hex jam (25-146)

2шт.

4

F19545

BEARING, BALL

BEARING - for ref. 5 pulley

2шт.

5

F1603

PULLEY - (Step) intermediate idler

1шт.

6

A27150

RING

SNAP RING - intermediate idler pulley bearing

2шт.

7

F19544

RING - retaining, for jackshaft

1шт.

8

F19549

V-BELT,153.00" L

Front Cutter Spreader Drive 153.00" L

1шт.

9

F1605

SHEAVE - cutter drive (Variable speed cylinder drive att.)

1шт.

BOLT - 3/8" x 1" N.C. hex (113-616) nut (25-106)

3шт.

10

F1693

SHEAVE - cutter drive (Chain cylinder drive

1шт.

BOLT - 3/8" x 2-1/4" N.F. hex (14-636) nut (25-116)

3шт.

11

F84610

BRACKET - front support, fuel tank

1шт.

12

F21902

BRACE - bottom, fuel tank supports

1шт.

BOLT - 3/8" x 3/4" N.C. hex (13-106) nut (129-103)

2шт.

13

F84609

BRACKET - rear support, fuel tank

1шт.

14

F21901

BOLT

GUSSET - bracket, fuel tank supports

3шт.

BOLT - 5/16" x 3/4" N.C. hex (113-102) nut (129-102)

6шт.

BOLT - 3/8" x 3/4" N.C. hex (113-206) nut (129-103)

3шт.

15

F19550

V-BELT

"V" BELT - (73") rear, cutter and spreader drive

1шт.

16

F19543

JACKSHAFT - intermediate idler

1шт.

17

F21899

ANGLE - attaching

1шт.

BOLT - 5/16" x 3/4" N.C. hex (13-512) nut (25-105)

2шт.

WASHER - 5/16" flat (195-21) L.W. (92-5)

2шт.

18

F84604

BRACKET - idler, with pipe

1шт.

19

F1602

BRACKET - jackshaft hanger

1шт.

BOLT - 3/8" x 1/2" N.C. hex (13-68)

2шт.

BOLT - 3/8" x 5/8" N.C. hex (13-610)

3шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. set (85-612) and jam nut (25-146)

1шт.

BOLT - 5/16" x 1" N.F. hex (14-516) nut (25-115)

1шт.

WASHER - 5/16" flat (195-21) L.W. (92-5)

1шт.

20

F1600

STOP - for ref. 2 hanger

1шт.

BOLT - 3/8" x 2-1/4" N.C. hex (13-636) L.W. (92-6)

1шт.

SCREW - 3/8" x 1/2" N.C. sq. hd. set (85-608)

1шт.
