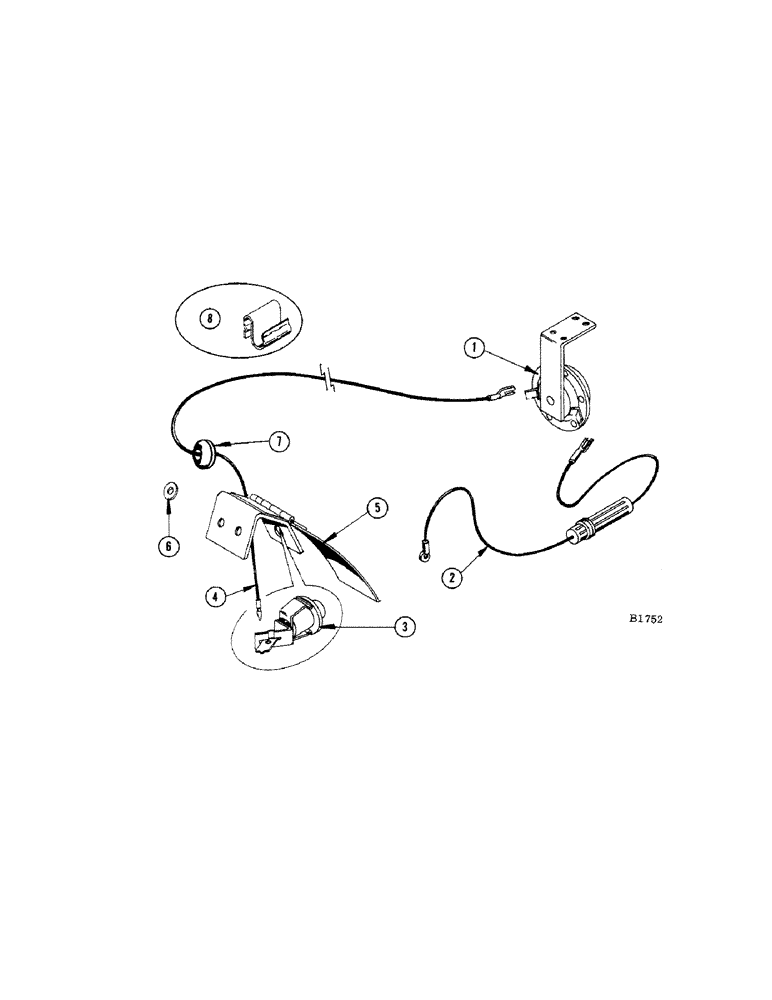

Запчасти Case IH 660 (222[A]) - WARNING DEVICE

1

F88365

HORN

- (12 volt) warning device

1шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" rhd. mach.

4шт.

129-17

NUT,Hex, #10 - 24

NUT - #10 and lockwasher (192-18)

4шт.

2

F88356

WIRE - horn to engine coil

1шт.

223-9

FUSE,9 Amp, Type SFE

- 9 amp

1шт.

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8 x 1/4" rhd. mach. and lockwasher (192-16)

1шт.

3

F14830

SWITCH - (12 volt) horn

1шт.

4

F14832

WIRE -, Serial Range: horn-switch

1шт.

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8 x 1/4" rhd. mach. and lockwasher (192-16)

1шт.

5

F88353

BRACKET - switch, with trip arm

1шт.

113-13

X

BOLT - 1/4" x 3/4" N.C. hex

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, and lockwasher (192-19)

2шт.

6

F14831

WASHER - bracket bolt (113-13)

2шт.

7

A27338

GROMMET

- rubber, for wire hole in rear hood

1шт.

8

F54095

CLIP - wire

8шт.
