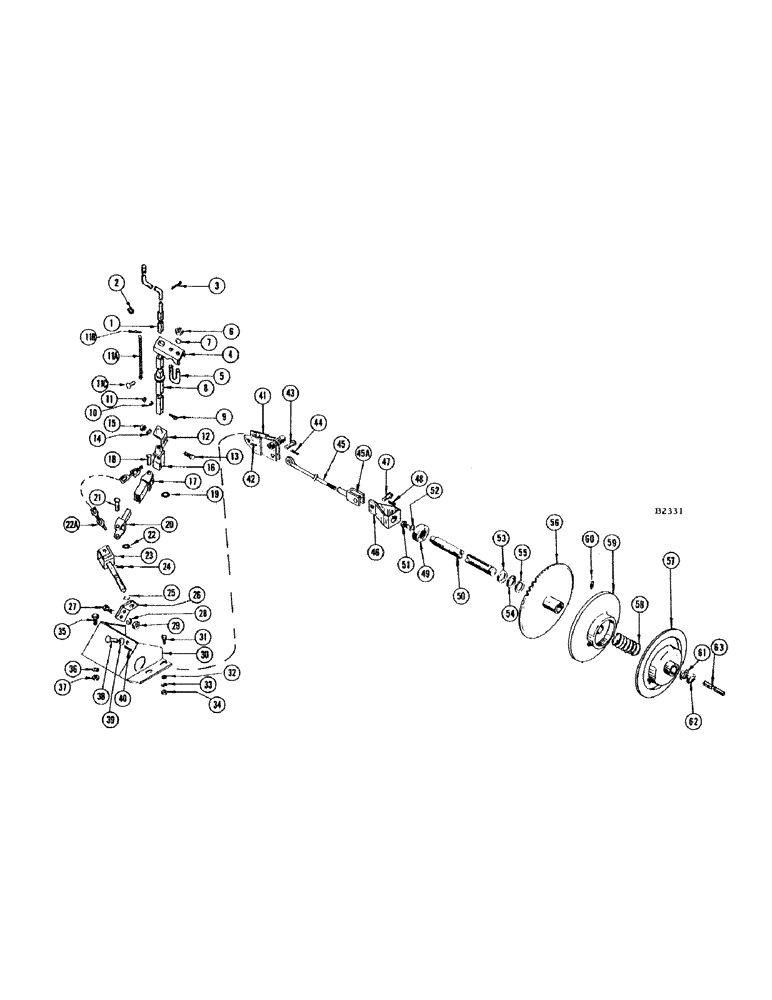

Запчасти Case IH 660 (020) - VARIABLE SPEED REEL CONTROL ATTACHMENT
№
Артикул
Название
Примечание
Количество
1
F84648
CRANK - reel speed control
1шт.
2
195-533
WASHER,1/2", SAE
- 1/2" flat
1шт.
3
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
1шт.
4
F21929
BRACKET - upper
1шт.
5
A22439
"U" BOLT - upper bracket
1шт.
6
9635082
NUT,5/16" - 18, Gr 5
2шт.
7
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
8
F84647
TUBE - crank
1шт.
9
114-7
BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd
1шт.
10
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
1шт.
11
129-121
NUT,1/4"-28, G5
1шт.
11a
F22143
SPRING
1шт.
11b
132-93
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
12
F21928
BRACKET - lower
1шт.
13
175-410
SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- 5/16" x 3/4" N.C. truss hd. mach.
1шт.
14
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
15
9635082
NUT,5/16" - 18, Gr 5
1шт.
16
F84652
TUBE AND CLEVIS - reel crank
1шт.
BOLT - 1/4" x 7/8" N.F. hex. (114-7) nut (129-121)
1шт.
17
F84656
TUBE AND CLEVIS - upper
1шт.
18
45-524
RIVET - 5/16" x 1-1/2" rd. hd.
1шт.
19
193-92
LOCK WASHER,Int Tooth, 5/16"
SPRINGRIP
1шт.
20
F84654
TUBE AND CLEVIS - lower
1шт.
21
45-524
RIVET - 5/16" x 1-1/2" rd. hd.
1шт.
22
193-92
LOCK WASHER,Int Tooth, 5/16"
SPRINGRIP
1шт.
22a
F22146
CHAIN - safety
1шт.
SCREW - 5/16" x 3/4" N.C. truss hd. mach. (175-410) and nut (129-102)
1шт.
23
F84646
SCREW - adjusting crank
1шт.
24
132-91
COTTER PIN,3/16" x 1"
Pin, Split (Cotter), 3/16" x 1"
1шт.
25
195-33
WASHER,1/2"
- flat 1/2"
1шт.
26
F21917
BRACKET - anchor, ajusting screw
1шт.
27
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
2шт.
28
92-5
LOCK WASHER,5/16"
2шт.
29
25-115
NUT,5/16"-24, G5
- 5/16" NF hex
2шт.
30
F84643
BRACKET - pivot support
1шт.
31
114-105
BOLT,Hex, 5/16" - 24 x 5/8", Gr 5
2шт.
32
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
33
195-521
WASHER,5/16", SAE
- 5/16" flat
2шт.
34
129-122
NUT,5/16"-24, G5
2шт.
35
111-234
BOLT - 5/16" x 5/8" rhd. sq. nk.
2шт.
36
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
37
9635082
NUT,5/16" - 18, Gr 5
2шт.
38
O1385CS
PIN - pivot, support bracket
1шт.
39
195-25
WASHER,3/8"
- flat 3/8"
1шт.
40
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
41
F84644
BELLCRANK
1шт.
42
132-27
COTTER PIN,3/32" x 7/8"
Pin, Split (Cotter), 3/32" x 7/8"
2шт.
43
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Bellcrank 3/8" x 1.060"
1шт.
44
132-27
COTTER PIN,3/32" x 7/8"
Pin, Split (Cotter), 3/32" x 7/8"
1шт.
45
F22147
ROD - extension, 13 ft. header
1шт.
45
F22148
ROD - extension, 14 ft. header
1шт.
45
F22145
ROD - extension, 10 ft. header
1шт.
45a
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS - extension rod
1шт.
46
F21926
YOKE - bearing
1шт.
47
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Bearing yoke 3/8" x 1.060"
1шт.
48
132-27
COTTER PIN,3/32" x 7/8"
Pin, Split (Cotter), 3/32" x 7/8"
1шт.
49
F21927
BEARING
1шт.
50
F21922
JACKSHAFT - reel drive
1шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
52
195-104
WASHER,3/8"
- flat 3/8"
1шт.
53
F51909
WASHER - thrust, jackshaft
1шт.
54
G13609
THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W
BEARING, THRUST, Jackshaft
1шт.
55
F51641
WASHER
- thrust, jackshaft
1шт.
56
F84649
SPROCKET - (60T) reel drive, driven
1шт.
57
F1313
SHEAVE
HALF - reel drive (Ref. only - not part of att.)
1шт.
58
F21925
SPRING - reel drive sheaves
1шт.
59
F1572
SHEAVE HALF - reel drive (Ref. only - not part of att.)
1шт.
60
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" str.
1шт.
61
F62073
WASHER
- jackshaft
1шт.
62
A26949
RING, SNAP
SNAP RING - jackshaft
1шт.
63
F21923
KEY
- (1/4" x 5-1/4") reel drive, Serial Range: sheaves-jackshaft
1шт.
Выбрано товаров: 73
