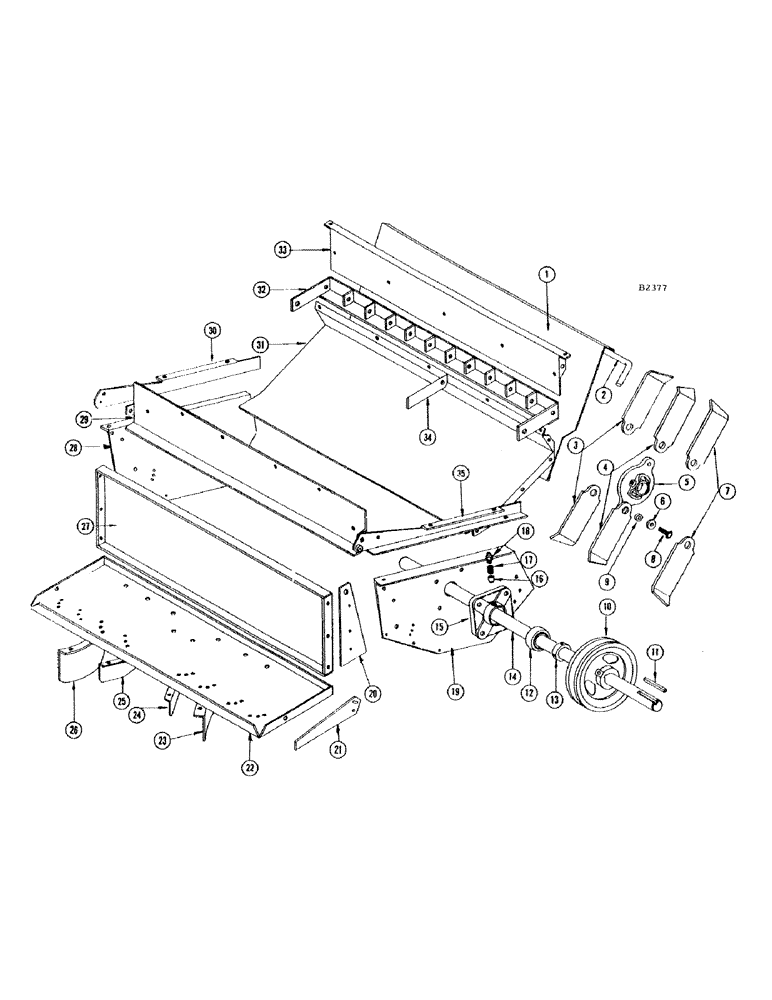

Запчасти Case IH 660 (218) - STRAWCHOPPER, CUTTER AND SPREADER HOUSING

1

F84608

SLIDE

- straw

1шт.

2

F19548

ROD - door

1шт.

PIN - cotter, 3/32" x 1/2" (132-24)

1шт.

WASHER - flat (195-521)

2шт.

3

F82876

HAMMER - (Pair of L.H.)

1шт.

4

F82874

HAMMERS - (Pair of R.H. and L.H.)

9шт.

5

F1599

HOLDER - hammer

11шт.

SCREW - 2/8" x 3/4" N.F. sq. hd. set (86-612) and jam nut (25-156)

22шт.

6

F19530

WASHER - for ref. 8 bolts

22шт.

7

F82875

HAMMERS - (Pair of R.H.)

1шт.

8

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex, ref. 5 holder

22шт.

NUT - 3/8" N.F. hex (25-116) L.W. (92-6)

22шт.

9

F19529

BUSHING - ref. 8 bolts

22шт.

10

F1694

SHEAVE - cutter drive, driven (On cutter shaft)

1шт.

SCREW - 3/8" x 1/2" N.C. socket hd. set (83-68)

2шт.

11

B18232

KEY

- ref. 10 sheave to cutter shaft

1шт.

12

F84274

BEARING

- cutter shaft

2шт.

13

F21378

COLLAR

1шт.

84-57

SCREW - 5/16" - 24 x 7/16" hex socket hd. set

2шт.

14

F19528

SHAFT - cutter

1шт.

15

F1695

HOUSING - bearing

2шт.

16

F21379

CARRIAGE BOLT

RETAINER - race

2шт.

17

F21380

SPRING - retainer

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- 1/2" x 1-1/4" N.C. hex

8шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

8шт.

92-8

LOCK WASHER,1/2"

8шт.

19

F13180

SIDE PANEL - R.H.

1шт.

BOLT - 1/2" x 1-1/4" N.C. hex (13-48) nut (25-108)

4шт.

20

F13184

PLATE - hinge, side panels

2шт.

BOLT - 5/16" x 1" N.C. hex (13-516) locknut (191-904)

8шт.

21

F13186

BRACE - for ref. 22 shield

2шт.

BOLT - 5/16" x 5/8" N.C. hex (113-118) nut (129-102)

2шт.

BOLT - 3/8" x 3/4" N.C. hex (113-206) nut (129-103)

2шт.

WASHER - 3/8" flat (195-525)

2шт.

22

F22019

SHIELD - deflector

1шт.

23

F13188

WING - (Long) deflector, R.H.

3шт.

SCREW - 1/4" x 1/2" N.C. truss hd. (175-400) nut (129-101)

6шт.

24

F19536

WING - (Short) deflector, R.H.

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (77-48) and nut (25-104) L.W. (92-4)

2шт.

25

F19535

WING - (Short) deflector, L.H.

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (77-48) and nut (25-104) L.W. (92-4)

2шт.

26

F13187

WING - (Long) deflector, L.H.

3шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (175-400) and nut (129-101) L.W. (192-19)

6шт.

27

F22018

REAR SHEET

1шт.

28

F13168

SIDE PANEL - L.H.

1шт.

BOLT - 1/2" x 1-1/4" N.C. hex (13-48) nut (25-108)

4шт.

29

F21900

PANEL - rear, mounted on rear hood

1шт.

BOLT - 5/16" x 5/8" N.C. hex (113-118) nut (129-102)

10шт.

30

F84606

PANEL - L.H., mounted on rear hood

1шт.

BOLT - 3/8" x 1" N.C. hex (113-207) nut (129-103)

2шт.

31

F22016

BOTTOM SHEET

1шт.

BOLT - 5/16" x 5/8" N.C. hex (13-510) locknut (191-904)

12шт.

32

F82872

FRAME - retarder knife

1шт.

BOLT - 1/2" x 1" N.F. hex (13-816) nut (25-108)

2шт.

BOLT - 3/8" x 3/4" N.C. hex (13-612) nut (25-106)

2шт.

WASHER - 3/8" flat (195-25) L.W. (92-6)

2шт.

33

F22017

FRONT SHEET

1шт.

BOLT - 5/16" x 5/8" N.C. hex (13-510) locknut (191-904)

4шт.

SCREW - 5/16" x 5/8" N.C. truss hd. mach. (77-510) and locknut (191-904)

9шт.

34

F19527

KNIFE

- retarder

10шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116)

10шт.

35

F84607

PANEL - R.H., mounted on rear hood

1шт.

BOLT - 3/8" x 3/4" N.D. hex (113-206) nut (129-103)

2шт.
