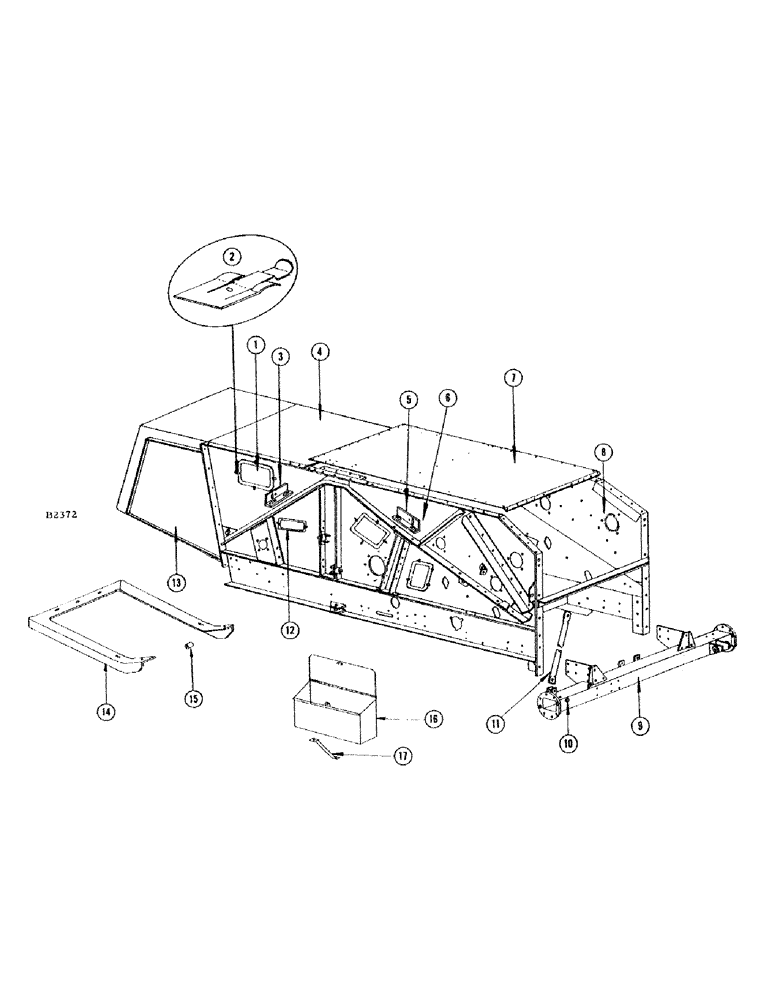

Запчасти Case IH 660 (212) - SIDE SHEETS AND DECK

1

F16580

DOOR - access (Rear, center, front and grain bin)

7шт.

2

F86525

CLIP

- spring, access doors

28шт.

RIVET - 3/16" x 4/16" semi-tubular (151-123)

28шт.

3

F19955

BRACKET - stiffener, grate tine pin, R.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

WASHER - 5/16" flat (195-21) L.W. (92-5)

2шт.

4

F91950

DECK - rear (#8334601 and after)

1шт.

4

F84885

DECK - rear, Serial Range: (#8309001-#8334601)

1шт.

4

F84302

DECK - rear (Before #8309001)

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

11шт.

BOLT - 1/4" x 5/8" N.F. hex (14-410) nut (25-114)

11шт.

BOLT - 5/16" x 1" N.F. hex (14-516) nut (25-115)

1шт.

5

F19954

BRACKET - stiffener, grate tine pin, L.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

WASHER - 5/16" flat (195-21) L.W. (92-5)

2шт.

6

F84880

SIDE SHEET - R.H. (Replaces F84297 when stocks are exhausted

1шт.

F84297

SIDE SHEET - R.H. (Replaced by F84880 when stocks are exhausted)

1шт.

F17425

SCREW

COLLAR - support, operator's platform (Bolts to R.H. side sheet) (Not shown)

2шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) nut (25-105)

5шт.

7

F16918

TOP DECK - front

1шт.

BOLT - 1/4" x 5/8" N.F. hex (14-410) nut (25-114)

6шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

8шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

8шт.

8

F84877

SIDE SHEET - L.H. (Replaces F84289 when stocks are exhausted)

1шт.

F84289

SIDE SHEET - L.H. (Replaced by F84877 when stocks are exhausted)

1шт.

9

F83969

AXLE

- front (Manual steering)

1шт.

BOLT - 1/2" x 7/8" N.C. hex (13-830) L.W. (92-8)

4шт.

F83829

AXLE - front (Hydrostatic steering)

1шт.

BOLT - 1/2" x 7/8" N.C. hex (13-830) L.W. (92-8)

4шт.

10

F17749

DOWEL

- drop box

4шт.

11

F82547

BRACE - body, R.H.

1шт.

BOLT - 5/8" x 2" N.F. hex (14-1032) nut (25-1110)

2шт.

12

F8077

DOOR - access, rear

2шт.

13

F84420

REAR HOOD

1шт.

BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)

17шт.

BOLT - 1/4" x 3/4" N.F. hex (114-5) nut (129-121)

4шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)

2шт.

BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121)

9шт.

14

F21875

CARRIAGE BOLT

REINFORCEMENT - rear hood, lower (Bagging platform combines only)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (114-102) nut (129-122)

9шт.

15

O8529HT

SPACER - for ref. 14 reinforcement (Used only when F16705 paddle guard is used)

2шт.

16

F84380

TOOL BOX

1шт.

17

F20294

BRACE - support

2шт.

BOLT - 5/16" x 5/8" N.F. hex (14-510) nut (25-115)

4шт.
