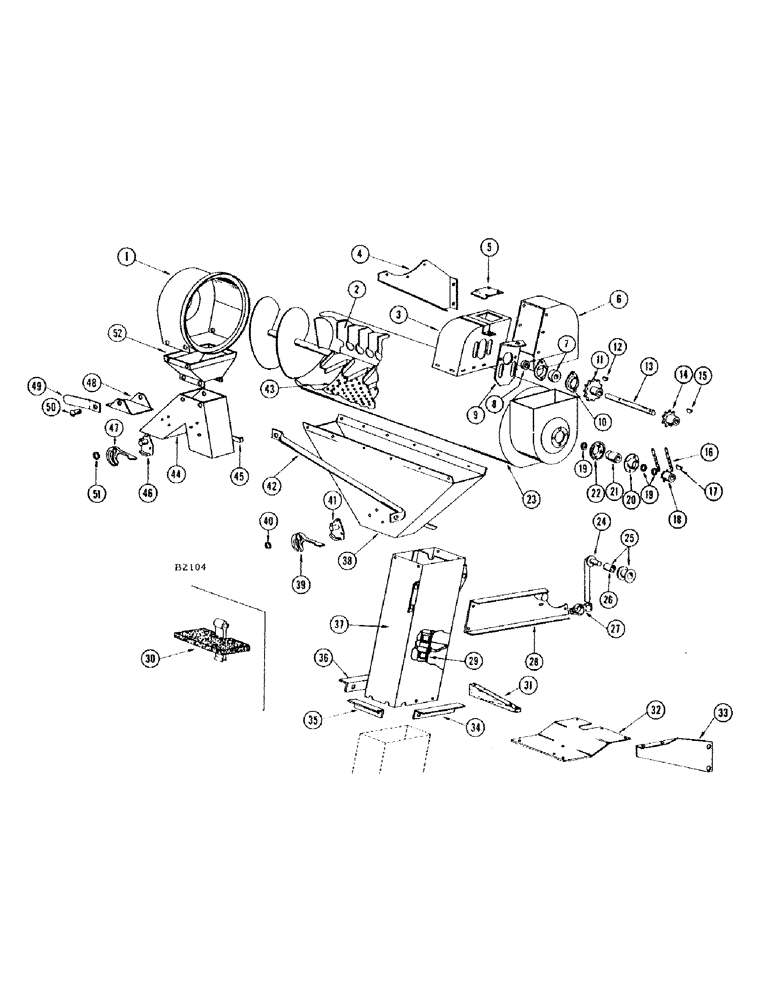

Запчасти Case IH 660 (208) - SCOURKLEEN ATTACHMENT, BAGGER COMBINES

1

F83400

DRUM - discharge

1шт.

SCREW - #14 x 3/4" tapping (187-149) speed nut (131-109)

4шт.

SCREW - 1/4" x 7/8" N.C. mach. (68-414) L.W. (92-5)

3шт.

NUT - 5/16" wing (129-405)

3шт.

2

F83406

ROTOR BLADE

1шт.

3

F83379

HEAD - grain elevator

1шт.

BOLT - 5/16" x 2-1/2" N.C. hex full thread (13-540) and dbl. nut (25-105)

2шт.

4

F83402

BRACKET - support, discharge end

1шт.

SCREW - 1/4" x 5/8" N.C. fl. hd. mach. (73-410) nut (25-104)

3шт.

BOLT - 1/4" x 3/4" N.C. hex (13-412) nut (25-104) and L.W. (92-4) fl. wshr. (95-4)

1шт.

5

F20341

DOOR - clean-out

1шт.

SCREW - #10 x 1/2" metal (187-329) speed nut (131-135)

2шт.

6

F83404

SPOUT - elevator discharge

1шт.

BOLT - 1/4" x 1/2" N.C. hex (13-48) nut (25-104) and L.W. (92-4) fl. wshr. (95-4)

6шт.

7

F90306

BEARING ASSY

BEARING - upper shaft

2шт.

8

O4233CS

COLLAR

1шт.

9

F17592

BRACKET - adjusting, upper elevator shaft

2шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) nut (25-104) and L.W. (92-4) fl. wshr. (95-4)

4шт.

10

F9417

FLANGE

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

4шт.

11

51B

SPROCKET ASSY.

SPROCKET - (7T) grain elevator upper shaft

1шт.

PIN - cotter, 3/16" x 2" (132-99)

1шт.

12

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 11 sprocket to upper shaft #A, 1/4" x 7/8", HT

1шт.

13

F20350

SHAFT - upper, grain elevator

1шт.

14

F1653

SPROCKET ASSY.

SPROCKET - (20T) drives ScourKleen

1шт.

SCREW - 3/8" x 5/8" N.C. hex hd. set (85-610)

1шт.

15

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 14 sprocket to upper shaft #A, 1/4" x 7/8", HT

1шт.

16

F20353

X

CHAIN - ScourKleen drive (NSS - see page 7)

1шт.

17

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Ref. 18 sprocket to rotor shaft #15, 1/4" x 1", HT

1шт.

18

F1654

SPROCKET - (14T) drives rotor shaft, driven

1шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. set (85-610)

1шт.

19

F20286

WASHER

- on rotor shaft

5шт.

20

F20336

RETAINER - outer, bearing ref. 21

2шт.

SCREW - 1/4" x 1/2" N.C. mach. (68-48) nut (25-104)

8шт.

21

F4347

BEARING

- (Wood) on rotor shaft

2шт.

22

F20337

RETAINER - inner, bearing ref. 21

2шт.

23

F83398

HOUSING - main

1шт.

SCREW - #14 x 3/4" type "A" metal (187-149) and speed nut (131-136)

4шт.

24

F83371

ARM - chain tightener

1шт.

25

F83368

ROLLER

1шт.

26

F4345

BUSHING

1шт.

WASHER - 1/2" flat (95-8) for ref. 24 arm

1шт.

PIN - cotter, 1/8" x 1" (132-48) ref. 24 arm

1шт.

27

F1648

CLAMP - collar, on chain tightener arm

1шт.

BOLT - 5/16" x 1-3/4" N.F. hex (14-528) nut (25-115)

1шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. set (85-610)

1шт.

28

F83401

BRACKET - support, intake end

1шт.

29

F83395

X

EXTENSION - grain elevator chain and flights (Use (2) F86419, (1) F86423 and (1) 235-83 coupler link)

1шт.

30

F79799

RUBBER FLIGHT

FLIGHT - (Rubber) extension chain (Includes F11165 flight, 1-235-65 att. link, (2) #55 plain links and 2-151-135 rivets)

14шт.

F86419

CHAIN AND FLIGHTS - (Consists of chain with 2 flights) (Not shown)

2шт.

F86423

CHAIN (AG)

CHAIN AND FLIGHTS - (Consists of chain with 10 flights) (Not shown)

1шт.

31

F19428

BLOCK - spacer, standard grain elevator support

1шт.

32

F19430

PLATE - attaching, standard grain elevator (Used in place of F17696 with ScourKleen attachment)

1шт.

33

F19429

BRACKET - support, standard grain elevator (Used in place of F17695 with ScourKleen attachment)

1шт.

34

F20346

ANGLE - R.H. side, for elevator extension tube

1шт.

35

F20345

ANGLE - rear, for elevator extension tube

1шт.

36

F20347

ANGLE - L.H. side, for elevator extension tube

1шт.

37

F83403

TUBE - elevator extension

1шт.

38

F83405

CHUTE - weed seed

1шт.

39

F1650

LEVER

1шт.

40

A26411

WASHER

1шт.

41

F1651

BRACKET

1шт.

SCREW - #10 x 1/2" type "A" metal (187-329) and speed nut (131-121) for ref. 38

8шт.

PIN - cotter, 3/16" x 1" (132-91) for ref. 41

1шт.

42

F20356

BRACE - ScourKleen housing to R.H. side platform rail

1шт.

43

F83260M

SCREEN - (.165" triangular hole) Standard (See screens, extra)

1шт.

44

F83397

SPOUT - twin sacker

1шт.

45

F20355

BAR - twin sacker spout

2шт.

46

F1651

BRACKET

2шт.

47

F1650

LEVER

2шт.

48

F83396

VALVE

1шт.

49

F20351

LEVER

1шт.

50

F20352

PIN

1шт.

51

A26411

WASHER

2шт.

SCREW - #10 x 1/2" type "A" metal (187-329) and speed nut (131-121) for ref. 44

5шт.

WASHER - 3/8" flat (95-6) for ref. 44

2шт.

SCREW - 1/4" x 1/2" N.C. mach. (68-48) nut (25-104) and L.W. (92-4) for ref. 45

4шт.

PIN - cotter, 3/16" x 1" (132-91) for ref. 46

2шт.

PIN - cotter, 1/8" x 1" (32-48) for ref. 50

1шт.

52

F83399

ADAPTER - sacker spout

1шт.
