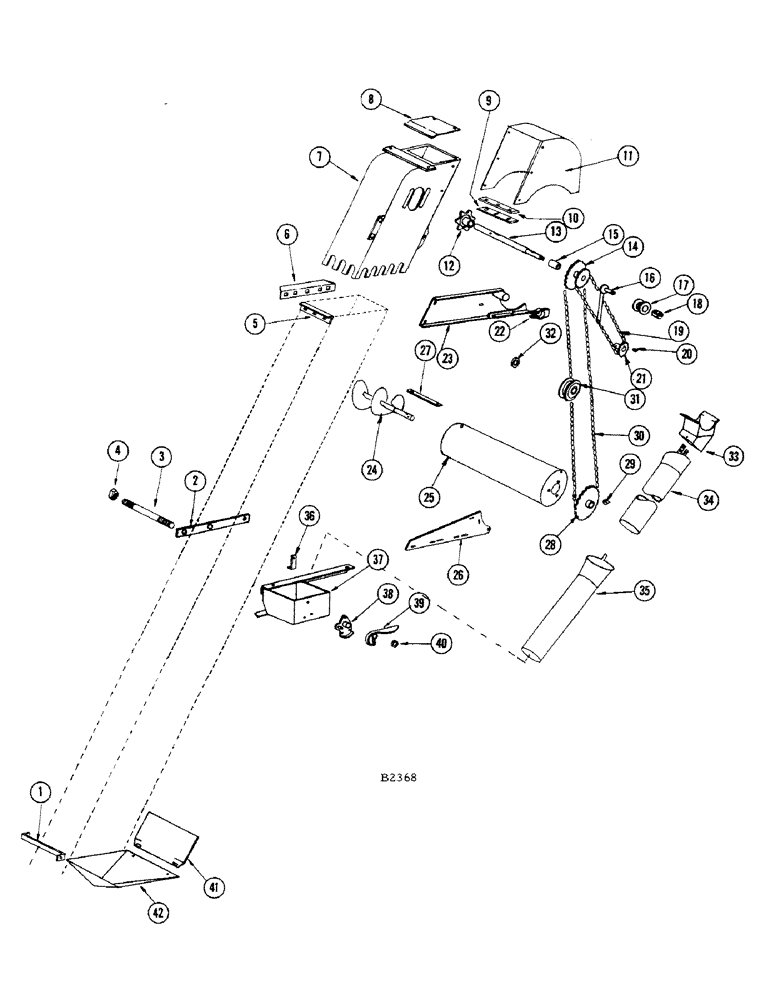

Запчасти Case IH 660 (200) - SCOURKLEEN ATTACHMENT, ELEVATOR EXTENSION AND DRIVE, 660 SPECIAL COMBINE

1

F22162

CLAMP - rear, bag box

1шт.

BOLT - 5/16" x 1" N.C. hex (13-516) nut (25-105)

1шт.

2

F22163

BAR - rear clamp, bag holder

1шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

2шт.

3

F84866

TIE ROD - bag holder

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

5

F20373

ANGLE - rear

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

3шт.

6

F20375

ANGLE - L.H. side

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

5шт.

7

F84871

HEAD - grain elevator

1шт.

SCREW - #10 x 1/2" type "A" metal (187-329) and Tinnerman nut (131-121) for door

2шт.

SCREW - 1/4" x 5/8" N.C. rhd. mach. (168-410) nut (25-104) and L.W. (92-4) for plate

3шт.

8

F20361

DOOR - clean-out

1шт.

9

F20372

STRIPPER - (3-ply rubber)

1шт.

10

F20362

COVER - plate

1шт.

11

F84872

SPOUT - elevator discharge

1шт.

BOLT - 1/4" x 1/2" N.C. hex (13-48) nut (25-104)

6шт.

LOCKWASHER - 1/4" (92-4) fl. wshr. (95-4)

6шт.

12

51B

SPROCKET ASSY.

SPROCKET - (7T) grain elevator, upper shaft (Standard - not part of attachment)

1шт.

KEY - "A" Woodruff (126-121)

1шт.

PIN - cotter, 3/16" x 2" (132-99)

1шт.

13

F21625

SHAFT - upper, grain elevator (Standard - not part of attachment)

1шт.

14

F84770

SPROCKET - (20T and 30T dbl.) drives ScourKleen

1шт.

KEY - "A" Woodruff (126-121)

1шт.

14

F84868

SPROCKET - (30T and 38T dbl.) drives ScourKleen, slow speed

1шт.

KEY - "A" Woodruff (126-121)

1шт.

15

F11042

BEARING

BUSHING

1шт.

16

F84779

ARM - chain tightener roller

1шт.

WASHER - 1/2" slat (95-8)

1шт.

PIN - cotter, 1/8" x 1" (132-48)

1шт.

17

F83368

ROLLER - chain tightener

1шт.

18

F4345

BUSHING

1шт.

19

F84867

X

CHAIN - ScourKleen drive (NSS - see page 7)

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Ref. 21 sprocket to rotor shaft #15, 1/4" x 1", HT

1шт.

21

F22067

SPROCKET - (15T) drives rotor shaft, driven

1шт.

SCREW - 3/8" x 5/8" sq. hd. set screw

1шт.

22

F1648

CLAMP - collar, on chain tightener arm

1шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. set (85-610)

1шт.

23

F84869

BRACKET - support, for chain tightener

1шт.

SCREW - 1/4" x 5/8" N.C. fl. mach. (73-410) nut (25-104)

3шт.

24

F84405

AUGER - leveling, grain bin F84353 (Standard - not part of attachment)

1шт.

24

F84409

AUGER - leveling, grain bin F84347 (Standard - not part of attachment)

1шт.

25

F84870

TUBE - leveling auger

1шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

2шт.

26

F22164

BRACKET - support, auger tube

1шт.

SCREW - 1/4" x 5/8" N.C. fl. hd. mach. (73-410) nut (25-104)

3шт.

NUT - 1/4" N.C. Tinnerman (131-135)

3шт.

27

F22161

TIE BAR - leveling auger tube

1шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

2шт.

28

F84910

SPROCKET - (44T) driven leveling auger (Standard - not part of attachment - #8309001 and after)

1шт.

28

F84398

SPROCKET - (22T) driven, leveling auger (Standard - not part of attachment - before #8309001)

1шт.

PIN - cotter, 3/16" x 1-1/2" (132-95)

1шт.

29

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 28 sprocket to leveling auger #A, 1/4" x 7/8"

1шт.

30

O3582BF

X

CHAIN - elevator drive (NSS - see page 7)

1шт.

31

O3511CS

PULLEY

- idler (Standard - not part of attachment)

1шт.

BOLT - 1/2" x 3" rhd. sh. sq. nk. (12-848) nut (25-108)

1шт.

WASHER - 1/2" flat (195-33)

1шт.

32

F22074

WASHER - idlery pulley

4шт.

33

F83377

DOWNSPOUT - for weed seed tubes

1шт.

SCREW - 3/16" x 3/8" N.C. rhd. mach. (173-92) L.W. (92-3)

4шт.

34

F83383

TUBE - upper, weed seed

1шт.

SCREW - 1/4" x 5/8" N.C. rhd. mach. (68-410) nut (25-104) and Tinnerman nut (131-109)

1шт.

LOCKWASHER - 1/4" (92-4)

2шт.

35

F84873

TUBE - lower, weed seed

1шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

2шт.

36

F22064

BRACKET - attaching, lower weed seed tube to bag holder

1шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

2шт.

37

F84863

HOLDER - bag

1шт.

38

F1651

BRACKET

1шт.

PIN - cotter, 3/16" x 1" (132-91)

1шт.

39

F1650

LEVER

1шт.

40

A26411

WASHER

- ref. 39

1шт.

41

F20340

SHIELD - front

1шт.

SCREW - 1/4" x 5/8" N.C. mach. (68-410) nut (25-104)

2шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

2шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

4шт.

42

F83370

BOX - bag

1шт.

BAG - 1/4" x 1" N.C. hex (13-416) nut (25-104)

2шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

2шт.
