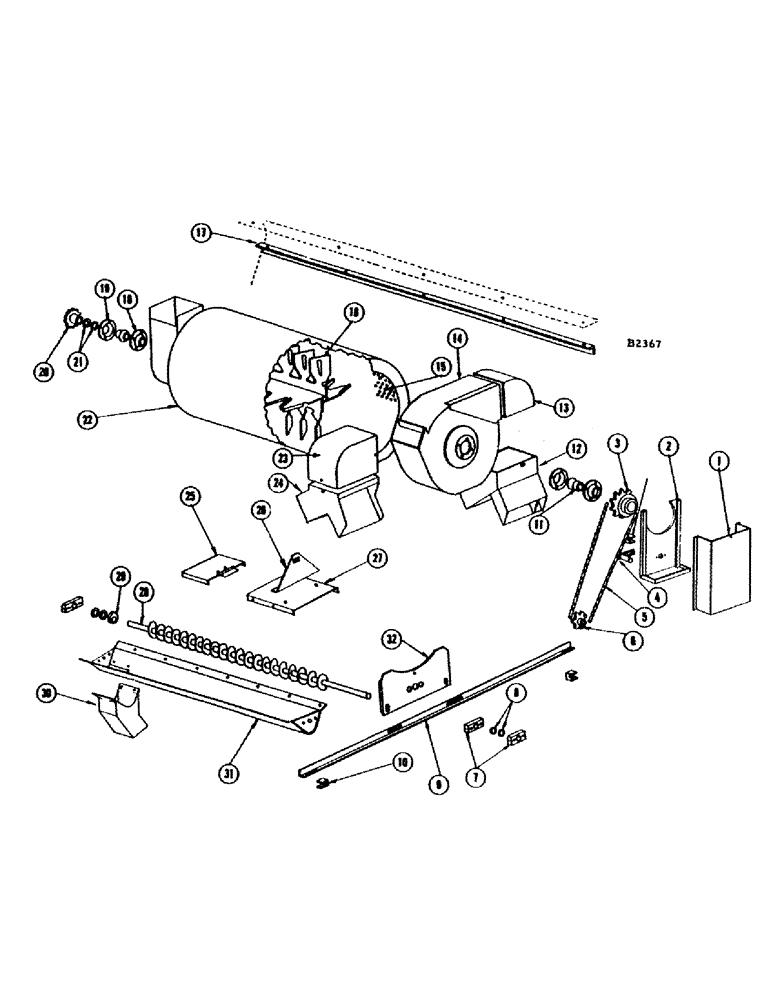

Запчасти Case IH 660 (196) - SCOURKLEEN ATTACHMENT, GRAIN BIN COMBINES, BEFORE NUMBER 8357001

1

F12368

FRONT SHEET - chain shield

1шт.

2

F83499

SHIELD - weed seed auger drive chain

1шт.

3

F1391

SPROCKET - (9T) on discharge end of rotor shaft, drives weed seed auger

1шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. set (85-610)

2шт.

4

F83373

TIGHTENER - chain

1шт.

SCREW - 1/4" x 3/4" N.C. mach. (68-412) nut (25-104)

1шт.

LOCKWASHER - 1/4" (92-4) fl. wshr. (95-4)

1шт.

5

B15926

LINK

- #25 steel chain, weed seed auger drive chain

31шт.

6

F1649

SPROCKET - (12T) weed seed auger, driven

1шт.

PIN - cotter, 3/16" x 1-1/2" (132-95)

1шт.

7

F4346

BEARING - (Wood) auger shaft

2шт.

SCREW - 1/4" x 3/4" N.C. truss hd. mach. (187-947)

2шт.

8

A26411

WASHER

- auger shaft

4шт.

9

F83389

ANGLE - support

1шт.

BOLT - 5/16" x 3/4" N.C. hex (13-512) nut (25-105)

2шт.

WASHER - 5/16" flat (95-5)

4шт.

10

F20349

"U" CLAMP - support angle, at both ends

2шт.

BOLT - 5/16" x 1-3/4" N.C. hex (13-528) nut (25-105)

2шт.

11

F4347

BEARING

- (Wood) on rotor shaft

2шт.

12

F83382

CHUTE - front, grain discharge

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-93) nut (129-7)

4шт.

13

F83376

ELBOW - at discharge end

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-92) nut (129-7)

3шт.

14

F83378

DRUM - discharge

1шт.

SCREW - 1/4" x 3/4" N.C. mach. (68-412) L.W. (92-4)

3шт.

NUT - 5/16" wing (129-405)

3шт.

15

F83260M

SCREEN - (.165" triangular hole) Standard (See screens, extra)

1шт.

16

F83500

ROTOR BLADE

2шт.

17

F20344

REINFORCEMENT - front and rear top, grain bin rim

2шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

8шт.

LOCKWASHER - 1/4" (92-4) fl. wshr. (95-4)

8шт.

18

F20337

RETAINER - inner, bearing

2шт.

19

F20336

RETAINER - outer, bearing

2шт.

SCREW - 1/4" x 1/2" N.C. mach. (68-48) nut (25-104)

8шт.

20

F22067

SPROCKET - (15T) drives rotor shaft, driven

1шт.

SCREW - 3/8" x 5/8" sq. hd. set (85-610)

1шт.

21

F20286

WASHER

- rotor shaft

10шт.

22

F83374

HOUSING - main

1шт.

SCREW - #14 x 3/4" metal (187-149) speed nut (131-136)

4шт.

23

F83376

ELBOW - at discharge end, ref. 24 chute

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-92) nut (129-7)

3шт.

24

F83385

CHUTE - rear, grain discharge

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-92) nut (129-7)

4шт.

25

F84774

DOOR - auger trough

1шт.

SCREW - #10 x 1/2" metal (187-329) Tinnerman nut (131-135)

4шт.

26

F20439

BRACKET - stiffener, auger trough cover

1шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (25-104)

3шт.

27

F22072

COVER - auger trough

1шт.

SCREW - 3/16" x 3/8" N.C. hex hd. (173-92) L.W. (92-3)

6шт.

28

F84769

AUGER - weed seed

1шт.

29

F1647

COLLAR - set, auger shaft

1шт.

SCREW - 3/8" x 1/2" sq. hd. set (85-68)

1шт.

30

F83377

DOWNSPOUT - for weed seed tubes

1шт.

SCREW - 3/16" x 3/8" N.C. rhd. mach. (173-92) L.W. (92-3)

4шт.

31

F84773

TROUGH - weed seed auger

1шт.

SCREW - #10 x 1/2" type "A" metal (187-329) and Tinnerman nut (131-121)

8шт.

32

F20343

BRACKET - support, at discharge end

1шт.

SCREW - 1/4" x 5/8" N.C. fl. hd. mach. (73-410) nut (25-104)

3шт.

BOLT - 5/16" x 3/4" N.C. hex (13-512) nut (25-105)

3шт.

WASHER - 5/16" flat (95-5)

6шт.
