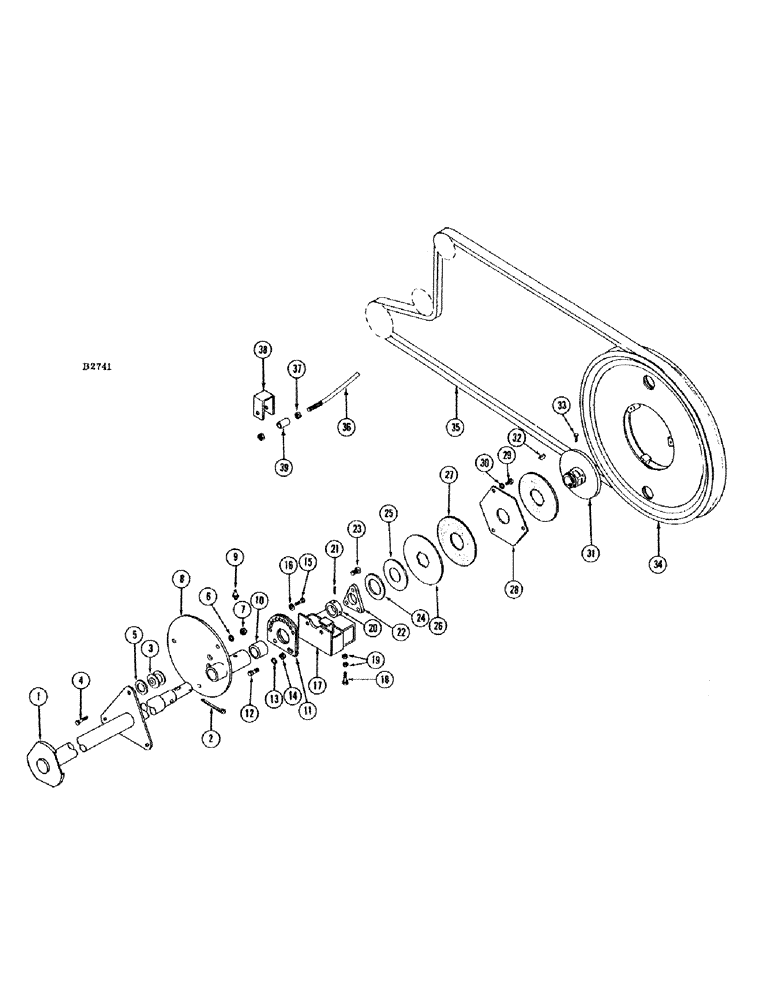

Запчасти Case IH 660 (019C) - HART, CARTER PICKUP REEL DRIVE
№
Артикул
Название
Примечание
Количество
1
F94169
SHAFT - drive end
1шт.
2
132-99
COTTER PIN,3/16" x 2"
Pin, Split (Cotter), 3/16" x 2"
1шт.
3
F53435
BEARING
ROLLER - bearing
6шт.
4
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
6шт.
5
F53438
WASHER - drive shaft
6шт.
6
92-6
LOCK WASHER,3/8"
6шт.
7
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
6шт.
8
F94161
FRAME - eccentric - roller
2шт.
9
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" straight
1шт.
10
F53443
BEARING
2шт.
11
F94171
PLATE - eccentric adjusting
2шт.
12
13-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd
4шт.
13
92-7
LOCK WASHER,7/16"
4шт.
14
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex.
4шт.
15
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
16
92-8
LOCK WASHER,1/2"
2шт.
17
F94170
BRACKET - eccentric adjusting
2шт.
18
85-820
SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"
SCREW - 1/2" x 1-1/4" N.C. sq. hd. set
2шт.
19
25-148
JAM NUT,Jam, 1/2"-13, G5
- 1/2" NC hex jam
4шт.
20
F53439
COLLAR
2шт.
21
178-816
SCREW - 3/8" x 1/4" cup pt. socket hd. set
4шт.
22
F2187
NUT - adjusting
1шт.
23
85-816
SET SCREW,Sq Hd, 1/2"-13 x 1"
SCREW - 1/2" x 1" N.C. sq. hd. cup pt. set
3шт.
24
F53449
WASHER
1шт.
25
F53446
WASHER - spring
5шт.
26
F53447
WASHER - split flat
1шт.
27
F53448
WASHER - friction
2шт.
28
F53445
WASHER - friction plate
1шт.
29
61-510
HEX SOC SCREW,5/16"-18 x 5/8"
SCREW - 5/16" x 5/8" N.C. socket head cap
3шт.
30
92-5
LOCK WASHER,5/16"
3шт.
31
F2188
HUB - slip clutch
1шт.
32
126-25
WOODRUFF KEY,#B, 5/16" x 1"
KEY - 5/16" x 1" Woodruff
1шт.
33
83-56
SET SCREW,Hex Soc, 5/16"-18 x 3/8"
SCREW - 5/16" x 3/8" N.C. socket head set
2шт.
34
F94177
SHEAVE - slip clutch
1шт.
35
O4402CS
V-BELT 170.00" L, Reel drive 170.00" L
1шт.
36
F53451
STRIPPER - reel drive belt
1шт.
37
131-168
LOCK NUT,1/2"-20, GA
LOCKNUT - 1/2" N.F. hex.
2шт.
38
F53450
BRACKET - stripper mounting
1шт.
39
O2585AB
SPACER - belt stripper (Not used with hydraulic reel lift arm)
1шт.
Выбрано товаров: 39
