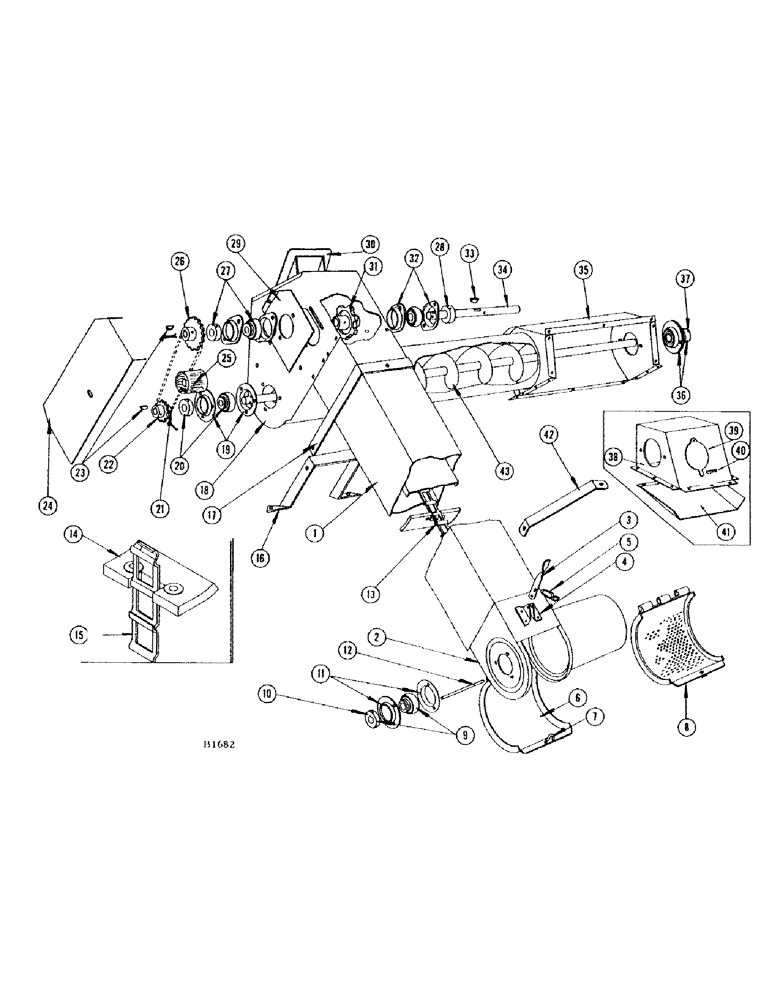

Запчасти Case IH 660 (188) - TAILINGS ELEVATOR, BEFORE NUMBER 8357001

1

F91838

X

BODY - tailings elevator (Replaces F84384 when stocks are exhausted)

1шт.

1

F84834

KIT

BODY - tailings elevator (Replaced by F91838 when stocks are exhausted)

1шт.

2

F84585

KIT - repair, lower head

1шт.

3

O313CS

HANDLE - latch

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

4

O314CS

BRACKET - handle

2шт.

49-37

RIVET - 3/16" x 7/16" W.B. hd.

4шт.

5

O316CS

SPRING - latch handle

1шт.

6

F78417

DOOR - lower head, hinged type (See F83950)

1шт.

F83950

DOOR - lower head

1шт.

7

O315CS

HOOK - latch for lower door

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sh. sq. nk.

11шт.

25-104

NUT,1/4"-20, G5

11шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

8

F82225

DOOR - lower head (Special - perforated) (Can be used in place of F78417)

1шт.

9

F90306

BEARING ASSY

BEARING - L.H. end of auger shaft

1шт.

10

O4233CS

COLLAR

1шт.

11

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

3шт.

92-5

LOCK WASHER,5/16"

3шт.

12

O309CS

PIN - hinge, lower head door

1шт.

13

F82402

X

CHAIN AND FLIGHTS - (NSS - Use (1) F79799 flight, (1) F86423 and (1) F86425)

1шт.

14

F79799

RUBBER FLIGHT

FLIGHT - rubber (Includes F11165 flight, 1-235-65 att. link, 2-235-11 plain links and 2-151-128 rivets)

1шт.

15

F86423

CHAIN (AG)

CHAIN AND FLIGHTS - (Consists of chain and 10 flights)

1шт.

15

F86425

CHAIN (CE)

CHAIN AND FLIGHTS - (Consists of chain and 20 flights)

1шт.

16

F17110

BRACKET - elevator support

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

F17113

SHARE

STRAP - upper support

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

F84383

HEAD - upper

1шт.

F86525

CLIP

- door

1шт.

151-123

RIVET - 3/16" x 4/16" semi-tubular

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sh. sq. nk.

9шт.

25-104

NUT,1/4"-20, G5

9шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

19

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

3шт.

92-5

LOCK WASHER,5/16"

3шт.

20

F94134

HOUSING ASSY.

BEARING - L.H. end of discharge auger

1шт.

F52076

COLLAR

1шт.

21

F7904

X

CHAIN - discharge auger drive (NSS - see chain page)

1шт.

22

F76947

SPROCKET - (15T) discharge auger drive, driven

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

23

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Drive and driven sprockets #A, 1/4" x 7/8"

2шт.

24

F84217

SHIELD - chain

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

F4718

BLOCK - tightener

1шт.

11-660

BOLT - 3/8" x 3-3/4" rhd. sq. nk.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

95-6

WASHER,3/8"

- flat and lockwasher (92-6) 3/8"

1шт.

26

F76981

SPROCKET - (22T) tailings discharge auger drive

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

27

F94134

HOUSING ASSY.

BEARING - upper shaft

2шт.

28

F52076

COLLAR

1шт.

29

F16438

BRACKET - bearing adjustment

2шт.

114-112

BOLT - 5/16" x 2-1/2" N.F. hex full thread

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

30

F83602

DOOR - inspection

1шт.

31

51B

SPROCKET ASSY.

SPROCKET - (7T) upper shaft

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

32

F9417

FLANGE

4шт.

12-512

BOLT

- 5/16" x 3/4" rhd. sh. sq. nk.

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

92-5

LOCK WASHER,5/16"

4шт.

33

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 31 sprocket #A, 1/4" x 7/8", HT

1шт.

34

F6571

SHAFT - upper

1шт.

35

F81603

HOUSING - tailings return (Grain combine) (See ref. 38)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

7шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

7шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

36

F78749

COLLAR

BEARING - discharge auger, R.H. end

1шт.

37

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

92-5

LOCK WASHER,5/16"

2шт.

38

F82870

HOUSING - tailings return (660 special combine)

1шт.

39

O998TS

DOOR - hand hole

1шт.

49-46

RIVET - 1/4" x 3/8" W.B. hd.

1шт.

122-13

GROMMET

BURR - 1/4" rivet

1шт.

40

O1830TS

CLIP - door

1шт.

49-38

RIVET

- 3/16" x 1/2" W.B. hd.

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

9шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

9шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

41

F19507

BOTTOM - housing (660 special combine)

1шт.

14-46

BOLT - 1/4" x 3/8" N.F. hex

3шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

3шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

42

F21601

STRAP - lower support

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sh. sq. nk.

1шт.

25-104

NUT,1/4"-20, G5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

F84386

AUGER - tailings discharge (Grain combine)

1шт.

43

F84390

AUGER - tailings discharge (660 special combine)

1шт.
