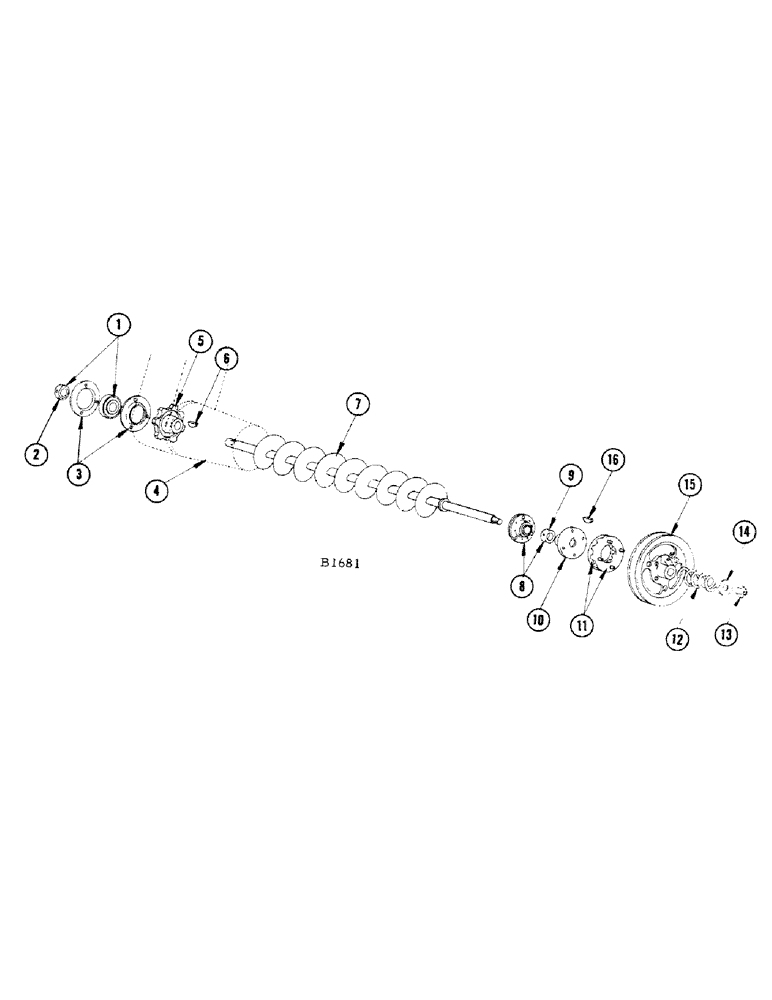

Запчасти Case IH 660 (186[A]) - TAILINGS AUGER

1

F90306

BEARING ASSY

BEARING - L.H. end, auger shaft

1шт.

2

O4233CS

COLLAR

1шт.

3

B18282

FLANGE

2шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) nut (25-105) and L.W. (92-5)

3шт.

4

F84585

HEAD - lower (Reference only - see tailings elevator)

1шт.

5

51B

SPROCKET ASSY.

SPROCKET - (7T) drives tailings elevator

1шт.

PIN - cotter, 3/16" x 1-3/4" (132-97)

1шт.

6

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 5 sprocket to auger shaft #A, 1/4" x 7/8", HT

1шт.

7

F84385

AUGER - tailings

1шт.

8

F78749

COLLAR

BEARING - auger shaft, R.H. end

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) and l.w. (92-5)

2шт.

9

F52076

COLLAR

1шт.

10

143CS

PLATE

HUB - jump clutch

1шт.

11

T16665

RING - jump clutch

2шт.

12

O1090CH

SPRING

- jump clutch

1шт.

13

131-37

LOCK NUT,3/4"-16

NUT - NF, Esna, elastic stop for Ref 7 auger 3/4"-16

1шт.

14

A26376

WASHER

- spring

1шт.

15

F1462

SHEAVE - drives tailings auger, driven

1шт.

FITTING - grease 1/8" - 45 degree (219-36)

1шт.

16

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 10 hub to auger shaft #A, 1/4" x 7/8", HT

1шт.
