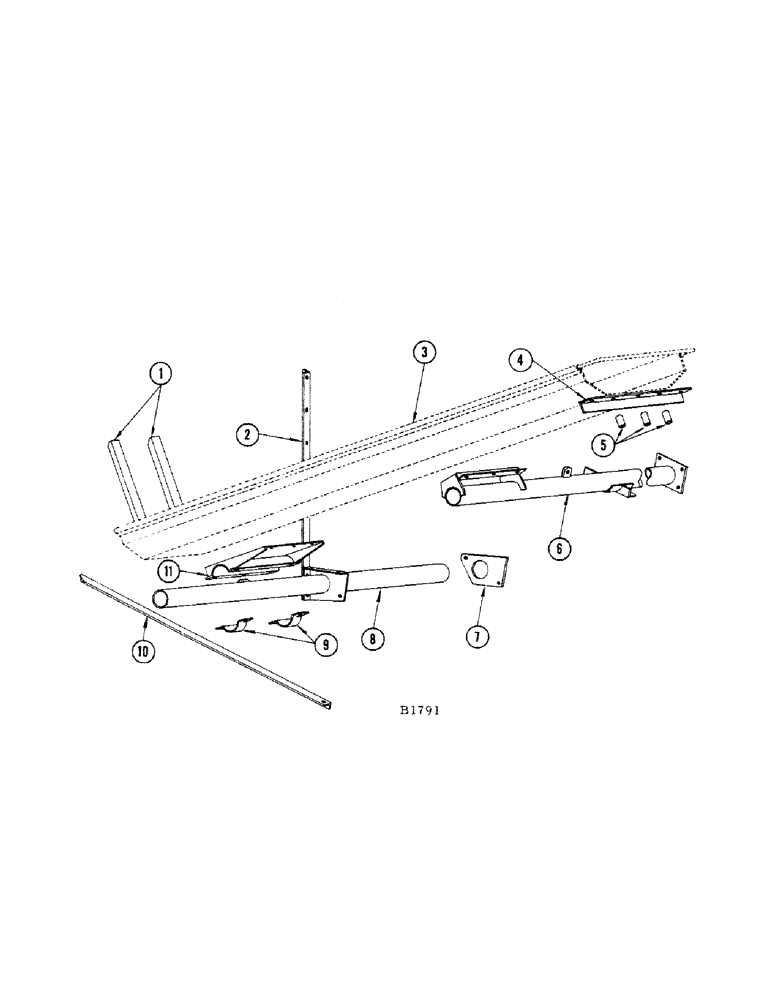

Запчасти Case IH 660 (184[A]) - BRACES FOR BAG CHUTE

1

F77328

EXTENSION - bag chute end gate

2шт.

2

F18875

REINFORCEMENT - rear hood front angle

1шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)

2шт.

3

F82668

BAG CHUTE - with bail

1шт.

4

F8751

ANGLE - upper, bag chute

1шт.

BOLT - 3/8" x 7/8" N.F. hex (114-218) nut (129-123)

2шт.

SCREW - 3/8" x 2-3/4" N.C. mach. (171-225) nut (129-103)

3шт.

5

H3005S

SPACER - for ref. 4 screw (171-225)

6шт.

6

F82651

SUPPORT - upper, bag chute

1шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)

4шт.

BOLT - 7/16" x 1" N.F. hex (114-301) nut (129-124)

2шт.

7

F18928

BRACKET - R.H., lower support pipe (Bolts to rear axle support tube)

1шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)

2шт.

8

F82652

SUPPORT - lower, bag chute

1шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)

1шт.

BOLT - 5/16" x 7/8" N.F. hex (114-101) nut (129-122)

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex (114-100) nut (129-122)

1шт.

9

F18929

CLAMP - lower support bracket

2шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)

4шт.

10

F21876

CARRIAGE BOLT

BRACE - lower support, bag chute

1шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)

2шт.

11

F82669

BRACKET - lower support

1шт.

SCREW - 3/8" x 7/8" N.C. rhd. mach. (73-614) nut (25-106)

6шт.
