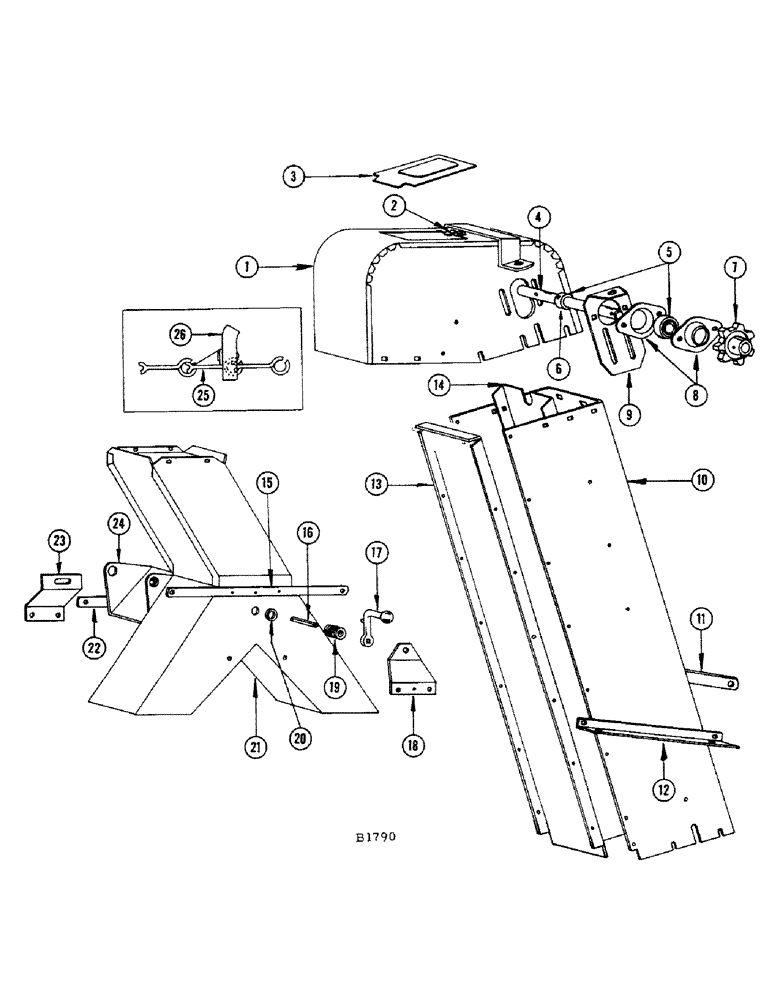

Запчасти Case IH 660 (182) - INLET ELEVATOR

1

F82655

HOUSING - grain inlet elevator

1шт.

2

F7738

CLIP - door

1шт.

RIVET - 3/16" x 8/16" split steel (151-196)

1шт.

BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)

4шт.

3

F17108

DOOR - inlet elevator housing

1шт.

4

F6571

SHAFT - upper, inlet elevator

1шт.

5

F90306

BEARING ASSY

BEARING - upper shaft

2шт.

6

O4233CS

COLLAR

1шт.

7

51B

SPROCKET ASSY.

SPROCKET - (7T) upper shaft

1шт.

KEY - "A" Woodruff (126-121)

1шт.

PIN - cotter, 3/16" x 1-3/4" (132-97)

1шт.

8

F9417

FLANGE

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

4шт.

9

F17592

HOLDER - bearing

2шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

4шт.

BOLT - 5/16" x 2-1/2" N.C. hex (113-106) dbl. jam nut (25-145)

2шт.

WASHER - 1/4" flat (195-4)

4шт.

10

F18887

EXTENSION - wrapper, inlet elevator

1шт.

BOLT - 1/4" x 1/2" rhd. short sq. nk. (111-118) nut (129-101)

8шт.

BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)

2шт.

WASHER - 1/4" flat (195-102)

8шт.

11

F18909

STRAP - upper bracket, grain elevator

1шт.

BOLT - 5/16" x 5-3/4" N.F. hex (114-119) nut (129-122)

2шт.

12

F18908

BRACKET - upper, grain elevator (Bolts to ref. 3 page 168)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (114-102) nut (129-122)

1шт.

13

F18889

FLOOR - extension, grain elevator inlet

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

14шт.

WASHER - 1/4" flat (195-4)

2шт.

14

F18888

DIVIDER - extension, elevator inlet

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

10шт.

15

O2031CS

STRAP - rack holder chain

1шт.

RIVET - 1/8" x 5/8" rhd. (45-210) burr (122-3)

3шт.

16

O672CW

PIN - sacker, valve

1шт.

PIN - cotter, 1/8" x 3/4" (132-46)

2шт.

17

228CW

LEVER - cutoff

1шт.

18

O5837HT

BRACKET - sacker spout valve

1шт.

RIVET - 1/4" x 1/4" W.B. hd. (49-44)

2шт.

19

O321CW

SPRING - sacker valve pin

1шт.

20

A26381

WASHER

- between spout side and ref. 19 spring

1шт.

21

F82658

SPOUT - twin sacker

1шт.

22

O5790HT

SUPPORT - sacker spout

1шт.

RIVET - 1/4" x 3/8" W.B. hd. (49-46)

2шт.

23

F18922

SCREW

BRACKET - support, sacker spout (Bolts to ref. 2 page 176)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (114-102) nut (129-122)

2шт.

BOLT - 7/16" x 1" N.F. hex (114-301) nut (129-124)

1шт.

WASHER - 7/16" flat (195-105)

1шт.

24

O20374HT

VALVE - sacker

1шт.

BOLT - 1/4" x 5/8" N.F. hex (14-410) l.w. (92-4)

1шт.

NUT - 1/4" N.F. hex (25-114)

2шт.

25

F82660

X

CHAIN AND FLIGHTS (NSS - use (1) F86419, (1) F86423 and (2) 235-83 coupler links)

1шт.

26

F79799

RUBBER FLIGHT

FLIGHT - rubber, elevator chain (Includes F11165 flight, (1) 235-65 att. link, (2) #55 plain links and (2) 151-135 rivets)

12шт.

F86419

CHAIN AND FLIGHTS - (Consists of chain with 2 flights) (Not shown)

1шт.

F86423

CHAIN (AG)

CHAIN AND FLIGHTS - (Consists of chain with 10 flights) (Not shown)

1шт.
