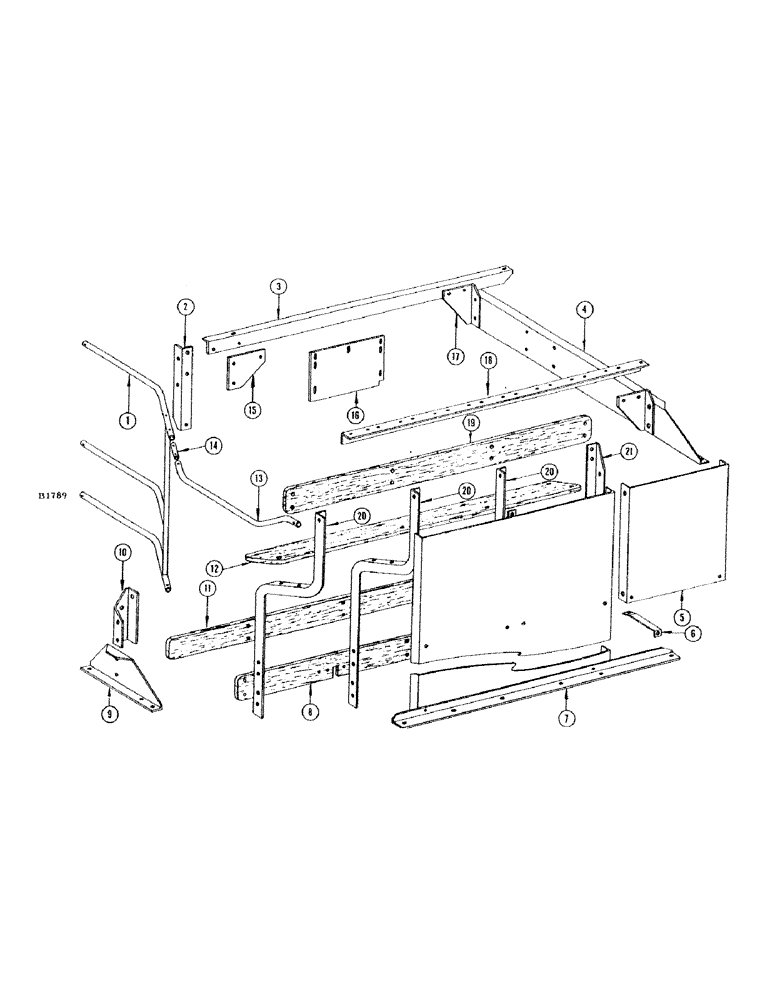

Запчасти Case IH 660 (180) - BAGGING PLATFORM SUPPORTS
№
Артикул
Название
Примечание
Количество
1
F82666
RAIL - guard, (Bolts to front bag sheet)
1шт.
BOLT - 3/8" x 1-3/4" N.F. hex (114-204) nut (129-123)
3шт.
2
F18904
SUPPORT - L.H. front
1шт.
BOLT - 3/8" x 1-1/2" N.F. hex (114-203) dbl. nut (129-123)
1шт.
BOLT - 1/2" x 1-1/4" N.F. hex (114-400) nut (129-125)
1шт.
3
F18872
SCREW
ANGLE - floor support, front
1шт.
4
F18874
SUPPORT - R.H.
1шт.
BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121)
1шт.
BOLT - 1/4" x 3/4" N.F. hex (114-5) nut (129-121)
1шт.
BOLT - 7/16" x 3/4" N.F. hex (114-308) nut (129-124)
5шт.
5
F18897
PANEL - R.H., seat back
1шт.
BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)
4шт.
6
F18921
BRACE - seat back panels (Bolts to seat board)
4шт.
BOLT - 1/4" x 1/2" N.F. hex (114-2) nut 9129-121)
4шт.
7
F82647
PANEL - L.H., seat back
1шт.
BOLT - 5/16" x 3/4" N.F. hex (114-102) nut (129-122)
2шт.
BOLT - 5/16" x 2" N.F. hex (114-122) nut (129-121)
4шт.
BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)
2шт.
8
F4066
BOARD - grain, front
1шт.
BOLT - 5/16" x 1-1/2" rhd. sq. nk. (11-524) nut (25-105)
4шт.
BOLT - 5/16" x 1-1/2" N.F. hex (114-107) nut (129-122)
3шт.
BOLT - 5/16" x 1-3/4" N.F. hex (114-106) nut (129-122)
1шт.
9
F18902
SUPPORT - L.H. rear
1шт.
BOLT - 7/16" x 3/4" N.F. hex (114-308) nut (129-124)
2шт.
10
F18903
BRACKET - L.H. rear support
1шт.
BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)
3шт.
BOLT - 7/16" x 1" N.F. hex (114-301) nut (129-124)
1шт.
11
F18944
BOARD - foot rest
1шт.
BOLT - 3/8" x 2" rhd. sq. nk. (11-424) nut (25-104)
8шт.
12
F4068
BOARD - seat
1шт.
BOLT - 3/8" x 2" rhd. sq. nk. (11-632) nut (25-106)
8шт.
13
F18940
RAIL - guard, rear (Bolts to ref. 20 post)
1шт.
BOLT - 3/8" x 1-3/4" N.F. hex (114-204) nut (129-123)
1шт.
14
F18931
SPLICE - guard rails ref. 13 and ref. 1
1шт.
BOLT - 3/8" x 1-1/2" N.F. hex (114-203) nut (129-103)
2шт.
15
F18905
GUSSET - L.H. front support, ref. 2
1шт.
BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)
2шт.
BOLT - 3/8" x 1" N.F. hex (114-200) nut (129-123)
1шт.
16
F18923
SCREW
CLOSURE - tailings discharge housing
1шт.
BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)
5шт.
17
F18906
BRACKET - R.H. support, ref. 4
2шт.
BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123)
8шт.
18
F9114
ANGLE - floor support, center
1шт.
19
F4069
REST - back, seat
1шт.
BOLT - 3/8" x 1-1/2" rhd. sq. nk. (11-624) nut (25-106)
8шт.
20
F8720
POST - seat (1 - L.H. and 2 - center)
3шт.
BOLT - 3/8" x 7/8" N.F. hex (114-218) nut (129-123)
3шт.
21
F8721
POST - seat, R.H.
1шт.
BOLT - 3/8" x 7/8" N.F. hex (114-218) nut (129-123)
1шт.
