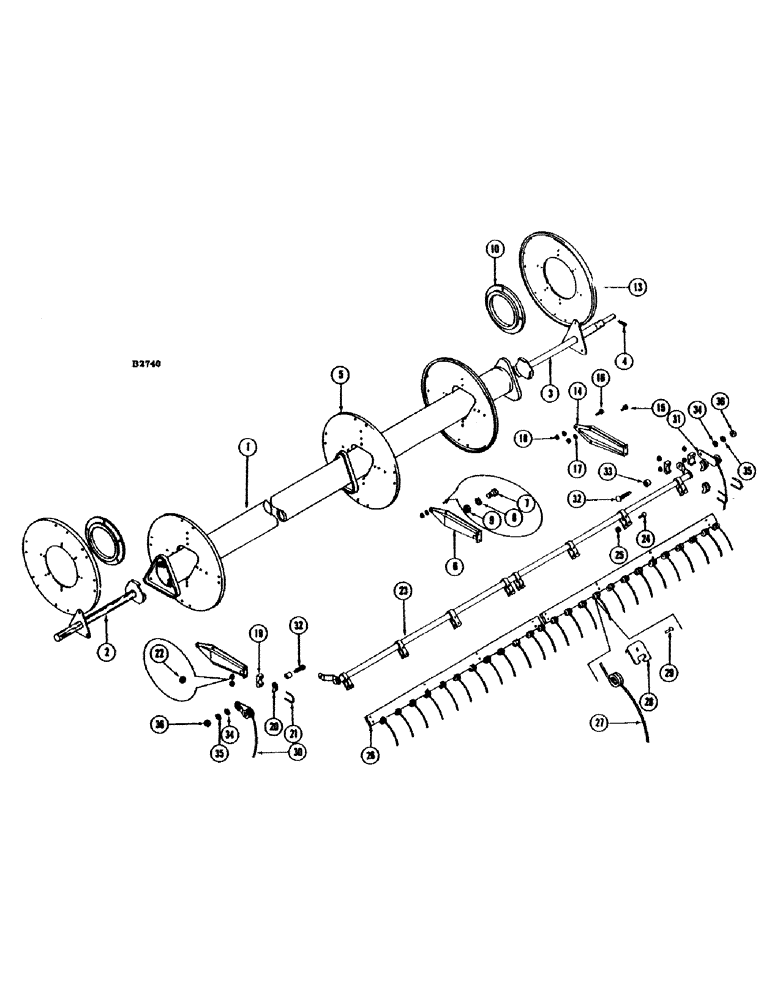

Запчасти Case IH 660 (019A) - HART, CARTER PICKUP REEL

1

F94135

SHAFT - reel, 10 ft. header

1шт.

F94143

SHAFT - reel, 13 ft. header

1шт.

F94148

SHAFT - reel, 14 ft. header

1шт.

2

F94168

SHAFT - driven end

1шт.

3

F94169

SHAFT - drive end

1шт.

4

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

5

F53431

PLATE - reel arms, 3 - 10', 4 - 13' and 14'

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(3-10', 6-13' and 14') Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

12-616

BOLT

- 3/8" x 1" N.C. rhd. sq. nk.

6шт.

195-25

WASHER,3/8"

- flat 3/8"

6шт.

92-6

LOCK WASHER,3/8"

6шт.

131-6

LOCK NUT,3/8"-16, GC

LOCKNUT - 3/8" N.C.

6шт.

6

F94162

ARM

- reel, 18 - 10', 24 - 13' and 14' (Replaces F94159)

1шт.

7

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

10

F2186

OIL SEAL

RING - eccentric control

2шт.

13

F53436

PLATE - eccentric

2шт.

14

F94162

ARM

- eccentric

12шт.

15

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

24шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

17

92-5

LOCK WASHER,5/16"

36шт.

18

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

36шт.

19

F53434

BASE

- bearing, 30 - 10', 36 - 13' and 14'

1шт.

20

F53433

CAP

BEARING - cap, 30 - 10', 36 - 13' and 14'

1шт.

21

F53432

BOLT

"U" BOLT - bearing, 30 - 10', 36 - 13' and 14'

1шт.

22

131-717

LOCK NUT

NUT - 1/4" N. C. hug lock

1шт.

23

F94138

SHAFT - bat, 10 ft., reel

6шт.

F94147

SHAFT - bat, 13 ft., reel

6шт.

F94152

SHAFT - bat, 14 ft., reel

6шт.

24

11-422

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 3/8", G2

BOLT - 1/4" x 1-3/8" rhd. sq. nk.

1шт.

25

131-2

NUT,1/4"-20, GB

LOCKNUT, , N.C. hex. 1/4"-20, GB

1шт.

26

F94137

BAT

- 10 ft., reel

12шт.

F94145

BAT - 43" outside, 13 ft. reel

12шт.

F94146

BAT - 52" inside, 13 ft. reel

6шт.

F94150

BAT

- 48" outside, 14 ft. reel

12шт.

F94151

BAT

- 54" inside, 14 ft. reel

6шт.

27

F53349

TINE

- bat (72 - 10 ft., 132 - 13 ft., 138 - 14 ft.)

1шт.

28

F53348

CLIP - tine (72 - 10 ft., 132 - 13 ft., 138 - 14 ft.)

1шт.

29

B17161

RIVET - 3/16" x 1" oval hd. tubular (1 lb. pkg.)

1шт.

30

F94166

FINGER

- R.H., auxiliary

6шт.

31

F94164

FINGER

- L.H., auxiliary

6шт.

32

F53437

BOLT - shank, auxiliary finger

12шт.

33

F53440

SPACER - shank, bolt

12шт.

34

195-29

WASHER,7/16"

- flat 7/16"

12шт.

35

92-8

LOCK WASHER,1/2"

12шт.

36

131-168

LOCK NUT,1/2"-20, GA

NUT - 1/2" N.F. Gripco lock

12шт.
