Запчасти Case IH 403 (105) - STEERING, SAGINAW, SERIAL NO. 1590 TO 2195 (41) - STEERING

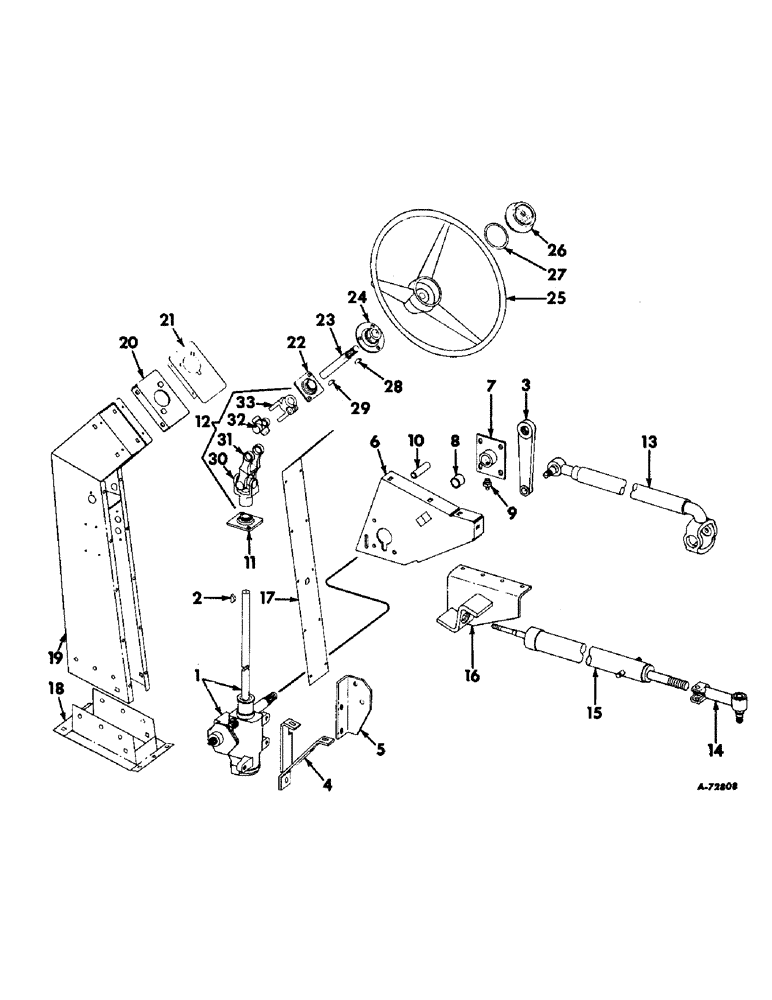

Схема запчастей Case IH 403 - (105) - STEERING, SAGINAW, SERIAL NO. 1590 TO 2195 (41) - STEERING
23
29
3
11
20
28
8
13
7
27
10
21
9
26
25
16
2
12
5
18
32
14
1
17
6
33
4
19
22
31
30
15
24

Артикул

Название

Примечание

Количество

1

653951R91

CASE ASSY, steering gear, For components see steering gear case unit

1шт.

2

106751

KEY

3/16 x 3/4 Woodruff

1шт.

3

653968R1

ARM, steering

1шт.

4

653954R91

SUPPORT W/BRACE, steering gear case LH

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

7/16 X 3/4 MACH BOLT

1шт.

3/8 LOCK WASHER

2шт.

7/16 LOCK WASHER

1шт.

13/32 X 3/4 X 16 GA WASHER

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

1шт.

5

653964R1

SUPPORT, steering gear case RH

1шт.

7/16 X 3/4 MACH BOLT W/NUT

2шт.

7/16 X 1-1/2 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

4шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

4шт.

6

653957R91

SUPPORT W/STOP, steering gear case shaft

1шт.

551655R91

19/32 X 1 X 11 GA WASHER

1шт.

7

653960R91

SUPPORT W/BUSHING, steering gear case shaft bushing, Includes ref no. 8

1шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

13/32 X 3/4 X 16 GA WASHER

3шт.

8

454172R1

BUSHING

1шт.

9

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4 - 45 deg elbow lubrication

1шт.

10

600411R1

SPACER,3/8" Pipe x 2 3/4"

STOP, steering gear case arm front

1шт.

3/8 X 3-3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

11

653952R91

BEARING, steering shaft lower ball

1шт.

12

653953R91

JOINT ASSY, universal

1шт.

13

653966R91

DRAG LINK ASSY, main

1шт.

14

631256R91

LINK

END ASSY, main drag link rear

1шт.

15

629266R92

CYLINDER

AND VALVE ASSY, steering, For components see list of parts under details of hydraulic steering cylinder, For use with hose assy 653909R91, Monroe, Order kit assy 156165C91, For components see list of parts under power steering kit

1шт.

16

627723R91

ANCHOR W/PLATE, steering cylinder

1шт.

17

627150R11

COVER W/WASHER, steering shroud, Gasoline engines

1шт.

17

632105R11

COVER W/WASHER, steering shroud, Diesel engines

1шт.

171598

SHIM,.003" Thk

1/4 X 1/2 SLT-RD-HD, tapping screw

12шт.

5/16 X 1/2 CAP SCREW

2шт.

564791R1

SPRING NUT

1/4 SPEED NUT

12шт.

5/16 LOCK WASHER

2шт.

18

634999R91

BASE, steering column

1шт.

3/8 X 3/4 CRG BOLT W/NUT

7шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 X 4-1/2 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

13шт.

13/32 X 1 X 16 GA WASHER

2шт.

19

634930R91

COLUMN W/NUT, steering

1шт.

20

627147R11

BRACKET W/NUT, steering shaft bearing

1шт.

5/16 X 3/4 CRG BOLT W/NUT

6шт.

5/16 NUT

2шт.

5/16 LOCK WASHER

8шт.

21

631481R91

COVER W/CLAMP, steering column top

1шт.

118132

NO. 10 X 1/2 SLT-RD-HD TAPPING SCREW

8шт.

22

585035R91

BALL BEARING,0.88" ID x 2.8125" OD x 0.875"

ball

2шт.

23

629608R1

SHAFT, steering upper

1шт.

218443

NUT

3/4 JAM NUT

1шт.

24

584299R91

BEARING, ball

1шт.

5/16 X 3/4 CRG BOLT W/NUT

3шт.

567517R1

1/4 X 1-1/2 ROLL PIN

3шт.

5/16 LOCK WASHER

3шт.

25

627811R91

WHEEL, steering

1шт.

26

366566R1

CAP

steering wheel

1шт.

27

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap

1шт.

28

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff

1шт.

29

103907

WOODRUFF KEY

KEY, 3/16 x 7/8 Woodruff

1шт.

30

654009R1

YOKE

1шт.

31

629610R91

YOKE, center

1шт.

32

357606R91

KIT, cross

2шт.

33

350361R1

YOKE

1шт.

Выбрано товаров: 68
