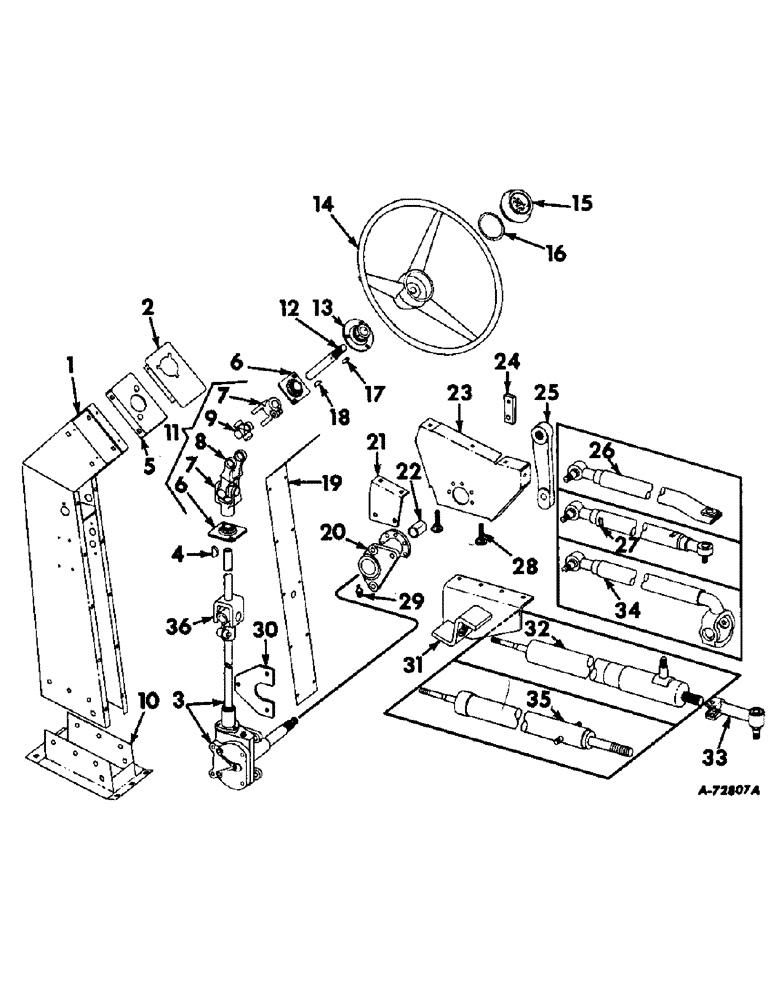

Запчасти Case IH 403 (103) - STEERING, ROSS GEAR, SERIAL NO. 501 TO 1589 AND 2196 TO 7224 (41) - STEERING

1

627152R92

COLUMN W/NUT, steering, Consists of column, 634930R91 and base, 634999R91, Serial no. 2195 and below

1шт.

1

634930R91

COLUMN W/NUT, steering, Serial no., Serial Range: 2196-7224

1шт.

1/2 X 3/4 MACH BOLT

6шт.

114505

JAM NUT,Jam, 1/2"-13, G5

6шт.

17/32 X 1-1/4 NO. 16 GA WASHER

6шт.

2

631481R91

COVER W/CLAMP, steering column top

1шт.

118132

NO. 10 X 1/2 SLT-RD-HD TAPPING MACH SCREW

8шт.

3

627141R91

CASE ASSY, steering gear, For components see steering gear case unit, Serial nos 501 to 1176 and, Serial Range: 2196-7224

1шт.

3

633745R91

CASE ASSY, steering gear, For components see steering gear case unit, Serial no., Serial Range: 1177-1589

1шт.

4

103907

WOODRUFF KEY

KEY, 3/16 x 7/8 Woodruff

1шт.

5

627147R11

BRACKET W/NUT, steering shaft bearing upper

1шт.

5/16 X 3/4 CRG BOLT W/NUT

6шт.

5/16 NUT

2шт.

5/16 LOCK WASHER

8шт.

6

585035R91

BALL BEARING,0.88" ID x 2.8125" OD x 0.875"

ball

2шт.

7

350361R2

YOKE

KNUCKLE, Optional for knuckle 369915R1

2шт.

7

369915R1

CLEVIS COUPLING

KNUCKLE, Optional for knuckle 350361R2

2шт.

8

629610R91

YOKE ASSY

1шт.

9

661372R91

KIT

ASSY, spider

2шт.

10

634999R91

BASE, steering column

1шт.

3/8 X 3/4 CRG BOLT W/NUT

7шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 X 4-1/2 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

13шт.

13/32 X 1 X 16 GA WASHER

2шт.

11

627142R91

JOINT ASSY, universal

1шт.

12

629608R1

SHAFT, steering upper

1шт.

218443

NUT

3/4 JAM NUT

1шт.

13

584299R91

BEARING, ball

1шт.

5/16 X 3/4 CRG BOLT W/NUT

3шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

3шт.

5/16 LOCK WASHER

3шт.

14

627811R91

WHEEL, steering

1шт.

15

366566R1

CAP

steering wheel, power steering

1шт.

16

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap

1шт.

17

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff

1шт.

18

103907

WOODRUFF KEY

KEY, 3/16 x 7/8 Woodruff

1шт.

19

627150R11

COVER W/WASHER, steering shroud, Gasoline burning engines

1шт.

19

632105R11

COVER W/WASHER, steering shroud, Diesel burning engines

1шт.

171598

SHIM,.003" Thk

1/4 X 1/2 SLT-RD-HD TAPPING SCREW

12шт.

5/16 X 1/2 CAP SCREW

1шт.

564791R1

SPRING NUT

1/4 SPEED NUT

12шт.

5/16 LOCK WASHER

2шт.

20

627163R11

EXTENSION W/BUSHING ASSY, steering gear housing, Includes ref. no. 22

1шт.

1/4 X 1 MACH BOLT W/NUT

5шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

5шт.

3/8 LOCK WASHER

1шт.

21

627148R1

SUPPORT, steering gear case

1шт.

22

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

steering gear housing extension

1шт.

23

627143R91

SUPPORT W/STOP, steering gear housing extension RH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

24

NOT USED

1шт.

25

628979R1

ARM, steering

1шт.

26

627492R91

TRUSS ROD

DRAG LINK W/END, main, For use with cylinder 574041R92 or cylinder 935156R92

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

27

NOT USED

1шт.

28

570028R91

BOLT

STOP W/BOLT AND WASHER, steering arm

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

29

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 67-1/2 deg elbow lubrication

1шт.

30

633746R1

PLATE, steering gear, Serial no., Serial Range: 1177-1589

1шт.

7/16 X 1 CAP SCREW

1шт.

7/16 X 1-1/2 CAP SCREW

2шт.

7/16 LOCK WASHER

3шт.

31

627723R91

ANCHOR W/PLATE, steering cylinder, power steering

1шт.

32

574041R92

CYLINDER BLOCK

CYLINDER AND VALVE ASSY, steering, For components see steering cylinder unit, For use with hose 587575R91, Serial no. 7223 and below

1шт.

33

629912R91

END ASSY.

END ASSY, main drag link rear, For use with 574041R92 or 935156R92 cylinder

1шт.

1/2 X 2-1/2 MACH BOLT W/NUT

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

1/2 LOCK WASHER

1шт.

33

565493R91

END ASSY, main drag link rear, For use with 629266R92 steering cylinder

1шт.

5/8 X 2-3/4 MACH BOLT W/NUT

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

5/8 LOCK WASHER

1шт.

34

629278R91

DRAG LINK W/END, main, For use with cylinder 629266R92, Serial no., Serial Range: 501-4643

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

35

629266R92

CYLINDER

1шт.

CYLINDER AND VALVE ASSY, steering, For components see list of parts under details of hydraulic steering cylinder, For use with hose assy 653909R91, Monroe, Serial no. 501 to 4643, Order kit assy 156165C91, For components see list of parts under power steering kit

1шт.

35

935156R92

CYLINDER AND VALVE ASSY, steering, For components see list of parts under details of hydraulic steering cylinder, For use with hose assy 587575R91, Monroe, Serial no., Serial Range: 4644-7224

1шт.

36

634881R91

SHAFT W/KNUCKLE ASSY, steering lower, Consists of

1шт.

350361R92

YOKE

1шт.

661372R91

KIT

center cross

1шт.

634704R91

YOKE AND SHAFT, Serial no. 1177, Serial Range: -1589

1шт.

3/8 X 1-3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.
