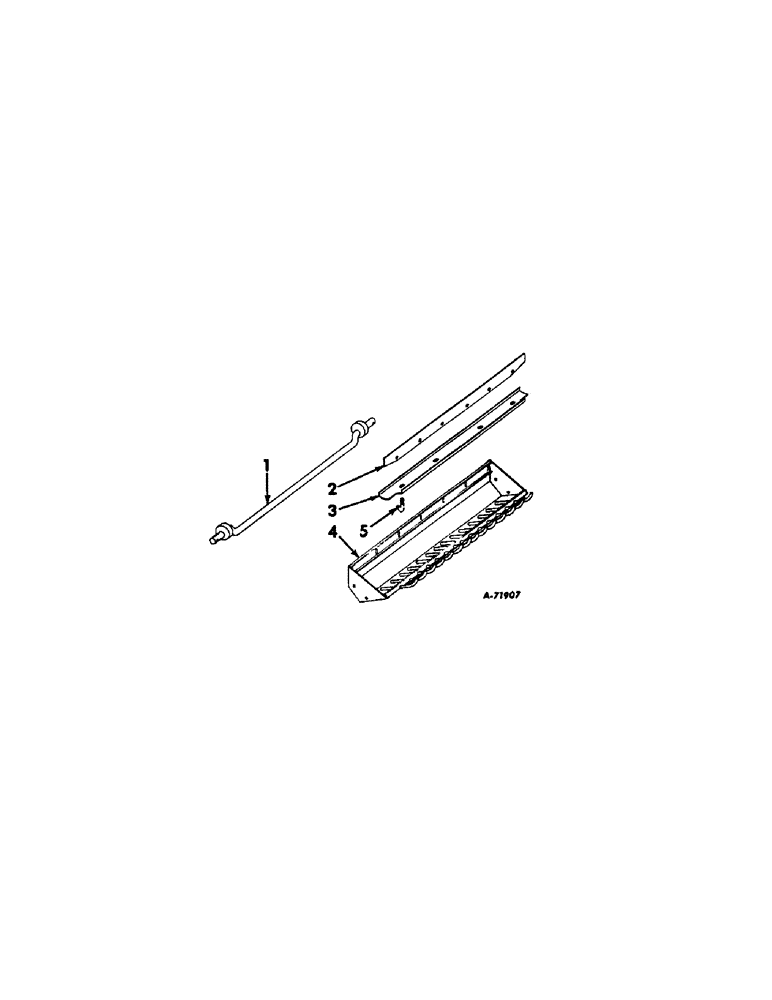

Запчасти Case IH 403 (071) - STONE RETARDER ATTACHMENT (39) - FRAMES AND BALLASTING

1

632665R91

SHAFT, stone retarder concave adjusting cam, Order shaft 632501R91 listed under concave and extension

1шт.

2

632068R1

BAR

RETAINER, concave rod front, Not for spike tooth cylinder

1шт.

3

570443R1

EXTENSION, stone retarder

1шт.

4

569590R91

RETARDER W/BOTTOM, reinforcement and side, stone

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 MACH BOLT W/NUT

1шт.

5/16 X 1/2 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

5/16 LOCK WASHER

4шт.

5

569935R1

BOLT, stone retarder extension hook

1шт.

1/4 NUT

4шт.

1/4 LOCK WASHER

4шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

4шт.
