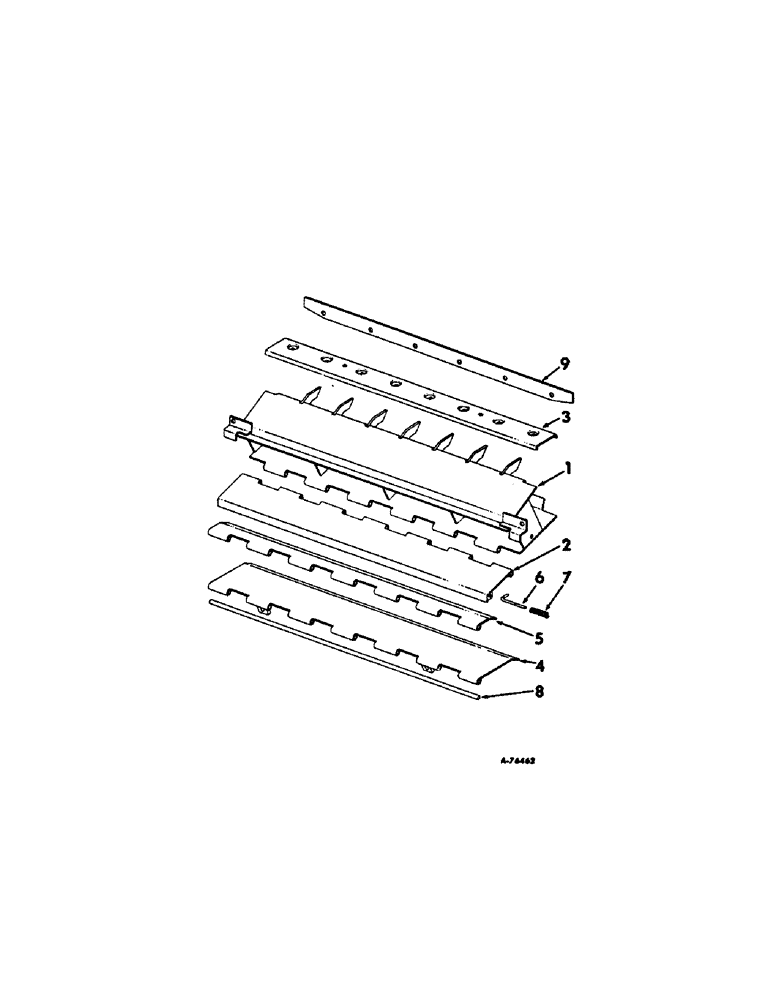

Запчасти Case IH 403 (071[1]) - STONE RETARDER, FOR USE WITH CORN HEADS (39) - FRAMES AND BALLASTING

1

164377C91

TRAP ASSY, stone

1шт.

2

164384C11

DOOR ASSY, stone trap

1шт.

3

164387C1

SUPPORT, feed plate extension

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

164389C11

EXTENSION ASSY, corn head feeder frame

1шт.

5

164393C1

EXTENSION, corn head feeder frame

1шт.

6

164446C1

PIN, stone trap door lock

2шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

7

897396R1

SPRING, stone trap door lock pin

2шт.

8

589386R1

ROD

feeder frame extension

1шт.

9

632068R1

BAR

concave wire retainer

1шт.
