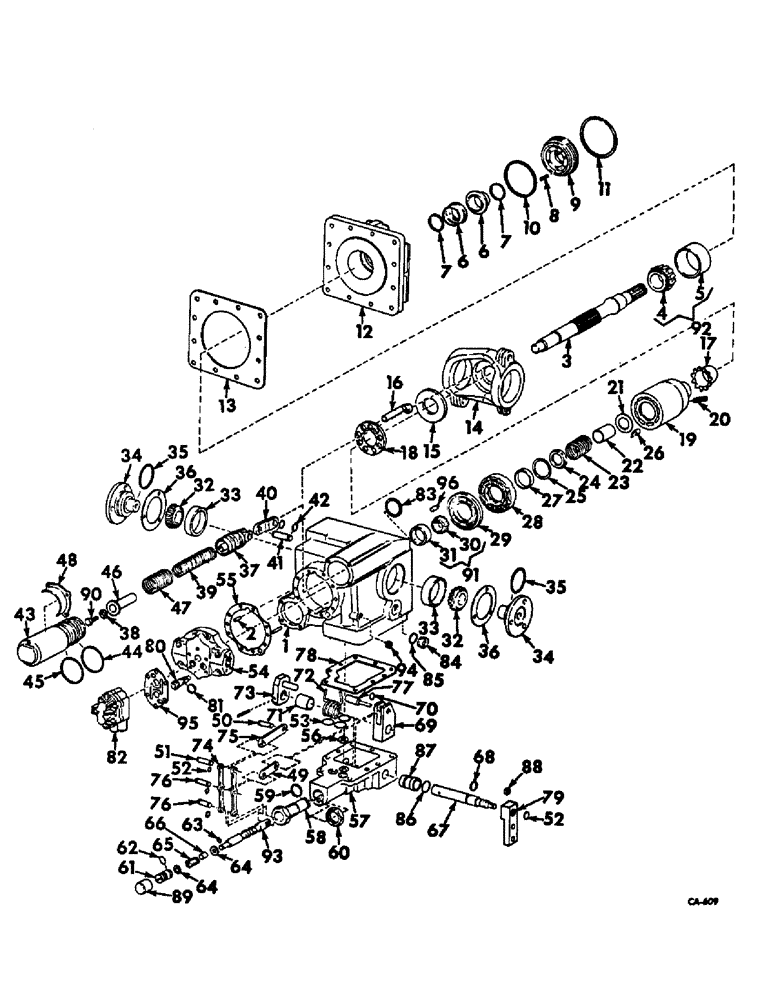

Запчасти Case IH 403 (174) - HYDRAULIC TRANSMISSION PUMP, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

150642C95

PUMP

ASSY, ground drive

1шт.

1

394179R1

HOUSING

transmission pump

1шт.

2

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel pump housing

4шт.

3

394180R1

SHAFT

pump drive

1шт.

4

BEARING ASSY, drive shaft front cone, Not serviced separately order bearing assy 394181R91

1шт.

5

BEARING ASSY, drive shaft front cup, Not serviced separately order bearing assy 394181R91

1шт.

6

403072R91

SEAL KIT

PACKAGE, O-ring and seal, Includes ref nos. 7, 8, and 10

1шт.

7

393880R1

RING

O-RING, 1-9/16 x 1-3/4 x 3/32

2шт.

8

393882R1

SPRING

drive shaft face seal retainer

6шт.

9

393881R91

RETAINER

ASSY, drive shaft face seal

1шт.

10

707720R1

O-RING

3 x 3-1/4 x 1/8

1шт.

11

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

12

394183R1

COVER, transmission pump front

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

4шт.

394881R1

WASHER

13/32 x 11/16 x .106

12шт.

13

394184R1

GASKET

transmission pump front cover

1шт.

14

394185R1

SWASHPLATE, transmission pump

1шт.

15

394186R1

WASHER

PLATE, piston slipper thrust

1шт.

16

394187R92

PISTON

ASSY, cyl block

9шт.

17

394188R1

GUIDE

cyl block piston slipper

1шт.

18

394189R1

RETAINER

cyl block piston slipper

1шт.

19

394190R91

BLOCK

ASSY, piston cyl

1шт.

20

394191R1

SPRING

piston cyl block

9шт.

21

394192R1

SEAT

piston cyl block spring

1шт.

22

394193R1

BUSHING

drive shaft rear spring

1шт.

23

532290R1

SPRING

cyl block

1шт.

24

394195R1

RETAINER

drive shaft rear spring

1шт.

25

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, drive shaft rear spring retainer snap

1шт.

26

394196R1

NO LONGER SERVICED

PIN, cyl block brg plate

1шт.

27

394197R1

RING

cyl block brg plate pilot

1шт.

28

399406R1

PLATE

cyl block brg

1шт.

29

530769R1

PLATE

cyl block valve

1шт.

30

BEARING ASSY, drive shaft rear pilot cone, Not serviced separately order bearing assy 394200R91

1шт.

31

BEARING ASSY, drive shaft rear pilot cup, Not serviced separately order bearing assy 394200R91

1шт.

32

165963R91

BEARING

ASSY, swashplate cone

2шт.

33

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

swashplate cup

2шт.

34

394204R1

TRUNNION

swashplate brg

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

394881R1

WASHER

13/32 x 11/16 x .106

1шт.

35

21003R1

O-RING,2.484" ID x 2.762" OD x 0.139"

2-1/2 x 2-3/4 x 1/8

2шт.

36

394205R91

SET

swashplate brg trunnion gasket

1шт.

37

529300R1

PISTON

servo, Includes ref. no. 39

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

38

394207R1

WASHER

servo piston bolt

2шт.

39

SPRING, servo piston, Not serviced separately order 529300R1

2шт.

40

406112R1

LINK, servo piston

2шт.

41

394209R1

PIN

servo piston link

4шт.

42

321935C1

SNAP RING,#62, Ext

Ring, Snap, , servo piston link pin #62, Ext

8шт.

43

403074R2

SLEEVE

servo piston

2шт.

44

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

2шт.

45

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

46

394211R1

GUIDE

servo piston ring

2шт.

47

394212R1

SPRING, servo piston

2шт.

48

394213R1

RETAINER

servo piston sleeve

2шт.

191209

SCREW,#10 - 24 x 3/8"

10-24 x 3/8 hex-soc-hd cap

6шт.

49

406904R91

CONNECTOR, control valve link

1шт.

50

394215R1

PIN

control valve link front

1шт.

51

404781R1

PIN

control valve link rear

1шт.

385180R1

WASHER

9/32 x 1/2 x .065

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

52

233045R1

SNAP RING,#25, Ext, Crescent

Ring, Snap, , Control valve link pin #25, Ext, Crescent

4шт.

53

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

3шт.

54

530731R1

CAP

COVER, transmission pump rear end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

8шт.

55

394218R1

GASKET

transmission pump rear end cover

1шт.

56

394219R1

PLUG

control valve orifice

1шт.

533855R91

VALVE ASSY, control, Includes ref nos. 49, 57 thru 74, 76, 77, 86, 87, 89, and 93

1шт.

57

533856R1

VALVE

KIT, control valve & spool, Includes ref. no. 93

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

2шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

SCREW, 1/4-20 x 2-1/4 hex-hd cap

7шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

58

394222R1

HOUSING

centering spring

1шт.

59

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

60

394223R1

LOCK NUT

centering spring housing lock

1шт.

61

394224R1

SCREW,Sl, 3/4" - 16 x 1.56"

centering spring adjusting

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex. jam

1шт.

62

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

13/16 x 15/16 x 1/16

1шт.

63

233045R1

SNAP RING,#25, Ext, Crescent

Ring, Snap, , Spring adjusting screw #25, Ext, Crescent

1шт.

64

394225R1

WASHER

centering spring

2шт.

65

394226R1

SPRING

centering

1шт.

66

394227R1

SLEEVE

centering spring

1шт.

67

394228R1

SHAFT

control valve handle

1шт.

68

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

1шт.

69

406903R1

LINK

control valve handle shaft

1шт.

70

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , control valve handle shaft #50, Ext, Crescent

1шт.

71

394230R1

SLEEVE

control valve handle shaft return spring

1шт.

72

394231R1

SPRING

control valve handle shaft return

1шт.

73

394232R1

ARM

ACTUATOR, control valve handle shaft return spring

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

74

404712R1

LINK, control valve

1шт.

75

395214R1

LINK, control valve

1шт.

76

394235R1

PIN

control valve link pivot

2шт.

77

406905R1

PIN

control valve handle shaft link

1шт.

78

394237R1

GASKET

control valve housing

1шт.

79

404782R1

HANDLE

control valve shaft

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

121753

WASHER

1/4 ext-tooth lock

1шт.

80

394238R91

VALVE

ASSY, charge pump check

2шт.

81

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

2шт.

82

404777R91

HYDROSTATIC PUMP

PUMP ASSY, hyd charge

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065

4шт.

83

404780R1

SHIM

pump shaft rear

1шт.

84

9410356

PLUG

7/16-20 hex-hd O-ring boss

3шт.

85

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

86

23178R1

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk

1шт.

87

404711R1

BUSHING

shaft

1шт.

88

404783R1

SPACER

control valve handle

1шт.

89

400546R1

COVER

centering spring housing

1шт.

90

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

91

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSY, drive shaft rear pilot

1шт.

92

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSY, drive shaft front

1шт.

93

NOT SERVICED SEPARATELY ORDER 533856R1 KIT

1шт.

94

444687

PLUG,Hex Soc, 1/8"-27

Drain Hex Soc, 1/8"-27

3шт.

95

533858R1

GASKET

pump end cover

1шт.

96

394825R1

DOWEL

PIN, 5/8 x 5/8 dowel

1шт.

394290R91

PACKAGE

drive shaft face seal

1шт.
