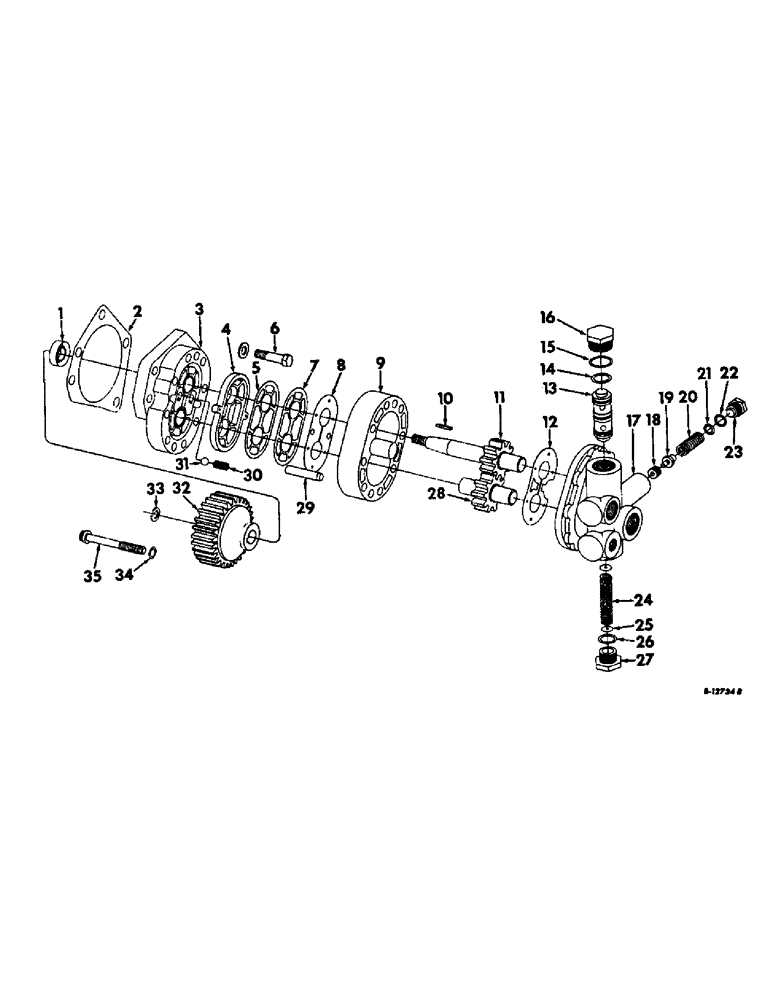

Запчасти Case IH 403 (168) - PLATFORM HYDRAULIC LIFT PUMP (35) - HYDRAULIC SYSTEMS

631143R92

PUMP

ASSY, hyd, Includes ref nos 1 thru 5, 7 thru 31, 34 and 35

1шт.

1

636628R91

SEAL

shaft

1шт.

2

NOT SERVICED SEPARATELY

1шт.

3

NOT SERVICED SEPARATELY

1шт.

4

NOT SERVICED SEPARATELY

1шт.

5

NOT SERVICED SEPARATELY

1шт.

6

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

BOLT, hydraulic pump mounting, bolt

2шт.

3/8 X 1-1/4 NYLOK

1шт.

565832R1

WASHER

hydraulic lift pump mounting bolt

2шт.

7

NOT SERVICED SEPARATELY

1шт.

8

NOT SERVICED SEPARATELY

1шт.

9

NOT SERVICED SEPARATELY

1шт.

10

628965R1

KEY

1шт.

11

632850R91

GEAR W/SHAFT ASSEMBLY, drive

1шт.

125-10003

NUT,3/8"-16, G5, LH

3/8 LH NUT

1шт.

Q5035

WASHER

17/32 X 1 X 16 GA WASHER

1шт.

12

NOT SERVICED SEPARATELY

1шт.

13

NOT SERVICED SEPARATELY

1шт.

14

310943R1

RING

O-RING, 1/16 x 1/16

3шт.

15

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

3/32 x 7/8

1шт.

16

NOT SERVICED SEPARATELY

1шт.

17

NOT SERVICED SEPARATELY

1шт.

18

NOT SERVICED SEPARATELY

1шт.

19

152776C1

VALVE POPPET

POPPET

1шт.

20

632843R1

SPRING

relief valve

1шт.

21

180375R1

SHIM, relief valve

1шт.

22

355966R1

O-RING,0.424" ID x 0.103" Width

3/32 x 7/16

1шт.

23

632842R1

PLUG, 9/16 hex.

1шт.

24

NOT SERVICED SEPARATELY

1шт.

25

NOT SERVICED SEPARATELY

1шт.

26

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8

1шт.

27

632858R1

PLUG, 3/4-16NF hex.

1шт.

28

632837R91

GEAR W/SHAFT ASSEMBLY, idler

1шт.

29

NOT SERVICED SEPARATELY

1шт.

30

371523R1

SPRING

check

2шт.

31

17007R1

BALL

7/32 steel

2шт.

32

631180R1

GEAR

hydraulic pump

1шт.

33

632019R1

LOCK WASHER,3/8"

L.H. 3/8"

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

34

180375R1

WASHER, copper crush

8шт.

35

632873R1

BOLT, 5/16 x 2-1/2 12 point hex-hd

8шт.

654325R92

KIT ASSY, back plate repair, Consists of

1шт.

DISC

1шт.

O-RING, 3/32 x 7/16

1шт.

O-RING, 3/32 x 5/8

1шт.

O-RING, 1/16 x 11/16

3шт.

O-RING, 3/32 x 7/8

1шт.

PLATE

1шт.

PLUG, 9/16-18UNF

1шт.

PLUG, hex.

2шт.

POPPET

1шт.

SEAT

1шт.

SHIM

1шт.

SLEEVE AND SPOOL ASSY

1шт.

SPRING, relief valve

1шт.

SPRING

1шт.

WASHER

1шт.

169499C91

KIT

ASSY, major seal repair, Consists of

1шт.

BACK-UP GASKET

1шт.

WASHER

8шт.

DIAPHRAGM

1шт.

SEAL

1шт.

GASKET, flange

1шт.

GASKET, protector

1шт.

O-RING, 3/32 x 7/16

1шт.

O-RING, 3/32 x 5/8

1шт.

O-RING, 1/8 x 5/16

1шт.

SEAL

1шт.

BALL, steel

2шт.

PLATE

1шт.

SPRINGS

2шт.
