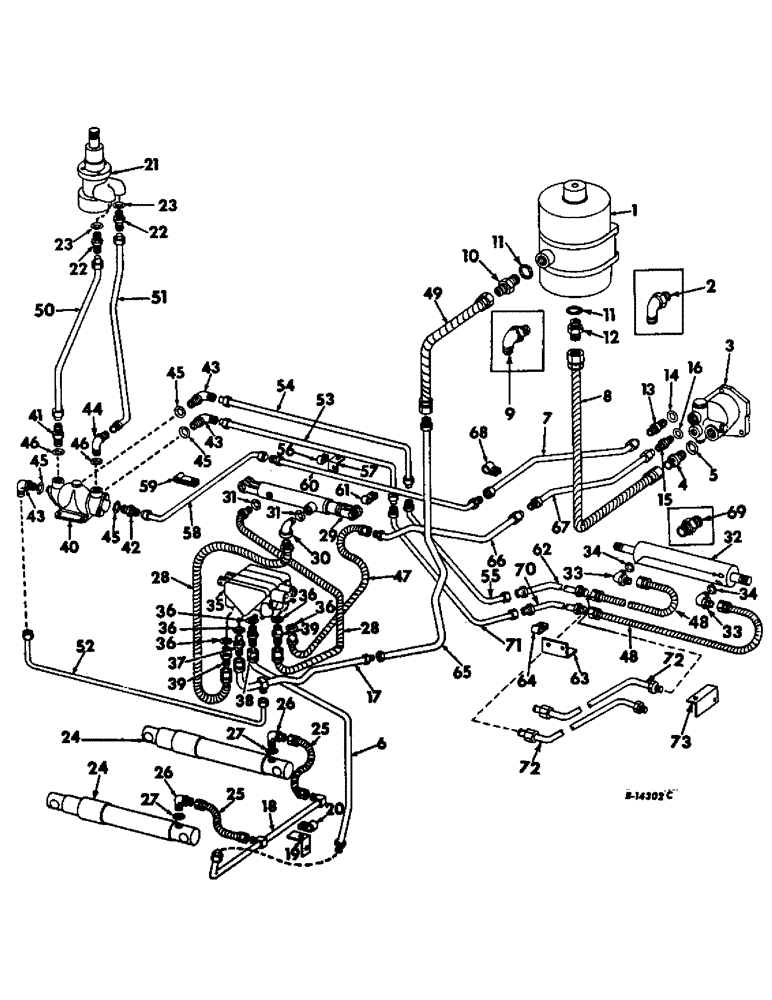

Запчасти Case IH 403 (160) - HYDRAULIC DIAGRAM HYDROSTATIC STEERING, BELT DRIVE SERIAL NO. 7224 AND ABOVE (35) - HYDRAULIC SYSTEMS

1

633382R91

RESERVOIR ASSY, hydraulic oil, Serial no. 9956 and below

1шт.

1

156395C91

RESERVOIR

ASSY, hydraulic oil, Serial no. 9957 and above, For components see list of parts under details of hydraulic reservoir

1шт.

2

NOT USED

1шт.

3

631143R92

PUMP

ASSY, hydraulic lift, See note B, For components see list of parts under details of hydraulic lift pump

1шт.

4

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, See note B

1шт.

5

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

pump suction hose

1шт.

6

627437R11

PIPE ASSY, platform lift cylinder upper

1шт.

7

939251R11

PIPE ASSY, pump to valve rear, grain tank, Serial no. 9956 and below

1шт.

7

154996C91

TUBE ASSY, pump to valve rear, grain tank, Serial no. 9958 and above

1шт.

7

150562C91

PIPE ASSY, steering pump to valve rear, bagger

1шт.

8

935703R91

HOSE ASSY, suction, See note B, Serial no. 9956 and below

1шт.

8

938297R91

HOSE ASSY, suction, See note B, Serial no. 9957 and above

1шт.

9

NOT USED

1шт.

10

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, See note B

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir connectors, For hyd reel drive or hyd pickup, Serial no. 9957 and above

2шт.

11

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

reservoir connectors, Not for hyd reel drive or hyd pickup, Serial no. 9957 and above

2шт.

12

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, See note B, Serial no. 9956 and below

1шт.

12

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, See note B, Serial no. 9957 and above

1шт.

13

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, pump pressure, See note B

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pressure connector, See note B

1шт.

15

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, power steering upper pressure tube, See note B

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, power steering upper pressure tube connector, see note B

1шт.

17

588538R91

PIPE ASSY, front return

1шт.

18

631847R11

PIPE ASSY, platform lift cylinder lower 0.625" OD, 36.06, 4.75" Length

1шт.

19

583255R1

ANCHOR, platform lift cylinder lower tube clip

1шт.

20

587501R2

CLAMP

CLIP, tube

1шт.

20

567895R2

CLIP, tube

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

1шт.

21

378578R94

HYDRAULIC STEERING

PUMP ASSY, steering hand, For components see list of parts under details of hydrostatic steering pump

1шт.

22

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

2шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

570799R91

CYLINDER ASSY, platform lift, Optional for 570801R92 or 383762R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

570801R92

CYLINDER ASSY, platform lift, Optional for 570799R91 or 383762R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

383762R92

CYLINDER ASSY, platform lift, Optional for 570799R91 or 570801R92 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

570810R92

CYLINDER ASSY, platform lift, Optional for 570985R91 or 383763R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

570985R91

CYLINDER ASSY, platform lift, Optional for 570810R92 or 383763R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

383763R92

CYLINDER ASSY, platform lift, Optional for 570810R92 or 570985R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

631403R91

CYLINDER ASSY, platform lift, For components see list of parts under details of platform lift cylinder

2шт.

24

631404R91

CYLINDER ASSY, platform lift, For components see list of parts under details of platform lift cylinder

2шт.

25

574230R91

HOSE ASSY.

HOSE ASSY, platform lift cylinder, 29 inches

2шт.

26

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

27

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

28

574499R91

HOSE ASSY, propulsion control cylinder, 20 inch, For use with

2шт.

28

939480R91

HOSE

ASSY, propulsion control cylinder, 20 inch, For use with

2шт.

29

574475R91

CYLINDER ASSY, propulsion control, For components see list of parts under details of propulsion cyl, Order cylinder assy 387864R91, two hose assy 939480R91 and two O-rings 364839R1

1шт.

29

387864R91

CYLINDER ASSY, propulsion control, For components see list of parts under details of propulsion cyl

1шт.

30

NOT USED

1шт.

31

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, propulsion control cylinder, for use with propulsion control cylinder 387864R91

2шт.

32

654631R91

CYLINDER ASSY, steering

1шт.

32

397689R91

CYLINDER ASSY, steering, Optional for 654631R91, For components see list of parts under details of hydraulic steering cylinder

1шт.

33

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Not rice special, 1 used for rice special 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

33

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 1 used rice special

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

35

156201C92

LOCK VALVE

VALVE ASSY, propulsion drive and platform list, For components see list of parts under details of propulsion drive and platform lift valve

1шт.

36

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

37

587577R1

CONNECTION,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, return tube

1шт.

38

574478R1

UNION

CONNECTOR, platform lift tube

1шт.

39

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, propulsion control

2шт.

40

396726R91

LOCK VALVE

VALVE ASSY, steering, For components see list of parts under details of steering valve

1шт.

41

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

1шт.

42

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR

1шт.

43

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3шт.

44

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

45

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

46

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

47

631163R91

HOSE ASSY.

HOSE ASSY, valve pressure

1шт.

48

632455R91

HOSE

ASSY, steering cylinder

2шт.

48

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, steering cylinder, Rubber tires and narrow guide wheel axle

2шт.

48

633213R91

HOSE ASSY, steering cylinder, Tracks or rubber tires and wide guide wheel axle

2шт.

48

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

0.31" ID x 20.00", Steering Cylinder, for Adjustable Axle 52 68 in

2шт.

48

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, steering cylinder, For adjustable axle 68 to 84 in.

2шт.

49

939277R91

HOSE ASSY, platform lift return, Serial no. 9956 and below

1шт.

49

150785C91

HOSE ASSY, platform lift return, Serial no. 9957 and above

1шт.

50

939254R11

PIPE ASSY, hand pump to valve LH

1шт.

51

939252R11

PIPE ASSY, hand pump to valve RH

1шт.

52

939253R11

PIPE ASSY, steering valve return, For machines w/o foot-n-inch valve

1шт.

52

164409C91

TUBE ASSY, steering return, For machines w/foot-n-inch valve

1шт.

53

654585R11

PIPE ASSY, steering valve to cylinder front upper 1.375" OD, 39.75, 4.81" Length

1шт.

54

654584R11

PIPE ASSY, steering valve to cylinder front lower 1.375" OD, 41.06, 5.24" Length

1шт.

55

939250R11

PIPE ASSY, steering valve to cylinder center

1шт.

56

589980R2

CLIP

6шт.

57

935670R1

ANGLE, pipe clip holder, grain and rice, Serial no. 9956 and below, grain, Serial no. 9957 and above

1шт.

57

151290C1

ANGLE, pipe clip holder, rice special, Serial no. 9957 and above

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , w/nut Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 C-Z MACH BOLT W/NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

58

939256R11

PIPE ASSY, pump to valve front, Steering

1шт.

59

935765R1

CLIP

2шт.

60

939249R11

PIPE ASSY, pump to valve center, grain tank, Serial no. 9956 and below

1шт.

60

154991C91

TUBE ASSY, pump to valve center steering, grain tank, Serial no. 9957 and above

1шт.

60

150563C91

PIPE ASSY, steering pump to valve center, Bagger

1шт.

61

589980R2

CLIP

6шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Grain Hex, 1/4"-20 x 1", G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 X 1 C-Z CAP BOLT, 2 used grain, 5 used rice

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

62

654580R11

PIPE ASSY, valve to cylinder rear, grain

1шт.

62

151287C91

PIPE ASSY, valve to cylinder rear, rice, Serial no. 13062 and below, Order 155952C91 and 155953C91

1шт.

62

155953C91

PIPE ASSY, steering valve to cylinder, rice and adjustable guide wheel axle, Serial no. 4766 and above

1шт.

63

628190R1

SUPPORT, tube clip, grain

1шт.

63

155950C1

ANGLE, steering valve to cylinder rear tube clip, rice and adjustable guide wheel axle, Serial no. 13063 and above

1шт.

64

589980R2

CLIP

6 for grain tank, 4 for bagger

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 X 1 C-Z CAP

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

65

627539R11

PIPE ASSY, platform lift rear return 0.75" OD, 46.25" Length

1шт.

65

634819R11

PIPE ASSY, platform lift rear return, Bagger

1шт.

66

627441R11

PIPE ASSY, platform lift front pressure, Grain tank, Serial no. 9956 and below 0.625" OD, 72, 5.43" Length

1шт.

66

155001C91

TUBE ASSY, platform lift front pressure grain tank, Serial no. 9957 and above

1шт.

66

634818C11

TUBE ASSY, platform lift front pressure, bagger

1шт.

67

628181R11

PIPE ASSY, rear pressure 0.625" OD, 39.38, 7.34" Length

1шт.

68

589980R2

CLIP

1шт.

69

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, rice special

1шт.

70

654580R11

PIPE ASSY, valve to cylinder rear, grain

1шт.

70

150564C91

PIPE ASSY, valve to cylinder rear, rice, Serial no. 13062 and below, Order 155952C91 and 155953C91

1шт.

70

155953C91

TUBE ASSY, steering valve to cylinder rear, rice and adjustable guide wheel axle, Serial no. 13063 and above

1шт.

71

939250R11

PIPE ASSY, steering valve to cylinder center

1шт.

72

155952C91

TUBE ASSY, steering valve to cylinder rear center, rice and adjustable guide wheel axle, Serial no. 13063 and above

2шт.

73

155951C1

ANGLE, steering valve to cylinder rear center tube, rice and adjustable guide wheel axle, Serial no. 13063 and above

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 X 1 C-Z MACH BOLT W/NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
