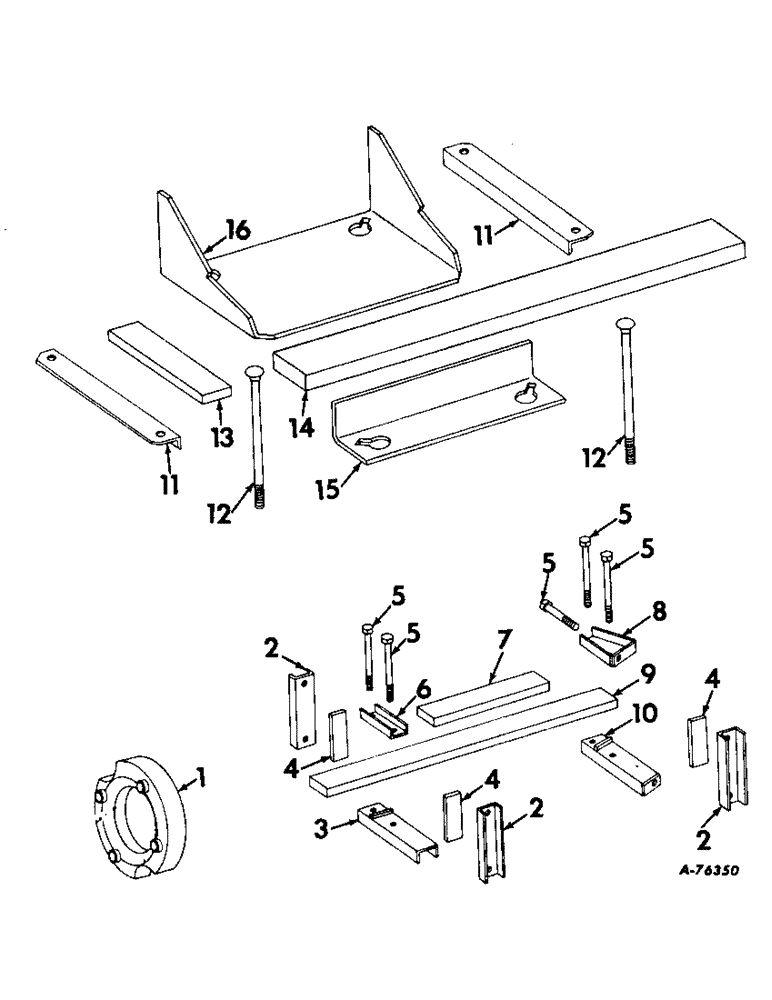

1
370685R1
WEIGHT
guide wheel, 43 lbs
2шт.
2
654329R1
CHANNEL, counter balance weight tie
3шт.
3
654328R11
CHANNEL ASSY, counter balance weight lower
1шт.
4
654445R1
FILLER, counter balance weight
5шт.
5
21614R1
BOLT, 5/8 x 14-1/2 C-Z hex-hd mach
2шт.
5
19686R1
BOLT,Hex, 5/8"-11 x 7 1/2", G2
5/8 x 7-1/2 C-Z hex-hd mach
4шт.
5
18833R1
BOLT,Hex, 5/8" - 11 x 7"
5/8 x 7 C-Z hex-hd mach
1шт.
5
18823R1
BOLT,Hex, 5/8"-11 x 2", G2
5/8 x 2-1/2 C-Z hex-hd mach
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8 C-Z hex.
8шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
6
654331R1
CHANNEL, counter balance weight upper
1шт.
7
654330R1
BAR, counter balance weight, Short, 16 lb
8шт.
8
153575C91
SUPPORT ASSY, counter balance weight
1шт.
9
153611C1
BAR, counter balance weight, Long, 40 lb
8шт.
10
153578C91
CHANNEL ASSY, counter balance weight right
1шт.
11
161241C1
ANGLE, counter balance weight
2шт.
12
18726R1
BOLT
5/8 x 5 C-Z sq-nk crg
2шт.
12
21283R1
BOLT,5/8" x 8", Gr 1
5/8 x 8 C-Z sq-nk crg
2шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 C-Z hex.
4шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
13
161239C1
FILLER, counter balance weight
4шт.
14
161240C1
BAR, counter balance weight, 30 lb
15шт.
15
161242C1
ANGLE, counter balance weight
1шт.
16
161243C1
SECTION, counter balance weight
1шт.
