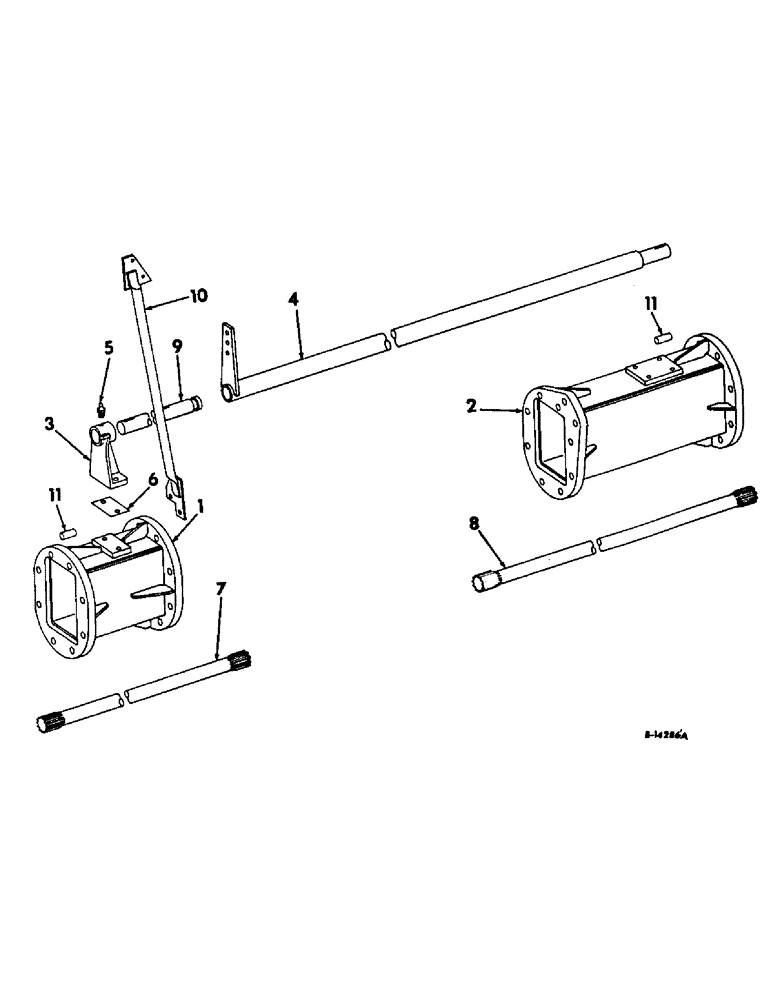

Запчасти Case IH 403 (040) - MAIN AXLE EXTENSION (25) - FRONT AXLE SYSTEM

1

151240C91

EXTENSION ASSY, main axle LH, For 18.4 x 26 main wheel tires

1шт.

1

151414C91

EXTENSION ASSY, main axle LH, For 23.1 x 26 main wheel tires

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 C-Z hex-hd

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 znd cap

5шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8 x 2-1/2 C-Z cap

2шт.

21434R1

NUT,5/8"-11, G8

5/8 C-Z hex.

9шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

4шт.

2

151243C91

EXTENSION ASSY, main axle RH, For 18.4 x 26 main wheel tires

1шт.

2

165927C91

EXTENSION ASSY, main axle RH, For 23.1 x 26 main wheel tires

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 znp cap

6шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8 x 2-1/2 C-Z cap

1шт.

21434R1

NUT,5/8"-11, G8

5/8 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

4шт.

3

150428C1

HOUSING, wheel brake LH pivot

1шт.

4

151246C91

PIPE ASSY, wheel brake RH torque, For 18.4 x 26 main wheel tires

1шт.

4

165934C91

PIPE ASSY, wheel brake RH torque, For 23.1 x 26 main wheel tires

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

6

150427C1

STRAP, wheel brake LH pivot housing

4шт.

7

151244C1

SHAFT, axle drive LH, For 18.4 x 26 main wheel tires

1шт.

7

150422C1

SHAFT, axle drive LH, For 23.1 x 26 main wheel tires

1шт.

8

151245C1

SHAFT, axle drive RH, For 18.4 x 26 main wheel tires

1шт.

8

151234C1

SHAFT, axle drive RH, For 23.1 x 26 main wheel tires

1шт.

9

151248C1

SHAFT, wheel brake LH, For 18.4 x 26 main wheel tires

1шт.

9

150426C1

SHAFT, wheel brake LH, For 23.1 x 26 main wheel tires

1шт.

10

150952C91

BRACE ASSY, main axle extension

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 X 1-1/4 C-Z MACH BOLT W/NUT

2шт.

629358R1

NUT

5/8 NUT

1шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

5/8 X 2-3/4 C-Z CAP SCREW

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

54700R1

DOWEL

main axle extension

8шт.
