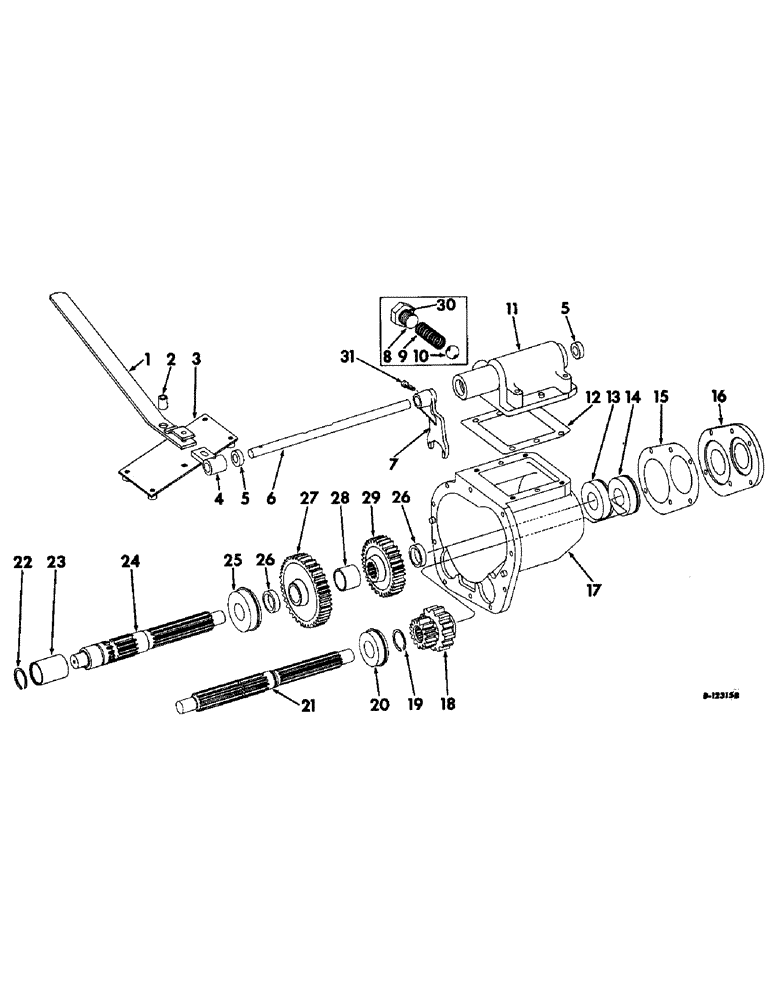

Запчасти Case IH 403 (048) - TWO-SPEED GEAR BOX ATTACHMENT (21) - TRANSMISSION

1

589679R92

LEVER W/ARM, shift

1шт.

1/8 X 3/4 COT. PIN

1шт.

L1125

3/8 X 1-3/16 DLD PIN

1шт.

2

W6992

BUSHING

shift lever

1шт.

3

589674R91

SUPPORT W/SPACER, shifting bellcrank

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

3/8 NUT

2шт.

3/8 LOCK WASHER

1шт.

PO10532

WASHER

13/32 X 1-1/4 X 11 GA WASHER

1шт.

551656R1

WASHER

23/32 X 1-1/4 X 11 GA WASHER

1шт.

4

589677R91

ARM W/HUB, shift rail

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

5

111710R91

SEAL

OIL SEAL, shift rail

2шт.

6

589672R1

RAIL, shifter

1шт.

7

574904R1

FORK

SHIFT

1шт.

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

3/8-24NF X 7/8 SET SCREW

3шт.

3/8-24NF JAM NUT

3шт.

8

9410358

PLUG

shift lock ball spring

1шт.

9

573982R1

SPRING

ball detention

1шт.

10

16016R1

BALL

gear shift lock, 1/2

1шт.

11

589663R11

COVER W/DOWEL ASSY, shifter rail

1шт.

3/8 X 7/8 CAP SCREW

2шт.

379443R1

BOLT,3/8" - 16 x 2"

3/8 X 2 NYLOCK CAP SCREW

2шт.

443770

5/16 X 3/4 DOWEL PIN

2шт.

12

589671R1

GASKET, shift rail cover

1шт.

13

ST666

BEARING, intermediate shaft outer

1шт.

14

ST665

BEARING, input shaft outer

1шт.

15

589673R1

GASKET, gear case end cover

1шт.

16

589664R1

COVER, two speed gear case end

1шт.

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

5/16 X 7/8 CAP SCREW

6шт.

17

589662R11

CASE W/PIN ASSY, two speed gear

1шт.

181421R1

BOLT,Hex, 3/8" - 16 x 1 1/8", w/ Nylon Pellet

3/8 X 1-1/8 NYLOCK CAP SCREW

9шт.

3/8 X 2 CAP SCREW

1шт.

141262

PIN,7/16" x 7/8"

7/16 X 7/8 DOWEL PIN

2шт.

3/8 LOCK WASHER

10шт.

18

589667R1

GEAR, change drive pinion, 15-T and 23-T

1шт.

19

560126R1

RING, SNAP

SNAP RING, drive shaft

2шт.

20

379437R91

BEARING ASSY

BEARING, input shaft center

1шт.

21

379477R1

SHAFT, input drive

1шт.

22

573984R1

SNAP RING

intermediate shaft

1шт.

23

379461R1

SPACER

intermediate shaft, LH

1шт.

24

381161R91

SHAFT W/STUD, intermediate transmission

1шт.

102467

LUBE NIPPLE

1/2-20UNF SLT NUT

1шт.

1/8 X 7/8 COT. PIN

1шт.

380998R1

STUD, washer retaining

1шт.

17/32 X 1-1/4 X 3/16 WASHER

1шт.

25

379464R91

BEARING ASSY

intermediate shaft center

1шт.

26

573966R1

SPACER

2шт.

27

379469R1

GEAR, change driven, 40-T

1шт.

28

589670R1

SPACER, intermediate shaft center

1шт.

29

589666R1

GEAR, intermediate shaft driven outer, 32-T

1шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, shift lock ball spring plug

1шт.

31

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, gear shifter fork set

1шт.

NUT, 3/8-24NF hex. jam

1шт.
