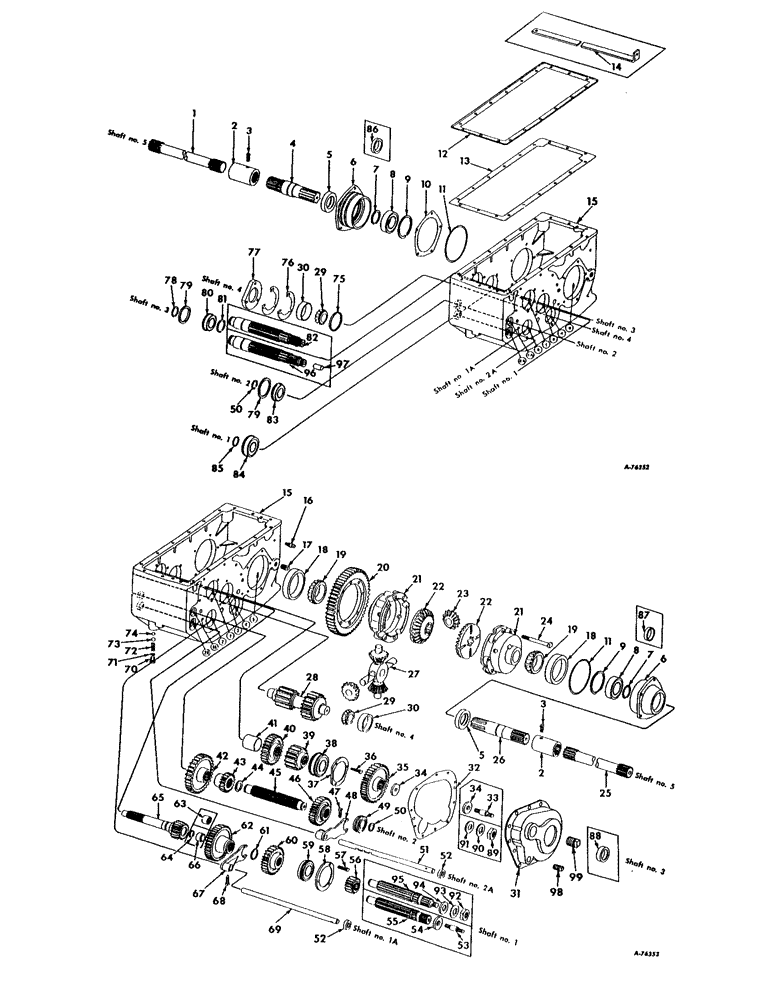

Запчасти Case IH 403 (042) - AXLE, TRANSMISSION (21) - TRANSMISSION

1

574918R1

SHAFT, axle drive LH

1шт.

2

573957R2

COUPLING

SLEEVE, axle drive shaft

2шт.

3

937589R1

SCREW,Set, 7/16" - 14 x 5/8", Steel

axle drive shaft sleeve set, wire, axle drive shaft sleeve set, Order from bulk stock

2шт.

4

379435R1

SHAFT

differential LH

1шт.

5

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

OIL SEAL, differential cage bearing

2шт.

6

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

differential bearing

1шт.

181421R1

BOLT,Hex, 3/8" - 16 x 1 1/8", w/ Nylon Pellet

3/8 X 1-1/8 NYLOCK CD-PLTD CAP SCREW

10шт.

7

379511R1

SNAP RING,#177, 1.657", Ext

differential shaft

2шт.

8

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING, differential cage

2шт.

9

379485R1

RING

SNAP RING, differential bearing cage

2шт.

10

573976R1

DISC

SHIM, differential bearing cage, light

1шт.

10

573977R1

SHIM

differential bearing cage, medium

1шт.

10

573978R1

SHIM

differential bearing cage, heavy

1шт.

11

297060R1

O-RING

differential bearing cage

2шт.

12

574913R1

COVER

transmission case

1шт.

3/8 X 3/4 CAP SCREW

17шт.

3/8 X 1-1/4 CAP SCREW

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

3/8 EXTERNAL-TOOTH LOCK WASHER

18шт.

13

573998R2

GASKET

transmission case cover

1шт.

14

589562R1

STIFFENER, transmission shift bracket lower

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

15

379452R2

CASE

transmission

1шт.

103875

3/4 SQ SOC-HD PIPE PLUG

1шт.

16

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

transmission case oil

1шт.

17

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 auto-sq-hd pipe

4шт.

18

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

CUP, differential roller bearing

2шт.

19

ST2026

BEARING ASSY,63.5mm ID x 21.996mm

CONE ASSY, differential roller bearing

2шт.

20

574935R1

GEAR

differential driven, 57-T, 2195 and below

1шт.

20

GEAR, differential drive, 57-T, Order service package 382906R91, ref no. 21, 2196 and above

1шт.

21

574982R11

CASE ASSY, differential, 2195 and below

1шт.

21

382906R91

KIT

PACKAGE, differential case and gear, 2196 and above

1шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

thick hex

8шт.

382911R2

BOLT,1/2" - 20 x 3 3/4"

differential case

8шт.

WIRE, differential nut retainer, .042 x 8 in. long, Order from bulk stock

1шт.

22

360962R2

GEAR

differential bevel, 28-T

2шт.

23

360961R1

GEAR

PINION, differential bevel, 15-T

4шт.

24

380942R1

BOLT

differential case, 2195 and below

8шт.

2094YA

7/16 HIGH NUT

8шт.

24

382911R2

BOLT,1/2" - 20 x 3 3/4"

differential case, 2196 and above

8шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

1/2 THICK NUT

8шт.

WIRE, 8-1/2 in. long, Order from bulk stock

1шт.

25

574916R1

SHAFT, axle drive RH

1шт.

26

380026R1

SHAFT

differential RH

1шт.

27

388093R1

U-JOINT SPIDER

SPIDER, differential

1шт.

28

379453R2

SHAFT

differential pinion

1шт.

29

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

CONE ASSY, differential pinion shaft bearing

2шт.

30

50213V

BEARING CUP

CUP, differential pinion shaft bearing

1шт.

31

383696R11

COVER W/PIN ASSY, change, Not for use with two-speed gear box, serial no. 13062 and below

1шт.

31

395647R11

COVER

W/PIN ASSY, change, Not for use with two-speed gear box, serial no. 13063 and above

1шт.

141262

PIN,7/16" x 7/8"

7/16 x 7/8 dowel

2шт.

181421R1

BOLT,Hex, 3/8" - 16 x 1 1/8", w/ Nylon Pellet

SCREW, 3/8 x 1-1/8 C-Z nylock

10шт.

32

573997R2

GASKET

change gear cover

1шт.

33

380998R1

STUD, washer retaining, Not for use with two-speed gear box, Serial no. 2195 and below

1шт.

1/2-20 UNF SLT NUT

1шт.

1/8 X 7/8 COT. PIN

1шт.

34

560029R91

WASHER W/PIN, transmission intermediate shaft, Not for use with two-speed gear box, Serial no. 2196 and below

1шт.

35

379467R1

GEAR

change driven, 28-T, 27/28 gear ratio, Not for use w/two-speed gear box

1шт.

35

379468R1

GEAR, change driven 34-T, slow speed 21/34 gear ratio for grain not two speed gear box or hydrostatic ground drive, 21/34 gear ratio for rice w/tires and hydrostatic ground drive

1шт.

35

379469R1

GEAR, change driven, 40-T, 15/40 gear ratio for rice, two speed gear box 15/40 gear ratio and 23/32 gear ratio, Not hydrostatic ground drive

1шт.

36

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

SCREW, 5/16 x 7/8 nylock cap

3шт.

37

379466R1

CAGE

intermediate shaft bearing RH

1шт.

38

379464R91

BEARING ASSY

BEARING, intermediate shaft RH

1шт.

39

574925R2

GEAR

intermediate drive pinion 17-T

1шт.

40

379462R1

GEAR

intermediate and reverse drive, 30-T, Not for hydrostatic ground drive

1шт.

41

379461R1

SPACER

intermediate shaft LH, Not for hydrostatic ground drive

1шт.

42

379495R1

GEAR

transmission input, 44-T

1шт.

43

379472R1

GEAR

PINION, first speed drive, 18-T

1шт.

44

560126R1

RING, SNAP

SNAP RING, transmission main shaft brg

1шт.

45

379470R1

SHAFT

transmission main, Serial no. 13062 and below

1шт.

45

395648R11

SHAFT

ASSY, transmission main, Includes ref no. 97, Serial no. 13063 and above

1шт.

46

379473R1

GEAR

Used as second and reverse drive not hydrostatic ground drive, Used as second speed drive for hydrostatic ground drive

1шт.

47

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

48

574905R1

FORK

first and third gear shifter

1шт.

49

379474R91

BEARING ASSY

transmission main shaft RH

1шт.

50

370504R1

RING

SNAP RING, transmission main shaft brg

1шт.

51

574903R2

RAIL, first and third gear shifter

1шт.

52

111710R91

SEAL

OIL SEAL, shifter rail

4шт.

53

380998R1

STUD, washer retaining, Not for use with two-speed gear box, Serial no. 2195 and below

1шт.

1/2-20UNF SLT NUT

1шт.

1/8 X 7/8 COT. PIN

1шт.

54

560029R91

WASHER W/PIN ASSY, input drive shaft, Not for use with two-speed gear box, Serial no. 2195 and below

1шт.

55

379476R11

SHAFT W/STUD, input drive, Not for use with two-speed gear box, Serial no. 2195 and below

1шт.

56

574917R1

GEAR WHEEL

GEAR, change drive pinion 27-T, regular speed 27/28 gear ratio, grain and track, Not two speed box

1шт.

56

573999R1

GEAR, change drive pinion 21-T, slow speed 21/34 gear ratio, grain, Not hydrostatic ground drive, 21/34 gear ratio, rice w/tires for hydrostatic ground drive, Not two speed gear box

1шт.

56

574004R1

GEAR, change drive pinion 15-T, 15/40 gear ratio, rice, Not hydrostatic ground drive or two speed gear box

1шт.

56

589667R1

GEAR, change drive pinion 15-T and 23-T, two speed gear box, 15/40 and 23/32 gear ratio, Not hydrostatic ground drive

1шт.

57

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

SCREW W/NYLON PELLET, hex-hd cap

3шт.

58

379481R1

RETAINER

input shaft RH brg

1шт.

59

379437R91

BEARING ASSY

input drive shaft

1шт.

60

379479R2

GEAR

second speed drive, 30-T

1шт.

61

560126R1

RING, SNAP

SNAP RING, input drive shaft

1шт.

62

379478R1

GEAR

first and third sliding, 46-T and 20-T

1шт.

63

NOT USED

1шт.

64

555601R1

RING, SNAP

SNAP RING, input drive shaft

1шт.

65

379482R1

SHAFT, input pinion, Not hydrostatic ground drive

1шт.

65

389439R1

SHAFT, input pinion, For hydrostatic ground drive

1шт.

66

358034R91

NEEDLE BEARING

BEARING ASSY, input pinion shaft

1шт.

67

574904R1

FORK

reverse and second gear shifter

1шт.

68

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

69

574902R1

RAIL

reverse and second shifter

1шт.

70

9410358

PLUG

shift lock ball spring

2шт.

71

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, shift lock ball spring plug

1шт.

72

588801R1

SPRING

gear shift lock ball

2шт.

73

16016R1

BALL

gear shift lock, 1/2 dia

2шт.

74

16014R1

BALL

gear shift lock, 7/16 dia

2шт.

75

379458R1

RING

differential pinion shaft cap LH seal

1шт.

76

381222R1

SHIM

differential pinion LH, .007

2шт.

77

573971R2

CAP

differential pinion shaft

1шт.

181421R1

BOLT,Hex, 3/8" - 16 x 1 1/8", w/ Nylon Pellet

3/8 X 1-1/8 NYLOCK CD-PLTD SCREW

3шт.

78

370504R1

RING

SNAP RING, intermediate shaft

1шт.

79

379433R1

RING

transmission case seal

2шт.

80

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission intermediate shaft LH

1шт.

81

573984R1

SNAP RING

transmission intermediate shaft

1шт.

82

379459R11

SHAFT W/STUD, transmission intermediate, Not for use with two-speed gear box, Serial no. 2195 and below

1шт.

83

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission main shaft LH

1шт.

84

379440R91

NO LONGER SERVICED

BEARING, input pinion shaft inner

1шт.

85

359141R1

RING, SNAP

SNAP RING, input shaft bearing left

1шт.

86

NOT USED

1шт.

87

NOT USED

1шт.

88

NOT USED

1шт.

89

382879R1

NUT

transmission intermediate shaft, Not for use with two-speed gear box, Serial no. 2196 and above

1шт.

90

382900R1

LOCK WASHER

lock transmission intermediate shaft, Not for use with two-speed gear box, Serial no. 2196 and above

1шт.

91

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

transmission intermediate shaft, Not for use with two-speed gear box, Serial no. 2196 and above

1шт.

92

382879R1

NUT

input drive shaft, Not for use with two-speed gear box, Serial no. 2196 and above

1шт.

93

382900R1

LOCK WASHER

input drive shaft, Not for use with two-speed gear box, Serial no. 2196 and above

1шт.

94

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

input drive shaft, Not for use with two-speed gear box, Serial no. 2196 and above

1шт.

95

382946R1

SHAFT

input drive, Not for use with two-speed gear box, Serial no. 2196 and above

1шт.

96

395553R1

SHAFT

transmission intermediate, Not for use with two-speed gear box, Serial no. 2196 and above

1шт.

96

381161R91

SHAFT ASSY, transmission intermediate, Includes ref no 97, For two speed gear box

1шт.

97

380998R1

STUD, washer retaining

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

PO10535

WASHER

17/32 X 1-3/4 X 3/16 WASHER

1шт.

98

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd filler

1шт.

99

30443V

PLUG

13/16-20 hex-hd

1шт.
