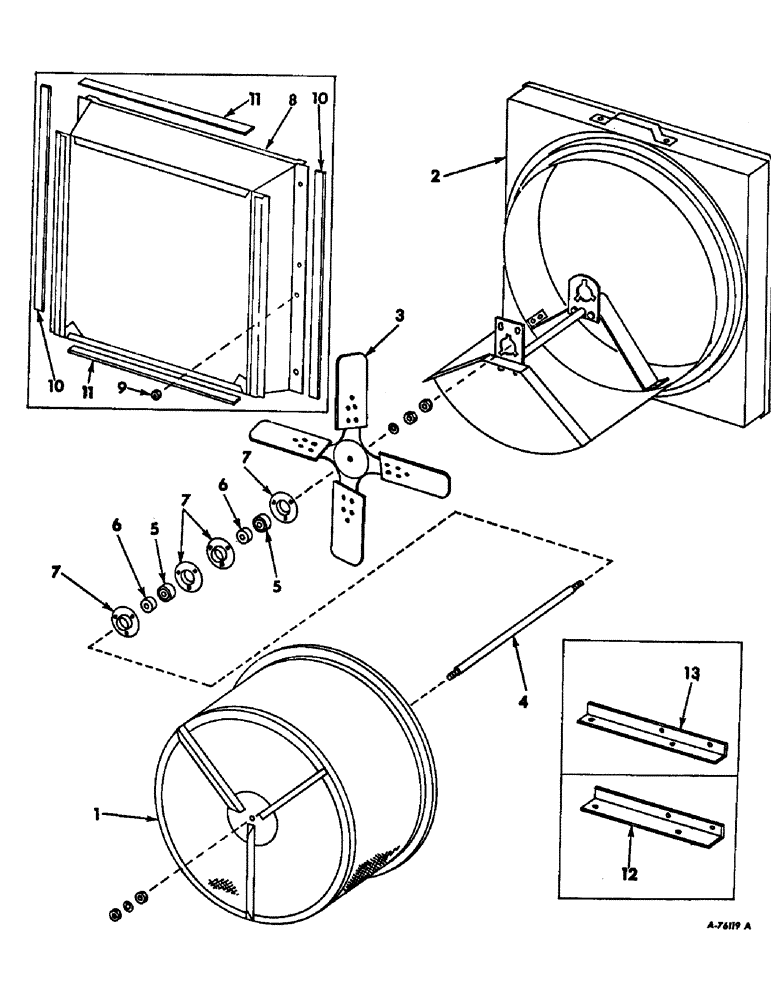

Запчасти Case IH 403 (369) - RADIATOR ROTARY AIR SCREEN, FOR D-301 ENGINE, COMBINE SERIAL NO. 9956 AND BELOW (10) - ENGINE

1

153756C91

SIEVE

SCREEN ASSY, radiator rotary air

1шт.

2

153757C91

HOUSING ASSY, screen

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

153758C91

BLADE ASSY, fan

1шт.

4

153759C1

SHAFT, fan

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING, fan shaft ball

2шт.

6

468391R11

COLLAR

ASSY, fan shaft brg locking

2шт.

7

661147R1

FLANGED BEARING

fan shaft brg

4шт.

12635R1

BOLT, 1/4-20 x 3/4 C-Z sq-nk crg

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

153101C91

SHROUD ASSY, radiator rotary air screen, Serial no. 7223 and below

1шт.

8

153111C91

SHROUD ASSY, radiator rotary air screen, Serial no., Serial Range: 7224-9956

1шт.

181635

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, 3/8-24 x 3/4 C-Z hex-hd cap

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

8шт.

9

111543R91

NUT, 3/8-24 speed grip

8шт.

10

318105R1

SEAL, shroud side, Serial no. 7223 and below

2шт.

10

388837R1

SEAL, shroud side, Serial no., Serial Range: 7224-9956

2шт.

11

NOT USED IN THIS APPLICATION

1шт.

12

153861C1

ANGLE, engine cover support, Serial no. 7223 and below

1шт.

13

153862C1

ANGLE, engine cover support, Serial no., Serial Range: 7224-9956

1шт.
