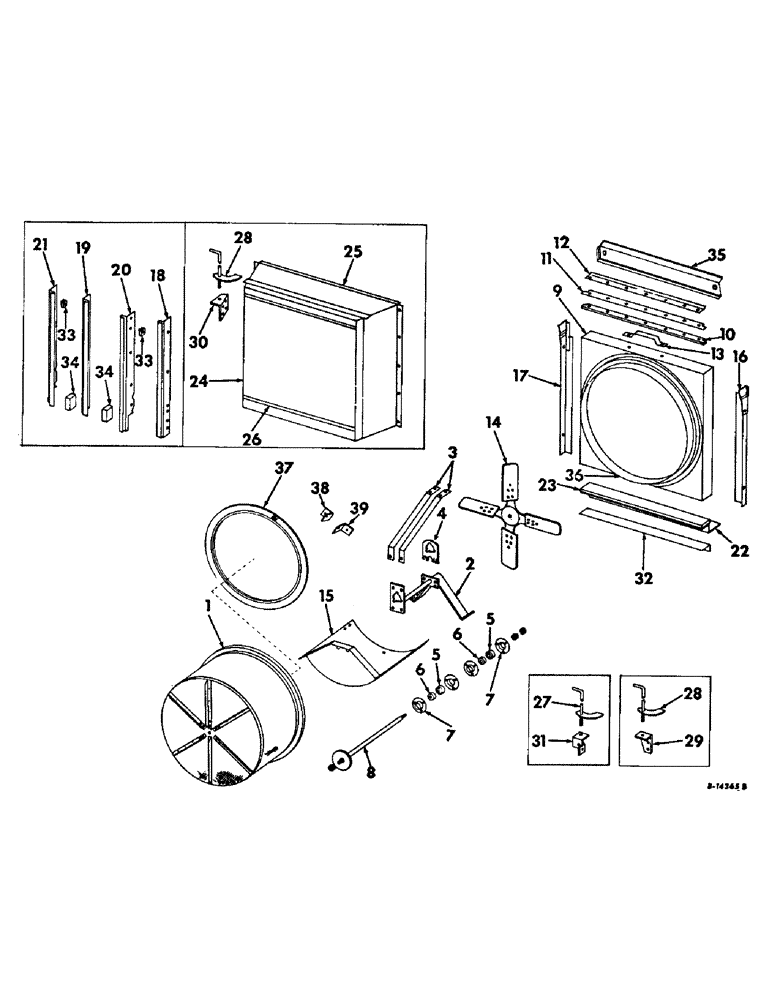

Запчасти Case IH 403 (367) - RADIATOR ROTARY AIR SCREEN, FOR C-263 ENGINE, COMBINE SERIAL NO. 9957 AND ABOVE (10) - ENGINE

1

159702C91

SCREEN

ASSY, radiator rotating fan

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z truss-hd

12шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

12шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

13/16 x 9/32 truss-hd

18шт.

2

152806C91

SUPPORT ASSY, radiator screen brg

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

3

154885C1

BRACE

radiator screen brg support

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619885R1

WASHER, 11/32 x 3/4 x 16 ga

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

4

153570C1

BRACKET

radiator screen brg support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619885R1

WASHER, 11/32 x 3/4 x 16 ga

2шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING ASSY, ball

2шт.

6

468391R11

COLLAR

W/SET SCREW, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/2 hex-soc-hd cup-pt set

2шт.

7

661147R1

FLANGED BEARING

rotating sieve brg

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

159703C91

ROD

ASSY, radiator rotating sieve

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

3шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 C-Z int-tooth lock

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

9

153664C91

SHROUD ASSY, radiator rotating screen, Serial no. 16111 and below

1шт.

9

161419C91

SHROUD ASSY, radiator rotating screen, Serial no. 16112 and above

1шт.

155499C1

RIVET

3/16 x 1/4 pop

2шт.

10

154028C1

SEAL, sponge rubber

1шт.

11

154029C1

STRAP, seal

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 C-Z hex-hd

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

12

NOT USED IN THIS APPLICATION

1шт.

13

614920R1

HANDLE, shroud

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

161207C91

FAN

ASSY, 4 blade

2шт.

15

152909C91

DEFLECTOR ASSY, radiator screen

1шт.

16

153798C91

ANGLE ASSY, screen slide support left

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

153799C91

ANGLE ASSY, screen slide support right

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

153656C1

SLIDE, radiator screen left

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

153657C1

SLIDE, radiator screen right

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

NOT USED IN THIS APPLICATION

1шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

153658C11

REINFORCEMENT ASSY, radiator screen support

1шт.

23

154277C1

SEAL, sponge rubber

1шт.

24

NOT USED IN THIS APPLICATION

1шт.

25

NOT USED IN THIS APPLICATION

1шт.

26

318106R1

SEAL, sta foam

1шт.

27

NOT USED IN THIS APPLICATION

1шт.

28

154139C91

LEVER

ASSY, rotating fan support

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 C-Z hex. jam

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

29

154136C1

ANGLE, rotating fan support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

NOT USED IN THIS APPLICATION

1шт.

31

NOT USED IN THIS APPLICATION

1шт.

32

NOT USED IN THIS APPLICATION

1шт.

33

NOT USED IN THIS APPLICATION

1шт.

34

NOT USED IN THIS APPLICATION

1шт.

35

161263C11

ANGLE ASSY, radiator top seal

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

161420C1

RING

brush seal

1шт.

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW, no. 8 znp hex-hd washer face self drilling

8шт.

37

161010C91

BRUSH ASSY.

BRUSH ASSY, rotary screen, Includes ref nos. 38 & 39

1шт.

38

161011C1

CLIP

rotary screen brush short

1шт.

39

161012C1

CLIP, rotary screen brush long

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 C-Z pen-hd slt mach

1шт.

19910R1

LOCK NUT

no. 10 C-Z lock

1шт.
