(364[1]) - AIR SCREEN EXTENSION, W/PERFORATED SIDES, FOR C-263 & D-301 ENGINES, COMBINE SERIAL NO. 4643 & BELOW

Запчасти Case IH 403 (364[1]) - AIR SCREEN EXTENSION, W/PERFORATED SIDES, FOR C-263 & D-301 ENGINES, COMBINE SERIAL NO. 4643 & BELOW (10) - ENGINE

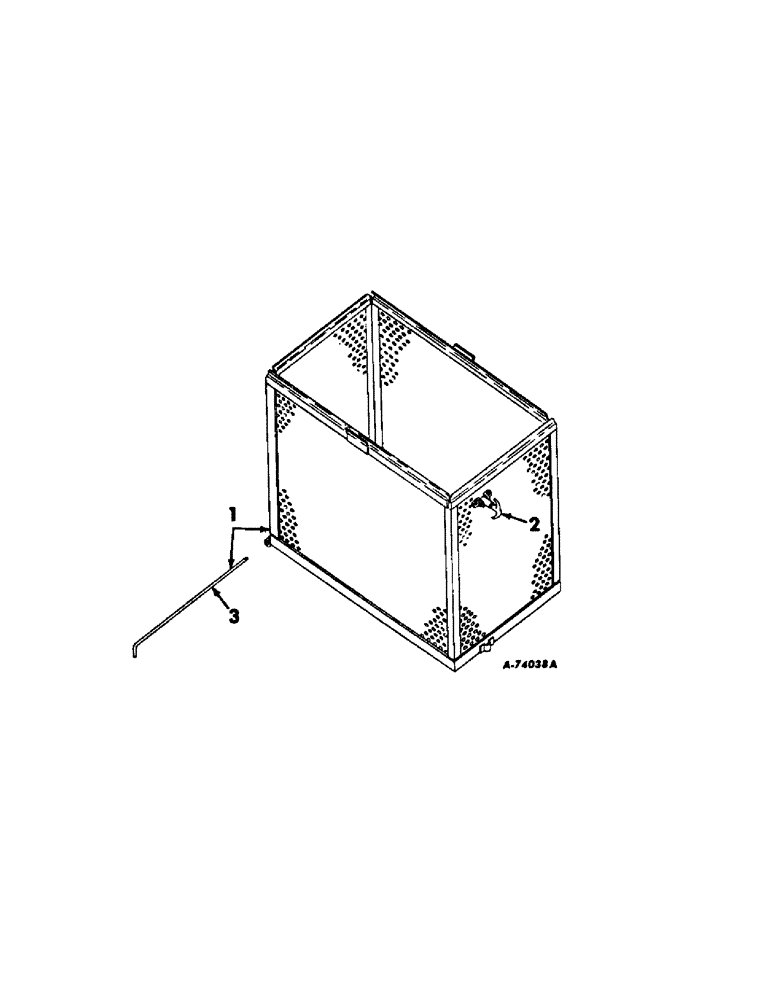

Схема запчастей Case IH 403 - (364[1]) - AIR SCREEN EXTENSION, W/PERFORATED SIDES, FOR C-263 & D-301 ENGINES, COMBINE SERIAL NO. 4643 & BELOW (10) - ENGINE
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

EXTENSION ASSY, air screen, Serviced only as a machine attachment

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screen

1шт.

135753

3/16 X 7/16 OV-HD RIVET

2шт.

3

316458R1

PIN, air screen extension hinge

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.
