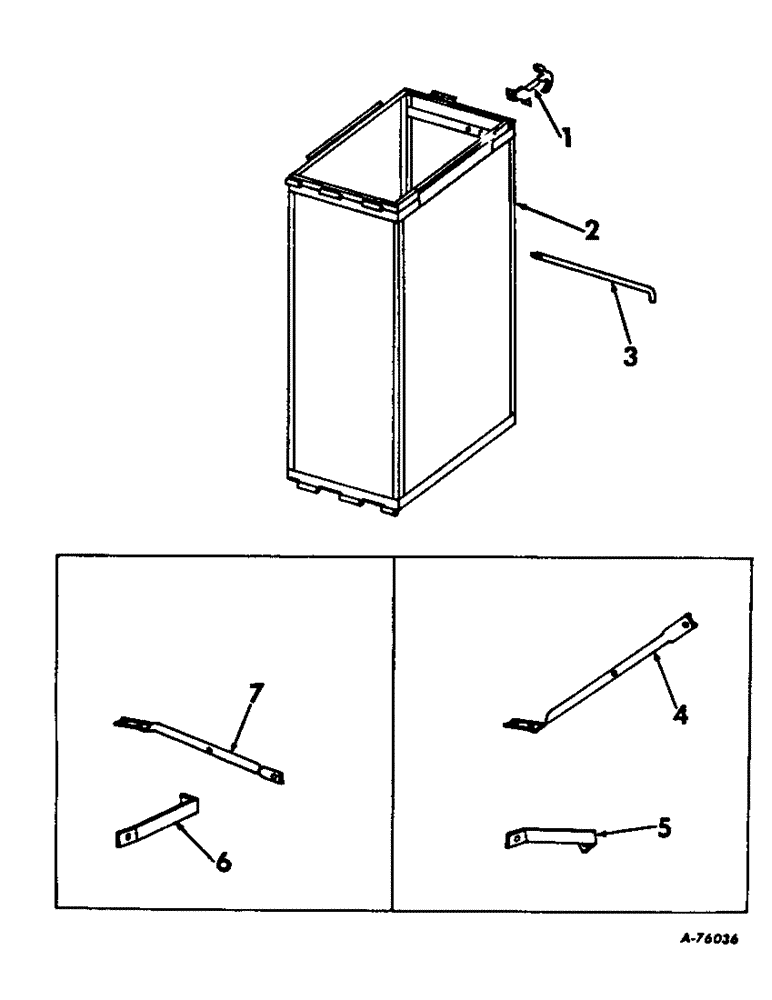

Запчасти Case IH 403 (363) - AIR SCREEN EXTENSION, WITH SOLID SIDES, FOR C-263 AND D-301 ENGINES COMBINE SERIAL NO.4644 TO 7223 (10) - ENGINE

1

353443R91

LATCH ASSY.

LATCH ASSY, screen

1шт.

135753

3/16 X 7/16 OVAL-HD RIVET

2шт.

2

EXTENSION ASSY, air screen, Serviced only as a machine att

1шт.

3

377772R1

PIN, screen

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

4

936819R1

PIPE, screen extension front, For machines not equipped with grain tank extension attachment

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

936821R1

BRACE, screen extension LH, For machines not equipped with grain tank extension attachment

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

936817R1

BRACE, screen extension LH brace, For machines equipped with grain tank extension attachment

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

936816R1

PIPE, screen extension front brace, For machines equipped with grain tank extension attachment

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8 X 3/4 C-Z MACH BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
