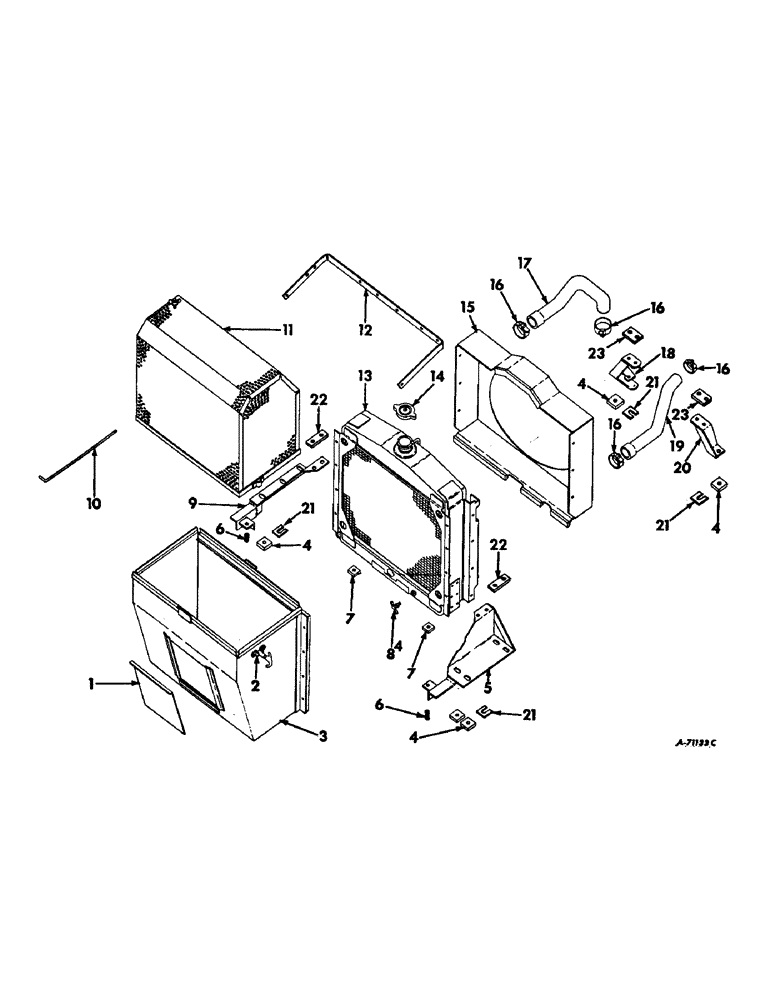

Запчасти Case IH 403 (357) - AIR CHUTE, RADIATOR AND CONNECTIONS, FOR D-282 ENGINE (10) - ENGINE

1

274733R1

DOOR, air chute

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screener

1шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 X 3/8 OVAL-HD RIVET

2шт.

3

379964R91

CHUTE ASSY, air

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 X 1/2 CAP SCREW

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

633222R1

INSULATOR BLOCK

PAD, support

5шт.

5

379978R11

BRACKET ASSY, front support LH

1шт.

196454R1

BOLT

5/8 X 1-3/4 BOLT W/INSERT

1шт.

19508R1

LOCK NUT,5/8"-11, GB

5/8 LOCK NUT

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 X 2-1/4 CAP SCREW

1шт.

6

67205D

SPRING

radiator mounting bolt

2шт.

7

312458R1

PAD, radiator mounting

4шт.

8

31729D

VALVE

COCK, radiator drain

1шт.

9

379981R11

BRACKET ASSY, front support RH

1шт.

196454R1

BOLT

5/8 X 1-3/4 BOLT W/INSERT

1шт.

19508R1

LOCK NUT,5/8"-11, GB

5/8 LOCK NUT

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 X 2-1/4 CAP SCREW

1шт.

10

377772R1

PIN, air screen hinge

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

11

377771R91

SCREEN ASSY, air

1шт.

126032

WING NUT,3/8"-16

3/8 WING NUT

1шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

12

379936R1

BRACE, radiator

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

179858

SUPPORT

7/16 X 1 CAP SCREW

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

379935R92

RADIATOR ASSY

1шт.

15143R1

BOLT,Sq Nk, 7/16" - 14 x 3"

7/16 X 3 CRG BOLT

2шт.

18526R1

LOCK NUT,7/16"-14, GB

7/16 ESNA ELASTIC STOP NUT

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

2шт.

14

361705R91

COVER

CAP, radiator pressure

1шт.

15

379957R21

SHROUD ASSY, fan

1шт.

179814

SPACER

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

17

379955R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 10.50", SAE 20R4 CLASS R, GRADE 1A

Inlet 2.00" ID, 2.12" ID x 10.50", SAE 20R4 CLASS R, GRADE 1A

1шт.

18

629849R91

SUPPORT ASSY, rear RH

1шт.

19

379956R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 13.12", SAE 20R4, CLASS R, GRADE 1A

Outlet 2.00" ID, 2.12" ID x 13.12", SAE 20R4, CLASS R, GRADE 1A

1шт.

20

629846R91

SUPPORT ASSY, rear LH

1шт.

21

570012R1

SHIM, engine support

4шт.

22

385874R1

PAD

front engine cover

2шт.

23

936521R1

PAD

engine rear

2шт.
