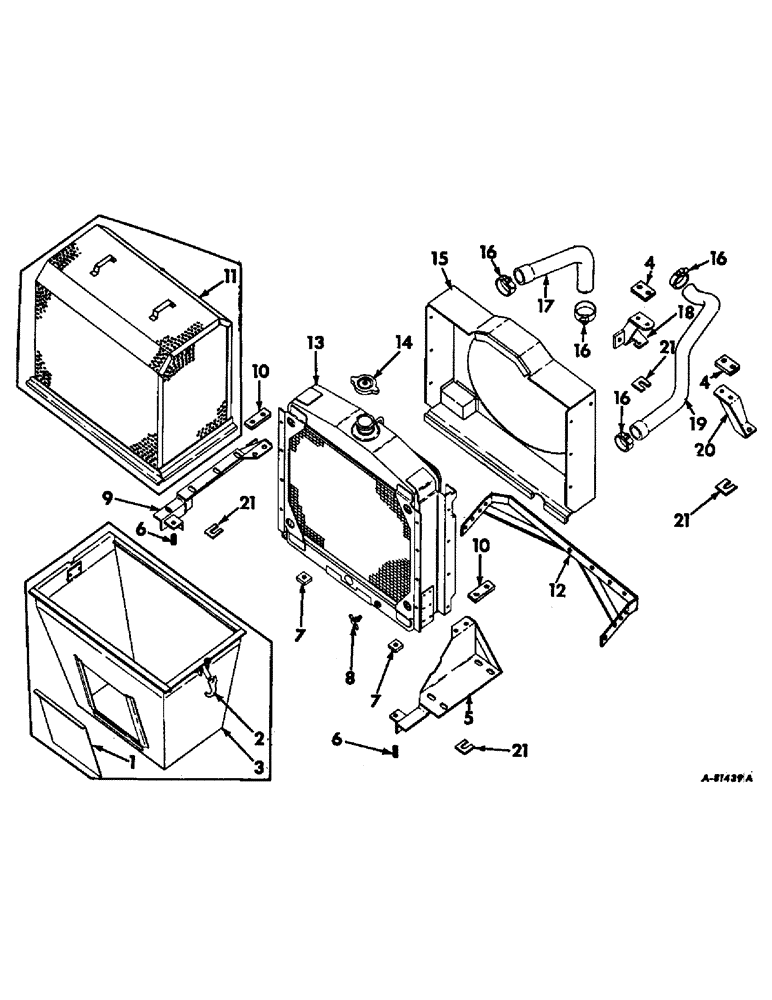

Запчасти Case IH 403 (353) - AIR CHUTE, RADIATOR AND CONNECTIONS, FOR C-263 ENGINE COMBINE SERIAL NO. 7224 AND ABOVE (10) - ENGINE

1

274703R1

DOOR, radiator air, Serial no. 9956 & below

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screener, Serial no. 9956 & below

2шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 x 3/8 oval-hd tubular

4шт.

3

387963R91

CHUTE ASSY, radiator air, Serial no. 9956 & below

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

936521R1

PAD

engine base rear

2шт.

5

387986R11

BRACKET ASSY, front support LH

1шт.

20552R1

BOLT W/INSERT, 5/8-11 x 1-3/4 hex-hd

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 ESNA lock

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

6

67205D

SPRING

radiator mounting bolt

2шт.

7

312458R1

PAD, radiator mounting

4шт.

8

31729D

VALVE

radiator drain

1шт.

9

387988R11

BRACKET ASSY, front support RH

1шт.

20552R1

BOLT W/INSERT, 5/8-11 x 1-3/4 hex-hd

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 ESNA lock

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

10

385874R1

PAD

front cover engine

2шт.

11

387969R91

SCREEN ASSY, radiator air, Serial no. 9956 & below

1шт.

12

389767R91

BRACE ASSY, radiator

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

13

397476R1

RADIATOR ASSY, Will work for 383935R92

1шт.

15055R1

BOLT, 7/16-14 x 1-3/4 short-sq-nk crg

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 ESNA lock

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

4шт.

14

361705R91

COVER

CAP, radiator pressure, Serial no. 14424 & below

1шт.

14

393229R91

CAP

radiator pressure, Serial no. 11425 & above

1шт.

15

387943R91

SHROUD ASSY, fan

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

17

387940R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 10.19", SAE 20R4, CLASS SC

Inlet elbow 2.00" ID, 2.12" ID x 10.19", SAE 20R4, CLASS SC

1шт.

18

150178C91

SUPPORT ASSY, engine right rear

1шт.

301055R1

BOLT, engine adjusting

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

114507

JAM NUT,Jam, 5/8"-11, G5

4шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2 ESNA stop

2шт.

19

387941R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

Outlet elbow, Will work for 379622R1 2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

1шт.

20

150849C91

SUPPORT ASSY, engine left rear

1шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2 ESNA stop

2шт.

21

570012R1

SHIM, engine support

4шт.
