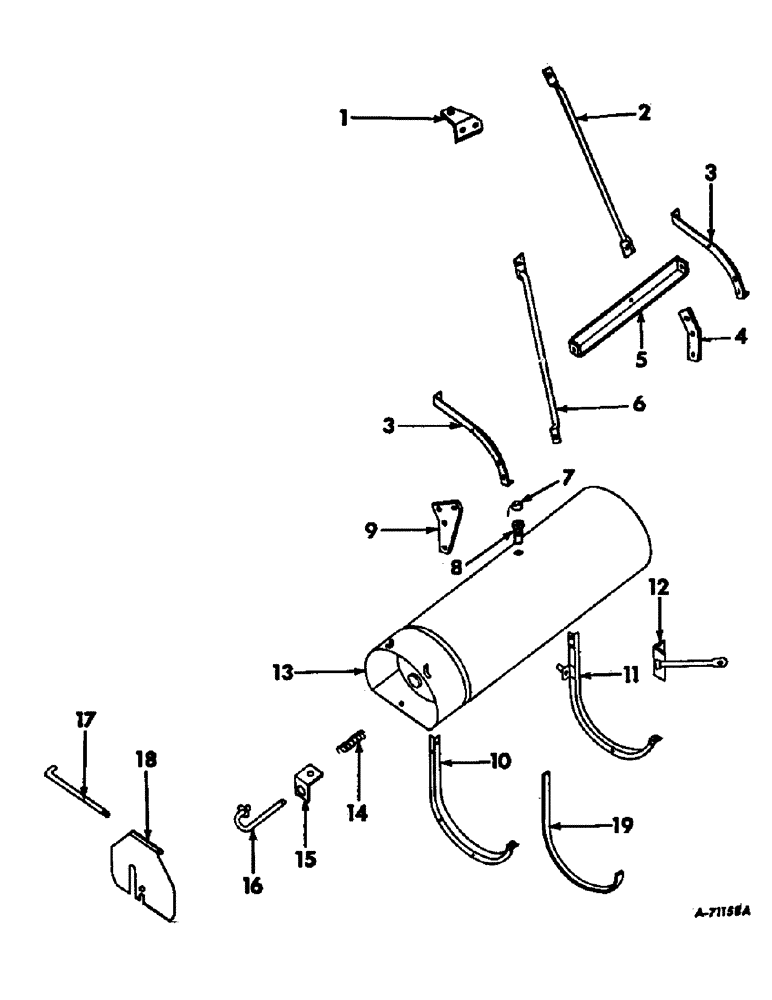

Запчасти Case IH 403 (347) - FUEL TANK AND SUPPORTS, FOR C-263 LP GAS ENGINES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
634340R1
PLATE, fuel tank front upper mounting
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 MACH BOLT
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
2
570049R1
BRACE, upper rear fuel tank mounting
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 MACH BOLT
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
3
570050R91
SUPPORT, upper fuel tank mounting
2шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 MACH BOLT
4шт.
17548R1
3/8 X 2-1/4 MACH BOLT
2шт.
102635
NUT,3/8"-16, G5
6шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
619856R1
WASHER
13/32 X 1 X 16 GA WASHER
4шт.
4
570057R91
SPACER, fuel tank mounting support
1шт.
17446R1
BOLT,3/8" - 16 x 1 1/4", Gr 2
3/8 X 1-1/4 MACH BOLT
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
5
570046R1
PLATE, fuel tank mounting rear support joining
1шт.
6
570044R1
BRACE, fuel front upper mounting
1шт.
7
368363R1
CAP W/CHAIN, rain, Optional w/363692R1
1шт.
7
363692R1
CAP W/CHAIN, rain, Optional w/368363R1
1шт.
8
363689R91
VALVE, relief, Optional w/363690R91
1шт.
8
363690R91
VALVE, relief, Optional w/363689R91
1шт.
9
570047R1
PLATE, fuel tank mounting front support joining
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 MACH BOLT
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
10
570056R91
SUPPORT W/PLATE, fuel tank lower front mounting
1шт.
17412R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
3/8 X 3/4 MACH BOLT
2шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 MACH BOLT
3шт.
17448R1
BOLT (SPREADER)
1/2 X 1-1/4 MACH BOLT
1шт.
102635
NUT,3/8"-16, G5
5шт.
102637
NUT,1/2"-13, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
5шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
11
634111R91
SUPPORT W/SPACER, fuel tank mounting lower rear
1шт.
17412R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
3/8 X 3/4 MACH BOLT
2шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 MACH BOLT
3шт.
17448R1
BOLT (SPREADER)
1/2 X 1-1/4 MACH BOLT
1шт.
102635
NUT,3/8"-16, G5
5шт.
NLS
NO LONGER SERVICED
7/16 NUT
1шт.
102637
NUT,1/2"-13, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
5шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
453231R1
WASHER
13/32 X 1-3/32 X 11 GA
1шт.
12
631559R91
BRACE W/PLATE, fuel tank mounting lower
1шт.
17627R1
BOLT
1/2 X 3 MACH BOLT
2шт.
102637
NUT,1/2"-13, G5
2шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
76730H
WASHER
17/32 X 1-1/2 X 11 GA WASHER
5шт.
13
570065R91
TANK W/GAUGES, fuel
1шт.
13
569999R91
TANK, less gauges, fuel
1шт.
14
E5641/2
SPRING, fuel tank cover lock
1шт.
15
661794R1
BRACKET, fuel tank cover lock
1шт.
17428R1
BOLT,Hex, 1/2"-13 x 1", G2, Full Thd
1/2 X 1 MACH BOLT
1шт.
102637
NUT,1/2"-13, G5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
16
661772R1
LOCK, fuel tank cover
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
17
574056R1
ROD, hinge, fuel tank cover
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
18
588100R11
COVER, fuel tank
1шт.
19
ORDER COTTON WEBBING FROM BULK STOCK 1 X 46 IN 2 PLY
1шт.
Выбрано товаров: 65
