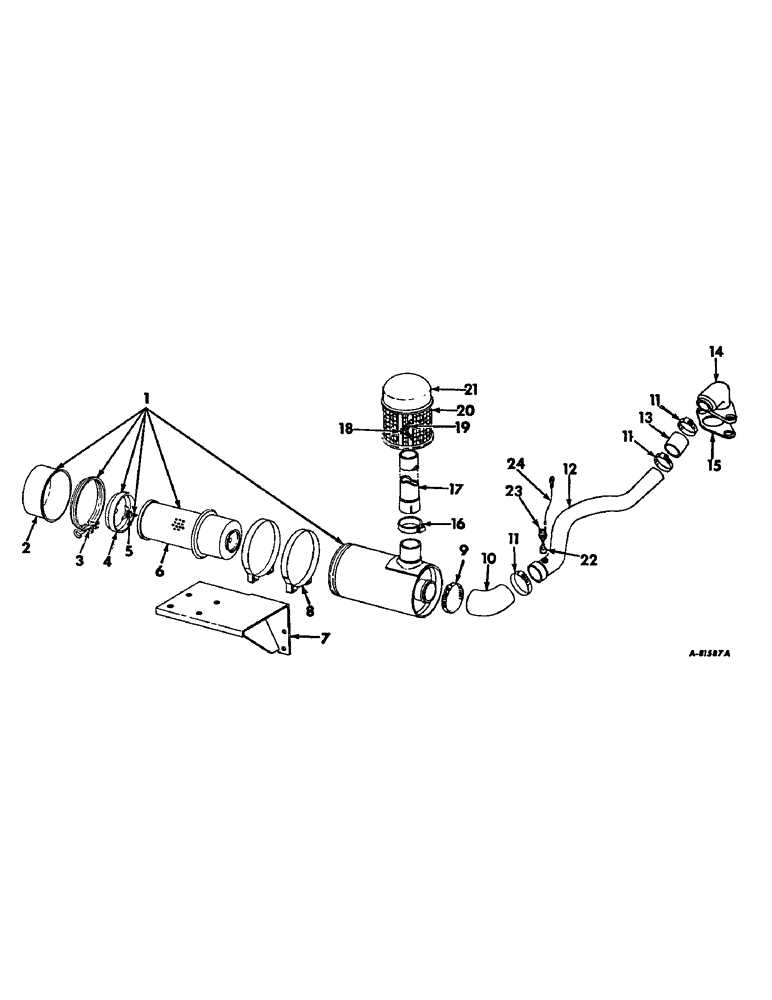

Запчасти Case IH 403 (344) - AIR CLEANER AND CONNECTIONS, DRY TYPE, FOR D-301 ENGINE COMBINE SERIAL NO. 7224 AND ABOVE (10) - ENGINE

394911R91

PARTS ACCESSORY, dry type air cleaner, Combine serial no. 7223 & below

1шт.

1

388025R92

CLEANER ASSY, dry type air

1шт.

2

389266R91

CUP ASSY

1шт.

3

59860D

CLAMP

ASSY

1шт.

4

389265R1

CUP ASSY.

SKIRT, baffle

1шт.

5

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

6

389263R92

FILTER, ELEMENT

ELEMENT ASSY

1шт.

7

388027R21

BRACKET ASSY, air cleaner

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

347672R91

BAND

ASSY, air cleaner

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner hose, Will work for 122323R91

1шт.

10

388445R1

HOSE

air cleaner pipe

1шт.

11

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner hose, Will work for 279029R91

3шт.

12

397271R91

PIPE W/PLUG, air cleaner, Will work for 379976R1

1шт.

13

275340R2

HOSE, air cleaner pipe

1шт.

14

379977R1

ELBOW, intake manifold

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

369497R2

GASKET

intake manifold elbow

1шт.

16

379974R91

CLAMP, pre-screener pipe

1шт.

17

383356R1

PIPE, pre-screener

1шт.

18

353758R1

CLIP

screen lock tension spring

1шт.

19

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

20

393364R91

SCREEN

W/CLIP & SPRINGS ASSY, pre-screener

1шт.

21

265515R91

PRECLEANER

PRE-SCREENER W/QUICK REMOVABLE SCREEN

1шт.

22

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

23

389682R92

SWITCH ASSY, electric air cleaner

1шт.

24

377120R92

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.
