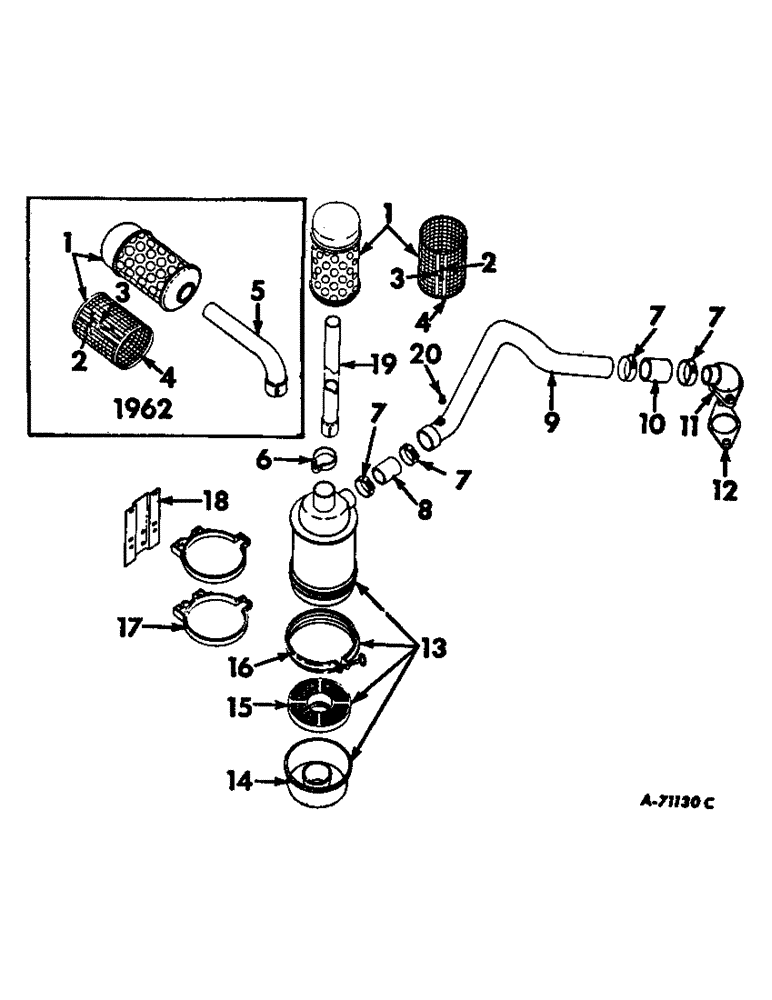

Запчасти Case IH 403 (343) - AIR CLEANER AND CONNECTIONS, FOR D-301 ENGINE, COMBINE SERIAL NO. 7223 AND BELOW (10) - ENGINE

1

265515R91

PRECLEANER

PRE-SCREENER ASSY

1шт.

2

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

3

353758R1

CLIP

screen lock tension spring

1шт.

4

266003R91

SCREEN W/CLIP AND SPRINGS ASSY, pre-screener

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

379974R91

CLAMP, pre-screener pipe

1шт.

7

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner pipe hose, Will work for 279029R91

4шт.

8

48918DA

HOSE

air cleaner rear

1шт.

9

397271R91

PIPE W/PLUG, air cleaner, Will work for 379976R1

1шт.

10

275340R2

HOSE, air cleaner pipe front

1шт.

11

379977R1

ELBOW, intake manifold

1шт.

17438R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 2

7/16 X 1-1/8 CAP SCREW

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

369497R2

GASKET

intake manifold elbow

1шт.

13

379967R91

CLEANER ASSY, air

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

14

379968R91

CUP ASSY, OIL

1шт.

15

379970R91

SCREEN ASSY, removable

1шт.

16

379969R91

CLAMP ASSY, oil cup retaining

1шт.

17

379971R91

BRACKET ASSY, air cleaner

2шт.

102635

NUT,3/8"-16, G5

4шт.

105606

NUT

3/8 SQ NUT

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

117309

3/8 X 1-1/4 FIL-HD MACH SCREW

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

18

316465R1

SUPPORT, air cleaner

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

383356R1

PIPE, pre-screener, Combine serial no., Serial Range: 2196-7223

1шт.

20

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd pipe

1шт.
