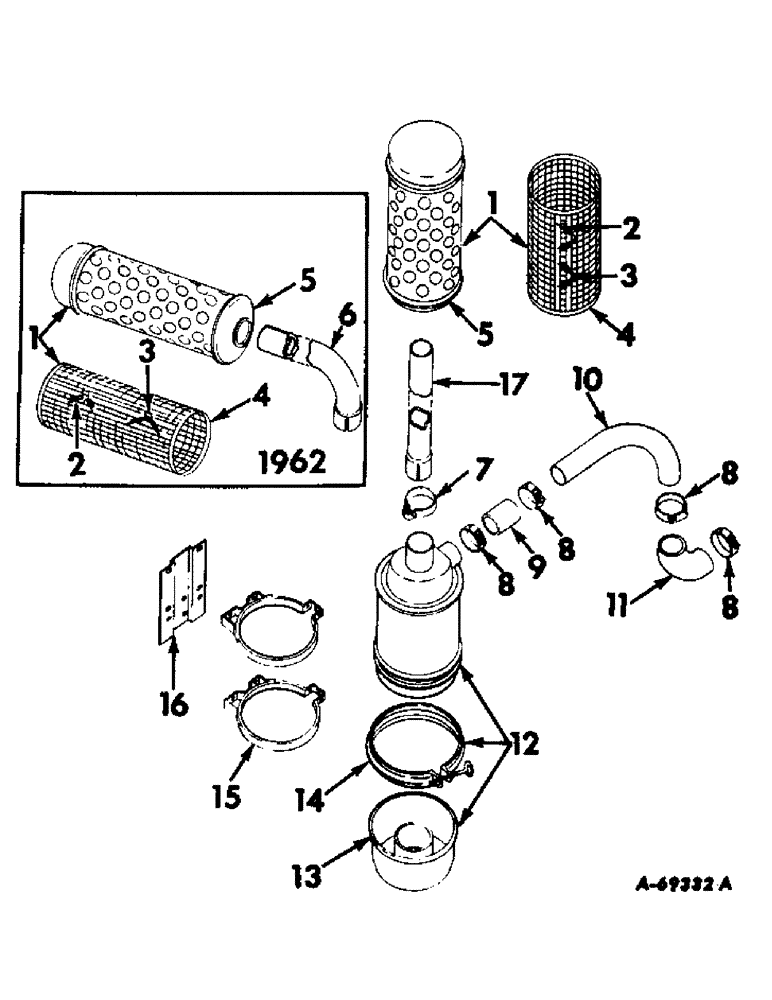

Запчасти Case IH 403 (339) - AIR CLEANER AND CONNECTIONS, FOR C-263 ENGINE, COMBINE SERIAL NO. 7223 AND BELOW (10) - ENGINE

1

356405R91

PRE-SCREENER ASSY

1шт.

2

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.

3

353758R1

CLIP

screen lock spring

2шт.

4

355146R91

SCREEN

W/CLIPS AND SPRINGS ASSY, pre-screener

1шт.

5

356675R91

BODY ASSY, pre-screener

1шт.

6

316468R1

PIPE, pre-screener, 1962

1шт.

7

379367R91

CLAMP ASSY, pre-screener pipe

1шт.

8

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP ASSY, air cleaner pipe hose

4шт.

9

363801R1

HOSE, air cleaner pip

1шт.

10

379915R1

PIPE, air cleaner, Gasoline

1шт.

10

380963R1

PIPE, air cleaner, LP gas

1шт.

11

377776R1

HOSE

ELBOW, air cleaner pipe

1шт.

12

319634R91

CLEANER ASSY, air

1шт.

13

355444R91

CUP ASSY, oil

1шт.

14

54269DA

CLAMP

ASSY, oil cup retaining

1шт.

15

55804DX

BRACKET ASSY, air cleaner

2шт.

102635

NUT,3/8"-16, G5

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

117295

5/16 X 1-1/4 SLT-FIL-HD MACH SCREW

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

316465R1

SUPPORT, air cleaner

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

383354R1

PIPE, pre-screener, 1963 & 1964

1шт.
