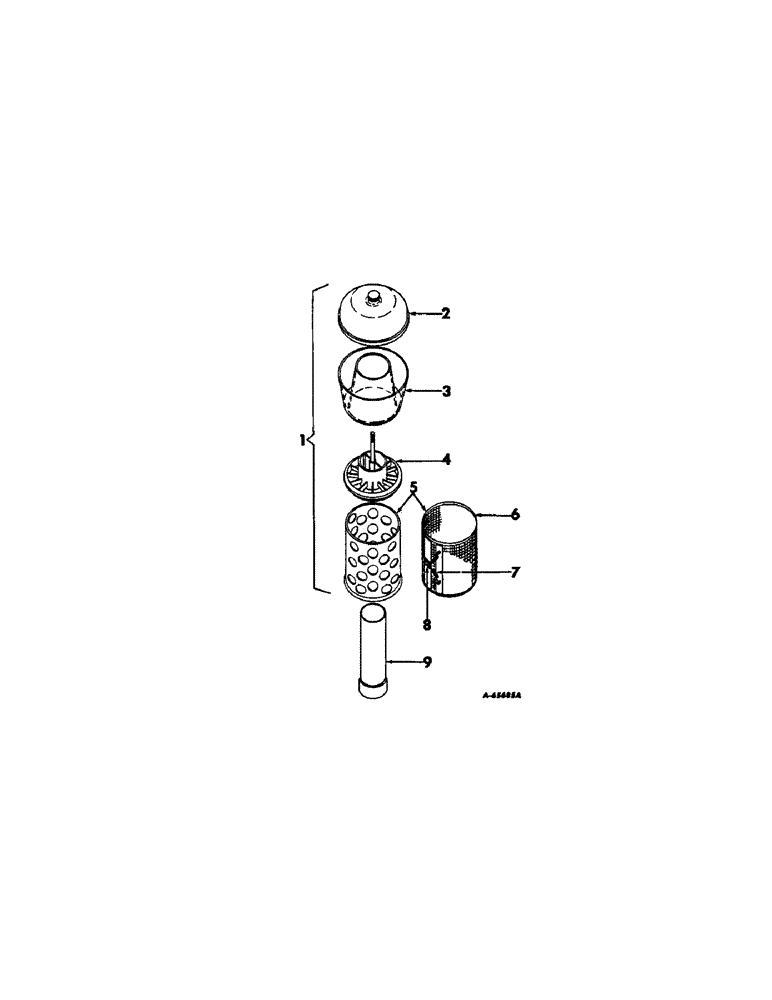

Запчасти Case IH 403 (337) - PRE-CLEANER, PRE-SCREENER, FOR C-263 ENGINE (10) - ENGINE

1

379670C91

PRE-CLEANER, pre-screener assy, Combine serial no. 7223 and below

1шт.

1

378802R91

CLEANER

PRE-CLEANER, pre-screener assy, Combine serial no. 7224 and above

1шт.

2

365412R91

COVER

ASSY, pre-cleaner

1шт.

3

365413R1

BOWL

BODY, pre-cleaner

1шт.

4

365414R91

SLEEVE

ASSY, pre-cleaner, Part of 379670R91

1шт.

4

365415R91

SLEEVE

ASSY, pre-cleaner, Part of 378802R91

1шт.

5

381600R91

SCREEN

PRE-SCREENER ASSY, Part of 379670R91

1шт.

5

381601R91

PRE-SCREENER ASSY, Part of 378802R91

1шт.

115988

NO. 10 SQ NUT

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

NO. 10 X 1-1/4 SLT-RD-HD MACH SCREW

1шт.

6

378724R91

SCREEN

W/CLIP, 353758R91 and two springs, 353639R1 assy, pre-screener

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

8

353758R1

CLIP

screen lock tension spring

1шт.

9

NOT USED IN THIS APPLICATION

1шт.
