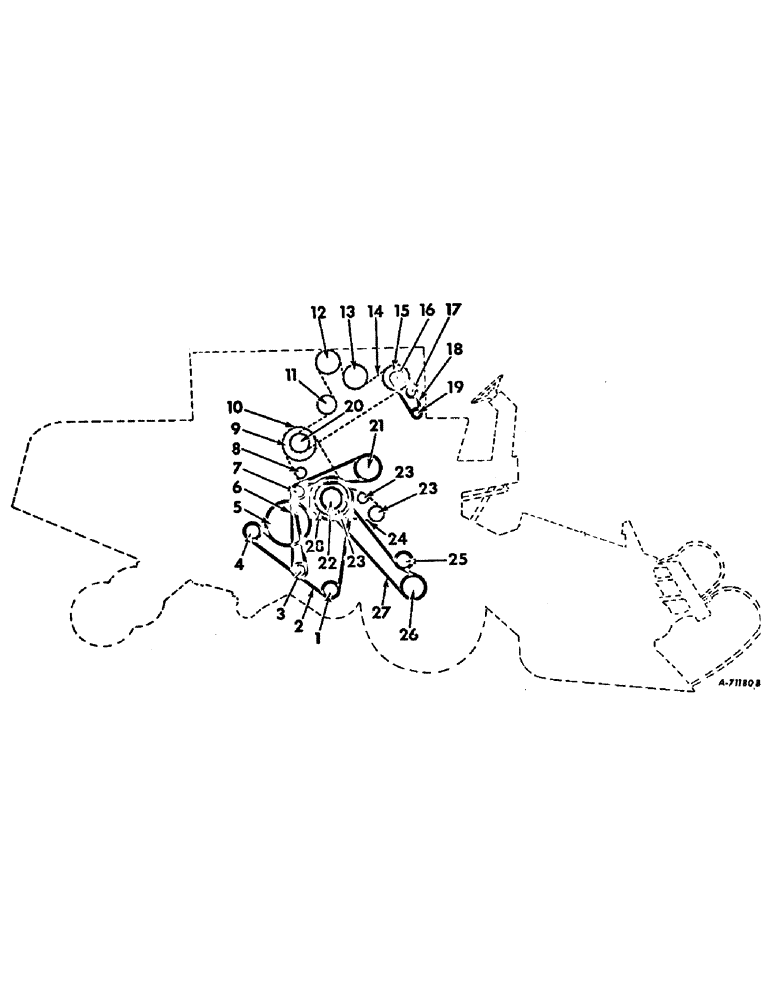

Запчасти Case IH 403 (013) - BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, RIGHT SIDE (05) - SERVICE & MAINTENANCE

1

634077R1

PULLEY

SHEAVE, inner half driven, regular, Not windrow special

1шт.

1

634079R1

SHEAVE, inner half, regular for windrow special, special

1шт.

1

564481R2

SHEAVE, outer half driven, regular, Not windrow special

1шт.

1

564811R2

SHEAVE, outer half, regular for windrow special, special, See unit listed under fan drive and slow speed fan attachment

1шт.

2

937928R1

V-BELT

Fan and straw back drive, Regular for grain, rice and windrow special

1шт.

2

150434C1

V-BELT,0.88" W x 166.99" L

Fan and Straw Rack Drive, Regular for Bean, Special, Slow Speed, See Unit Listed Under Straw Rack and Drive 0.88" W x 166.99" L

1шт.

3

627895R1

PULLEY

SHEAVE, unloader auger drive, Not for hydrostatic ground drive

1шт.

3

150669C1

PULLEY, unloader auger drive, For hydrostatic ground drive, See unit listed under grain tank unloader auger drive and tightener

1шт.

4

574097R91

PULLEY

SHEAVE, fan belt tightener, See unit listed under fan drive and slow speed fan attachment

1шт.

5

568237R11

SHEAVE W/SPACER, straw rack driven

1шт.

5

570850R1

SHEAVE, straw, rack driven, slow speed, See unit listed under straw rack and drive

1шт.

6

559064R1

V-BELT,0.88" W

Unloader drive, Not for hydrostatic ground drive 0.88" W

1шт.

6

165676C1

V-BELT,0.88" W x 153.99" L

Unloader Drive, For Hydrostatic Ground Drive, See Unit Listed Under Grain Tank Unloader Auger Drive 0.88" W x 153.99" L

1шт.

7

154742C91

PULLEY

SHEAVE ASSY, unloader drive tightener sheave outer

1шт.

7

570265R91

PULLEY

SHEAVE ASSY, unloader drive tightener sheave inner, See unit listed under grain tank unloader auger drive and tightener

1шт.

8

565442R91

SPROCKET

elevator drive chain tightener, See unit listed under grain elevator and drive

1шт.

9

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven 38-T, See unit listed under grain elevator and drive

1шт.

10

CHAIN, elevator jackshaft drive roller, Use 71 links from 10-ft roll marked 1791D and 1 connecting link 1310D, See unit listed under grain elevator and drive

1шт.

11

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, elevator drive chain idler 9-T, See unit listed under elevator chain drive

1шт.

11

154742C91

PULLEY

elevator drive tightener, See unit listed under grain elevator and drive

1шт.

12

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven 50-T, Serial no. 16130 and above, See unit listed under elevator chain drive

1шт.

12

633198R1

PULLEY, elevator driven, See unit listed under grain elevator and drive, Serial no. 7223 and below

1шт.

12

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 7224 and above, See unit listed under grain elevator and drive

1шт.

13

155811C1

SPROCKET ASSY.

SPROCKET, grain hopper distributor auger driven 50-T, See unit listed under chain elevator drive

1шт.

13

633199R1

PULLEY, grain tank distributor auger driven, Serial no. 7223 and below, See unit listed under grain elevator and drive

1шт.

13

939241R11

PULLEY ASSY.

PULLEY ASSY, grain hopper distributor auger driven, Serial no. 7224 and above, See unit listed under grain elevator and drive

1шт.

14

CHAIN ASSY, elevator drive, order 127 links from 10-ft roll marked 569089R1, one connecting link 587372R91 and one offset link 456929R91

1шт.

14

937928R1

V-BELT

Elevator drive, Grain machines equipped with grain tank

1шт.

14

937929R1

V-BELT

Elevator drive, Rice machines equipped with grain tank, Also used on grain machines equipped with raised leveling auger

1шт.

14

150432C1

BELT, elevator drive, grain machines equipped with grain tank and Scourkleen attachment

1шт.

14

634893R1

BELT,0.88" W

V-BELT , Elevator drive, Grain machines equipped with grain tank, Grain tank extension attachment and Scourkleen attachment, Serial no. 7223 and below 0.88" W

1шт.

14

150430C1

BELT, elevator drive, grain machines equipped with grain tank and raised leveling auger and Scourkleen attachment

1шт.

14

150435C1

BELT

elevator drive, bagger

1шт.

14

937929R1

V-BELT

Elevator drive, Grain hopper extension, Serial no. 2195 and below

1шт.

14

150433C1

V-BELT,206.49" L

Elevator Drive, Grain Hopper Extension, Serial Nos. 2196 thru 7223 206.49" L

1шт.

14

152586C1

BELT

elevator drive, grain machine equipped with grain tank, grain tank extension attachment and Scourkleen attachment, Serial no. 7224 and above, See unit listed under grain elevator and drive

1шт.

15

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven 50-T, Serial no. 16130 and above, See unit listed under chain elevator drive

1шт.

15

633198R1

PULLEY, elevator driven, See unit listed under tailings elevator and drive, Serial no. 7223 and below

1шт.

15

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven serial no. 7224 to 16129, See unit listed under tailings elevator and drive

1шт.

16

632830R1

PULLEY

SHEAVE, tailings delivery auger drive, See unit listed under tailings elevator and drive

1шт.

17

161430C91

PULLEY

ASSY, tailings delivery auger drive belt tightener, See unit listed under tailings elevator and drive

1шт.

18

627297R1

V-BELT,0.63" W

Tailings delivery auger drive, See unit listed under tailings elevator and drive 0.63" W

1шт.

19

633282R1

SHEAVE

tailings auger driven, See unit listed under tailings elevator and drive

1шт.

20

155814C1

SPROCKET ASSY.

SPROCKET, elevator drive, Serial no. 16130 and above, See unit listed under chain elevator drive

1шт.

20

936394R1

PULLEY, elevator drive, special elevator belt drive serial no. 16130 and above

1шт.

20

627988R1

PULLEY, elevator drive, Serial no. 16129 and below, See unit listed under grain elevator and drive

1шт.

21

22784KA

PULLEY

SHEAVE W/RING, unloader driven, See unit listed under grain tank unloader drive

1шт.

22

631834R2

PULLEY, shaker shaft drive, See unit listed under grain pan and shaker shaft drive

1шт.

23

569201R2

PINION

SPROCKET 20-T, double, grain

1шт.

23

569580R2

SPROCKET ASSY.

SPROCKET 30-T, double, rice

1шт.

23

569200R2

DRIVE SPROCKET

SPROCKET 25-T, double, grain, special

1шт.

23

569202R2

DRIVE SPROCKET

SPROCKET 43-T, double, grain, special

1шт.

23

627884R1

SPROCKET ASSY.

SPROCKET 22-T, double, grain, special

1шт.

23

570606R2

SPROCKET 43-T, double, bean special

1шт.

23

570655R1

SPROCKET 48-T, double, bean special, See unit listed under cylinder drive and slip clutch

1шт.

24

CHAIN, cylinder drive roller, Use 75 links from 10-ft roll marked 1355D, 2 roller links 1316D, 3 connecting links 569206R91, and 1 two pitch combination offset links 570988R91, grain

1шт.

24

CHAIN, cylinder drive roller, Use 79 links from 10-ft roll marked 1355D, 4 roller links 1316D, 4 connecting links 569206R91 and 1 two pitch combination offset link 570988R91, level land rice

1шт.

24

CHAIN, cylinder drive roller extension, Use 6 links from 10-ft roll marked 1355D, 3 connecting links 569206R91 and 1 two pitch combination offset connecting link 570988R91, bean special, See unit listed under cylinder drive and slip clutch

1шт.

25

566519R91

PULLEY

SHEAVE, drive belt tightener, See unit listed under grain pan and shaker shaft drive

1шт.

26

631835R1

PULLEY

SHEAVE, shaker shaft driven, Not bean special

1шт.

26

632700R1

SHEAVE, shaker shaft driven, bean special, See unit listed under grain pan and shaker shaft drive

1шт.

27

564494R2

V-BELT,0.88" W

Shaker shaft drive, Not bean special 0.88" W

1шт.

27

550950R1

V-BELT,0.88" W

Shaker shaft drive, Bean special, See unit listed under grain pan and shaker shaft drive 0.88" W

1шт.

28

629164R2

SPROCKET ASSY.

SPROCKET AND PULLEY, elevator jackshaft drive 38-T, See unit listed under fan drive and slow speed fan attachment

1шт.
