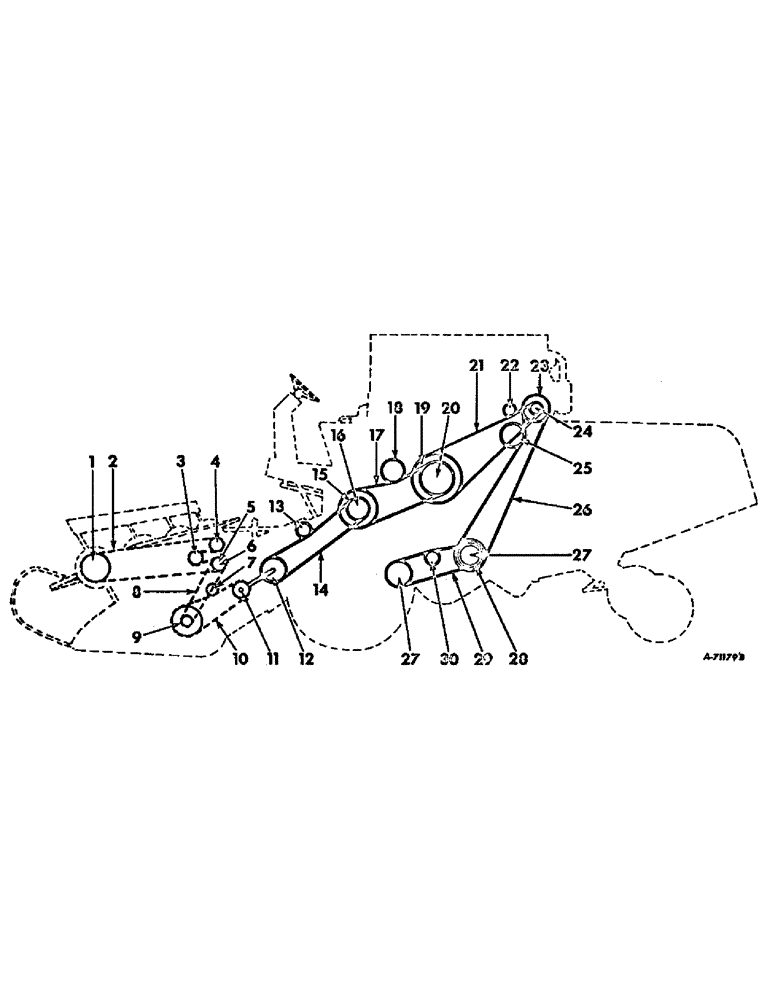

Запчасти Case IH 403 (011) - BELT, CHAIN, SHEAVE AND SPROCKET DIAGRAM, LEFT SIDE (05) - SERVICE & MAINTENANCE

1

570032R1

SPROCKET ASSY.

SPROCKET, reel shaft 29-T, Not for use with hydraulic reel drive chain reduction

1шт.

1

935676R1

SPROCKET, reel shaft 35-T, See unit listed under reel support arms and drive, For use with hydraulic reel drive chain reduction

1шт.

2

CHAIN, reel drive roller, Use 109 links from 10-ft roll marked 569089R91 1 connecting link 456980R91 and 2 offset connecting links 456929R91, See unit listed under reel support arms and drive

1шт.

3

564989R91

DRIVE SPROCKET

SPROCKET, reel drive chain tightener 9-T, See unit listed under reel support arms and drive

1шт.

4

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive chain idler 9-T, See unit listed under reel support arms and drive

1шт.

5

569018R2

SPROCKET ASSY.

SPROCKET, reel idler driven, slow-speed, 16-T

1шт.

5

569019R2

DRIVE SPROCKET

SPROCKET, reel idler driven, intermediate-speed, 14-T

1шт.

5

588771R2

SPROCKET ASSY.

SPROCKET, reel idler driven, rice 19-T

1шт.

5

569020R2

SPROCKET ASSY.

SPROCKET, reel idler driven, fast-speed, grain, 12-T, See unit listed under platform auger and drive

1шт.

6

571440R11

SPROCKET ASSY.

SPROCKET W/BUSHING ASSY, reel drive idler 8-T, See unit listed under reel support arms and drive, Not for hydrostatic ground drive

1шт.

7

571441R91

SPROCKET ASSY.,15T

SPROCKET, platform auger drive tightener, See unit listed under platform auger and drive

1шт.

8

CHAIN, reel jackshaft drive roller, Use 43 links from 10-ft roll marked 569089R91, 3 roller links 456979R91, 3 connecting links 456980R91, 4 offset connecting links 456929R91, See unit listed under platform auger and drive

1шт.

9

571460R1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch 45-T and 10-T

1шт.

9

156867C1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch driven, See unit listed under platform auger and drive, listed under platform auger and drive

1шт.

CHAIN, platform auger drive roller, ind. no. 60H 1/8 in. thick side bar, Use 85 links from 10-ft roll marked 1793D and one connecting link 1786D, ind. no. 60 3/32 in. thick side bar, Use 85 links from 10-ft roll marked 611362R91 and one connecting link 574532R91

1шт.

11

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive 17-T

1шт.

11

632971R91

SPROCKET W/HUB, platform auger and reel drive 17-T, 12-ft and 13-ft platform less cutting parts

1шт.

11

150819C91

DRIVE SPROCKET

SPROCKET W/HUB, platform auger and reel drive, 19-T, For 23.1-26 main wheel tires for 18 ft. platform, Serial no. 9957 and above, See unit listed under feeder and feed conveyor chain

1шт.

12

571435R1

SHEAVE, platform jackshaft driven, Serial no., Serial Range: 501-4643

1шт.

12

654592R1

SHEAVE, platform jackshaft driven, Serial no. 4644 and above, See unit listed under feeder and feed conveyor chain

1шт.

13

568941R11

PULLEY

SHEAVE, platform jackshaft tightener, See unit listed under feeder and feed conveyor chain

1шт.

14

633723R2

V-BELT,1.26" W

Platform jackshaft drive, Not for 23.1/18-26 main wheel tires 1.26" W

1шт.

14

633728R2

V-BELT,1.26" W

Platform jackshaft drive, For 23.1/18-26 main wheel tires, Serial no. 9956 and below 1.26" W

1шт.

14

571434R1

V-BELT,1.26" W

Platform jackshaft drive, 18 ft. platform, Serial no. 9957 and above 1.26" W

1шт.

14

150816C1

V-BELT,1.26" W x 168.28" L

Platform Jackshaft Drive, For 23.1-26 Main Wheel Tires, Serial No. 9957 and Above, See Unit Listed Under Feeder and Feed Conveyor Chain 1.26" W x 168.28" L

1шт.

15

571467R1

SHEAVE, feeder driven, Serial no. 7223 and below

1шт.

15

568937R21

PULLEY

SHEAVE ASSY, platform jackshaft driven, Serial no. 7224 and above, See unit listed under feeder and feed conveyor chain

1шт.

16

571467R1

SHEAVE, platform jackshaft drive, Serial no. 7223 and below

1шт.

16

568937R21

PULLEY

SHEAVE ASSY, platform jackshaft drive, Serial no. 7224 and above

1шт.

16

150818C11

PULLEY ASSY, platform jackshaft drive, For 23.1-26 main wheel tires, For 18 ft. platform, Serial no. 9957 and above, See unit listed under feeder and feed conveyor chain

1шт.

17

568938R1

BELT

feeder drive, Serial no. 7223 and below

1шт.

17

937932R1

BELT

V-BELT, Feeder drive, Serial no. 7224 and above, Not windrow special

1шт.

17

156062C1

V-BELT,1.26" W x 114.48" L

Feeder Drive, Serial No. 13063 and Above, Windrow Special, See Unit Listed Under eeder and feed conveyor chain 1.26" W x 114.48" L

1шт.

18

568941R11

PULLEY

SHEAVE ASSY, feeder drive, See unit listed under feeder separator clutch and throttle control

1шт.

19

631183R1

PULLEY

separator driven, Serial no. 501 to 4643, Order service package 936715R91

1шт.

19

936715R91

PACKAGE

ASSY, cylinder beater and separator drive pulley, Serial no. 4643 and below, Consists of

1шт.

163553C11

SHAFT ASSY, cylinder beater

1шт.

936436R1

PULLEY, separator driven

1шт.

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 Woodruff

1шт.

163446C1

KEY

3/8 x 2-1/2 str

1шт.

629724R11

COLLAR

COLLAR W/SET SCREW ASSY

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 SET SCREW

1шт.

632471R1

1-1/32 X 2 X 22 GA WASHER

4шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 X 2-1/4 X 1/4 WASHER

4шт.

19

936436R1

PULLEY, separator driven, Serial no., Serial Range: 4644-16129

1шт.

19

159263C1

PULLEY, separator driven, Serial no., Serial Range: 16130-18141

1шт.

19

166044C1

PULLEY, separator driven, Serial no. 18142 and above, Not for grain machines w/grain tank serial no. 19528 and above

1шт.

19

170710C1

PULLEY, separator driven, For grain machines w/grain tank serial no. 19528 and above, See unit listed under separator and propulsion jackshaft drive

1шт.

20

586304R1

SHEAVE, feeder drive, Serial no. 7223 and below

1шт.

20

150493C11

PULLEY ASSY, feeder drive, Serial no. 7224 and above, See unit listed under feeder and feed conveyor chain

1шт.

21

159267C1

V-BELT,2.25" W x 174.99" L, 3 Ribs

Separator Drive, Serial No. 16130 and Above 2.25" W x 174.99" L, 3 Ribs

1шт.

21

629820R1

BELT,5.00" W x 163.35" L

Separator drive, S/N 16129 and below, See unit listed under separator and propulsion jackshaft drive 5.00" W x 163.35" L

1шт.

22

568955R1

PULLEY, separator drive belt tightener, Serial no. 16129 and below

1шт.

22

606555R1

PULLEY, separator drive belt tightener, Serial no. 16130 and above, See unit listed under separator and propulsion jackshaft drive

1шт.

23

627732R1

SHEAVE, propulsion jackshaft drive, Not hydrostatic ground drive

1шт.

23

150624C1

PULLEY

grain hopper unloader jackshaft drive, For hydrostatic ground drive, See unit listed under grain hopper unloader jackshaft

1шт.

24

629813R1

PULLEY, separator drive, Serial no. 16129 and below

1шт.

24

159265C1

PULLEY, separator drive, Serial no. 16130 and above, See unit listed under separator and propulsion jackshaft drive

1шт.

25

569193R11

PULLEY

SHEAVE ASSY, propulsion jackshaft drive belt tightener, See unit listed under separator and propulsion jackshaft drive, Not hydrostatic ground drive

1шт.

25

570265R91

PULLEY

ASSY, grain hopper unloader jackshaft drive belt tightener, hydrostatic ground drive, See unit listed under grain hopper unloader jackshaft

1шт.

26

937931R1

V-BELT

Propulsion jackshaft drive, Not hydrostatic ground drive, See unit listed under propulsion variable speed, jackshaft & drive

1шт.

26

150670C1

V-BELT,0.63" W x 157.79" L

Grain Hopper Unloader Jackshaft Drive, For Hydrostatic Ground Drive, See Unit Listed Under Grain Hopper Unloader Jackshaft Drive 0.63" W x 157.79" L

1шт.

27

633353R11

PULLEY

SHEAVE, propulsion drive, adjustable half, See unit listed under propulsion variable speed, jackshaft and drive, Not for hydrostatic ground drive

1шт.

27

633352R11

PULLEY

SHEAVE W/BUSHING ASSY, propulsion drive, See unit listed under variable speed, jackshaft & drive, Not for hydrostatic ground drive

1шт.

28

633354R1

SHEAVE, propulsion jackshaft driven, Not for hydrostatic ground drive, See unit listed under propulsion variable speed, jackshaft and drive

1шт.

28

626770R1

PULLEY, grain hopper unloader jackshaft driven, For hydrostatic ground drive, See unit listed under grain hopper unloader jackshaft

1шт.

29

935951R1

BELT

propulsion drive, See unit listed under propulsion variable speed, jackshaft and drive, Not for hydrostatic ground drive

1шт.

30

569963R1

PULLEY

SHEAVE, propulsion drive belt tightener, Not for hydrostatic ground drive, See unit listed under propulsion variable speed, jackshaft & drive

1шт.
