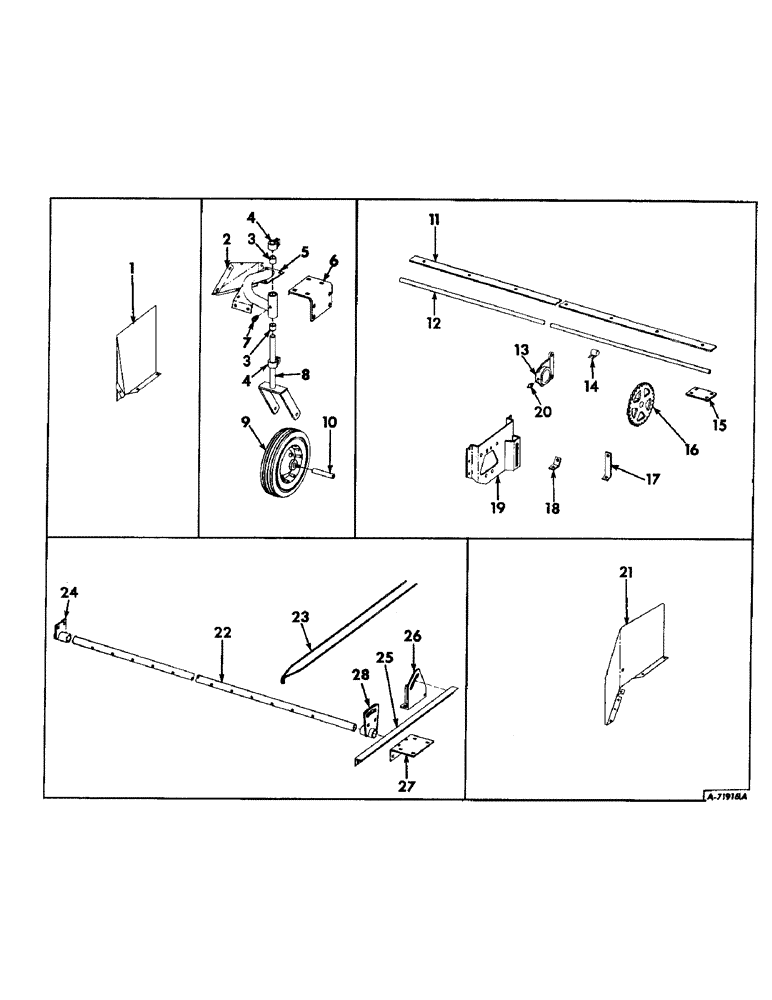

Запчасти Case IH 403 (293[1]) - KEY TO UNITS (00) - GENERAL & PICTORIAL INDEX

1

634098R1

SHIELD, wind deflector LH, unit A, grain

1шт.

1

634099R1

SHIELD, wind deflector RH, unit A, grain

1шт.

1/4 X 1/2 CRG BOLT W/NUT

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

1/4 LOCK WASHER

2шт.

5/16 LOCK WASHER

4шт.

2

633002R1

SHIELD, wheel support LH, unit B, grain

1шт.

2

633003R1

SHIELD, wheel support RH, unit B, grain

1шт.

1/4 X 1/2 CRG BOLT W/NUT

4шт.

1/4 LOCK WASHER

4шт.

3

454172R1

BUSHING

wheel pivot shaft housing, unit B, grain

4шт.

4

633000R1

CLAMP, yoke pivot shaft, unit B, grain

4шт.

7/16 X 1-1/2 CRG BOLT W/NUT

4шт.

7/16 LOCK WASHER

4шт.

5

155261C91

SUPPORT ASSY, gauge wheel LH, Includes ref no. 3, unit B, grain

1шт.

5

155262C91

SUPPORT ASSY, gauge wheel RH, Includes ref no. 3, unit B, grain

1шт.

6

632998R91

STIFFENER W/GUSSET, wheel anchor, unit B, grain

1шт.

1/4 X 1/2 CRG BOLT W/NUT, unit C

2шт.

3/8 X 1-3/4 CRG BOLT W/NUT

8шт.

1/4 LOCK WASHER

2шт.

3/8 LOCK WASHER

8шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication, unit B, grain

2шт.

8

632993R91

YOKE W/SIDES, gauge wheel, unit B, grain

2шт.

1/2 X 5-3/4 MACH BOLT W/NUT

2шт.

1/2 LOCK WASHER

2шт.

9

633001R92

WHEEL W/TIRE ASSY, gauge, unit B, grain

2шт.

10

632990R1

BUSHING

SLEEVE, gauge wheel hub, unit B, grain

2шт.

25/32 X 1-1/2 X 16 GA WASHER

4шт.

615168R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

4шт.

551658R1

WASHER

25/32 X 1-1/4 X 22 GA WASHER

4шт.

11

633140R1

PAD, finger wear, unit C

1шт.

12

633130R1

STRIPPER, finger, unit C

1шт.

13

633134R1

BRACKET

LH pivot, unit C

2шт.

7/16 X 1-1/4 MACH BOLT W/NUT

4шт.

14

633131R1

CLIP, finger stripper, unit C

12шт.

3/8 X 1 CRG BOLT W/NUT

12шт.

3/8 LOCK WASHER

12шт.

15

633139R1

STRAP, pickup support anchor, unit C

2шт.

3/8 X 1 CRG BOLT W/NUT

8шт.

3/8 LOCK WASHER

8шт.

16

633147R1

SPROCKET, main drive, unit C

1шт.

1/8 X 3/4 COTTER PIN

1шт.

AB5331

5/16 X 2-1/8 DLD PIN

1шт.

17

633143R1

STRAP, jackshaft shield upper, unit C

1шт.

18

633144R1

STRAP, jackshaft shield lower

2шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

19

633136R91

SUPPORT W/BRACKET, jackshaft drive bearing bracket, unit C

1шт.

20

16964R1

FITTING

1/4 90 deg elbow lubrication

1шт.

21

634095R11

SHIELD W/ROD ASSY, wind deflector LH, unit D, grass

1шт.

21

634096R11

SHIELD W/ROD ASSY, wind deflector RH, unit D, grass

1шт.

5/16 X 3/4 CRG BOLT W/NUT

12шт.

5/16 LOCK WASHER

12шт.

22

653932R91

HOLDER, finger, units E and F

1шт.

23

634092R1

FINGER, units E and F

13шт.

1/4 X 1-1/4 CRG BOLT W/NUT

13шт.

1/4 LOCK WASHER

13шт.

24

634081R91

SUPPORT ASSY, finger holder RH, units E and F

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8 X 1 SQ-HD CUP-PT SET SCREW

1шт.

3/8 LOCK WASHER

2шт.

25

634090R1

ARM, finger holder LH, units E and F

1шт.

25

634091R1

ARM, finger holder RH, units E and F

1шт.

26

634084R91

BRACKET W/GUSSET, LH arm, units E and F

1шт.

26

634085R91

BRACKET W/GUSSET, RH arm, units E and F

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

4шт.

1/2 X 1 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

1/2 LOCK WASHER

4шт.

27

634482R1

STIFFENER, anchor, unit E

2шт.

3/8 X 1-1/4 CRG BOLT W/NUT

8шт.

5/16 X 1-1/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

8шт.

28

653930R91

SUPPORT ASSY, finger holder LH, units E and F

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8 X 1 SQ-HD CUP-PT SET SCREW

1шт.

3/8 LOCK WASHER

2шт.
