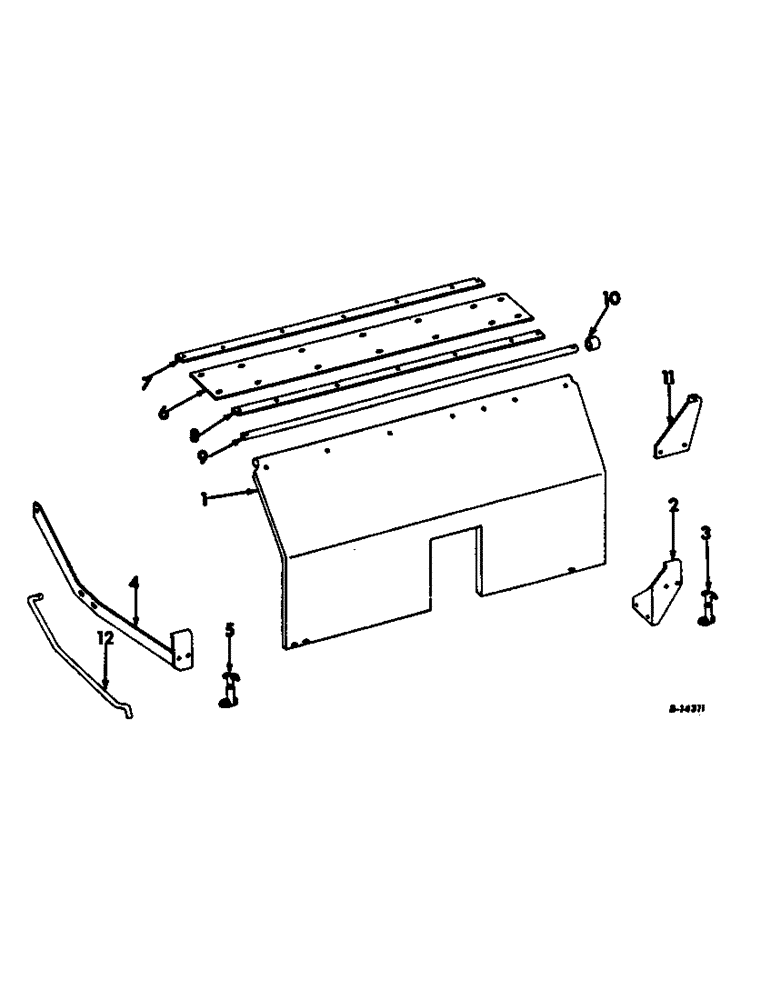

Запчасти Case IH 403 (402) - ENGINE COVER, LATCH AND SUPPORTS, FOR D-301 ENGINE, COMBINE SERIAL NO. 7224 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

939738R91

COVER ASSY, engine

1шт.

2

939765R11

LATCH ASSY, engine cover right rear, Includes ref. no. 3

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 MACH BOLT

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

353443R91

LATCH ASSY.

LATCH ASSY

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 button head

2шт.

4

654570R91

SUPPORT ASSY, engine cover left, Includes ref. no. 5

1шт.

5

353443R91

LATCH ASSY.

LATCH ASSY

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

NOT USED IN THIS APPLICATION

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

939521R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

557264R1

WASHER

11/32 X 3/4 X 11 GA WASHER

4шт.

10

23323H

SPACER,1/4" Pipe x 1/2"

engine cover hinge rod

1шт.

11

939761R1

SUPPORT, engine cover hinge right

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

634107R1

POST, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.
