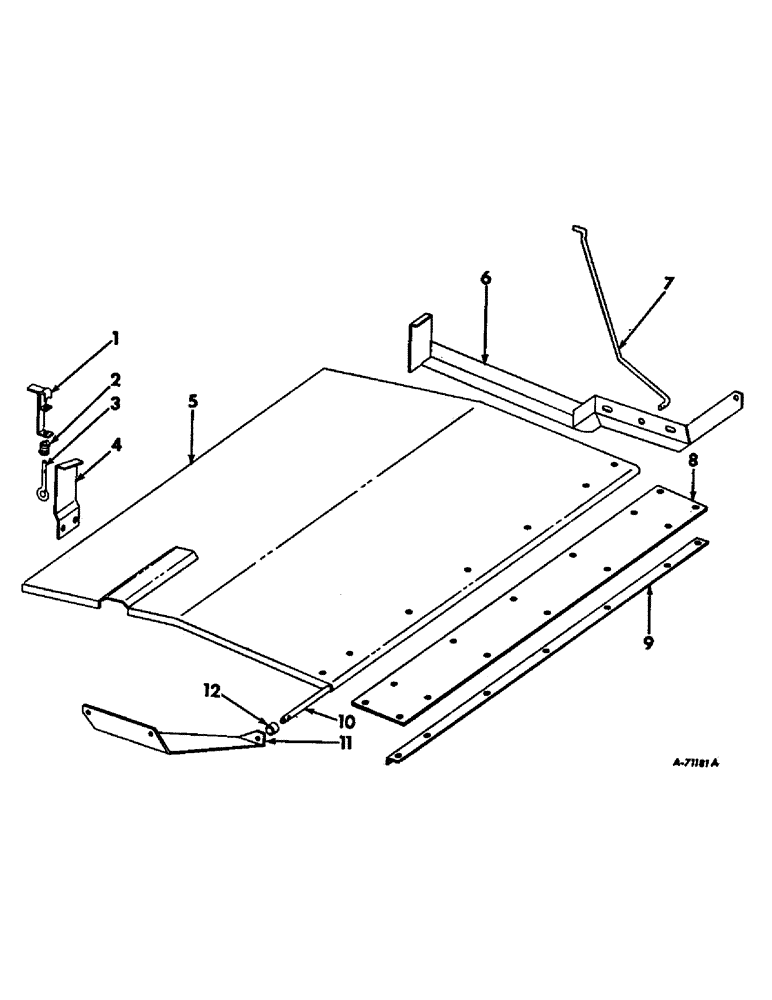

Запчасти Case IH 403 (401) - ENGINE COVER, LATCH AND SUPPORTS, FOR D-282 ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

633343R91

LATCH W/HANDLE, engine cover

2шт.

2

131DS

SPRING

engine cover latch

2шт.

446210

WASHER

valve cover

4шт.

3

634360R1

ROD, engine cover latch spring

2шт.

1033843

1/8 X 3/4 COT. PIN

4шт.

512166R1

PIN,1/4" x 7/8"

1/4 X 7/8 DLD PIN

2шт.

557109R1

WASHER

17/64 X 1/2 X 16 GA WASHER

4шт.

4

634106R11

SUPPORT W/PIVOT, engine cover right

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 MACH BOLT

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

2шт.

5

633277R11

COVER W/STRAP, engine

1шт.

6

634100R91

SUPPORT W/PIVOT, engine cover left

1шт.

7

634107R1

POST, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

8

633269R1

SEAL, engine cover hinge

1шт.

109084

NUT,1/4"-20, G5

14шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

14шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

14шт.

9

634126R1

STIFFENER, engine cover seal

2шт.

10

633270R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

557264R1

WASHER

11/32 X 3/4 X 11 GA WASHER

4шт.

11

634107R1

SUPPORT, engine cover hinge right

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

565708R1

SPACER, engine cover hinge rod

1шт.
