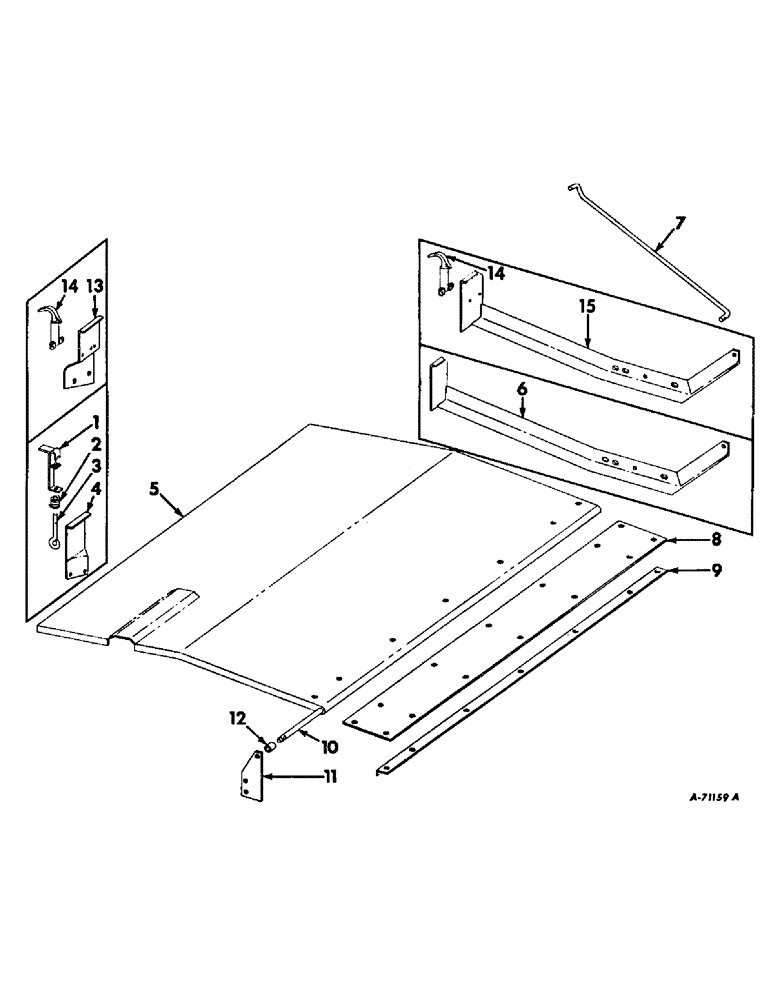

Запчасти Case IH 403 (399) - ENGINE COVER, LATCH AND SUPPORT, FOR C-263 ENGINE, COMBINE SERIAL NO. 7223 AND BELOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

633343R91

LATCH W/HANDLE ASSY, engine cover, Combine serial no. 2195 & below

2шт.

2

131DS

SPRING

Combine serial no. 2195 & below

2шт.

3

634360R1

ROD, engine cover latch spring, Combine serial no. 2195 & below

2шт.

103417

COTTER PIN

1/4 X 3/4 COTTER PIN

4шт.

512166R1

PIN,1/4" x 7/8"

1/4 X 7/8 DLD PIN

2шт.

557109R1

WASHER

17/64 X 1/2 X 16 GA WASHER

4шт.

4

633272R11

SUPPORT W/PIVOT, engine cover RH rear, Combine serial no. 2195 & below

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 MACH BOLT

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

633277R11

COVER W/STRAP, engine, Combine serial no. 2915 & below

1шт.

5

936496R1

COVER W/STRAP, engine, Combine serial no. 2196 & above

1шт.

6

633274R91

SUPPORT W/PIVOT, engine cover LH, Combine serial no. 2195 & below

1шт.

7

632874R1

POST, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

8

633269R1

SEAL, engine cover hinge, Grain tank, Combine serial no. 4643 & below

1шт.

8

654940R1

SEAL

engine cover hinge, Grain tank, Combine serial no. 4644 & above

1шт.

109084

NUT,1/4"-20, G5

12шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

12шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

12шт.

9

634126R1

STIFFENER, engine cover seal, Grain tank, Combine serial no. 4643 & below

1шт.

9

654941R1

STIFFENER, engine cover seal, Grain tank, Combine serial no. 4644 & above

1шт.

10

633270R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

557264R1

WASHER

11/32 X 3/4 X 11 GA WASHER

4шт.

11

633271R1

SUPPORT, engine cover RH front

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

U13039

SPACER

engine cover hinge rod

1шт.

13

654572R11

SUPPORT W/LATCH ASSY, engine cover RH rear, Includes ref no. 14, Combine serial no. 2196 & above

1шт.

14

353443R91

LATCH ASSY.

LATCH ASSY, Combine serial no. 2196 & above

2шт.

15

654568R91

SUPPORT W/LATCH ASSY, engine cover LH, Includes ref no. 14, Combine serial no. 2196 & above

1шт.
