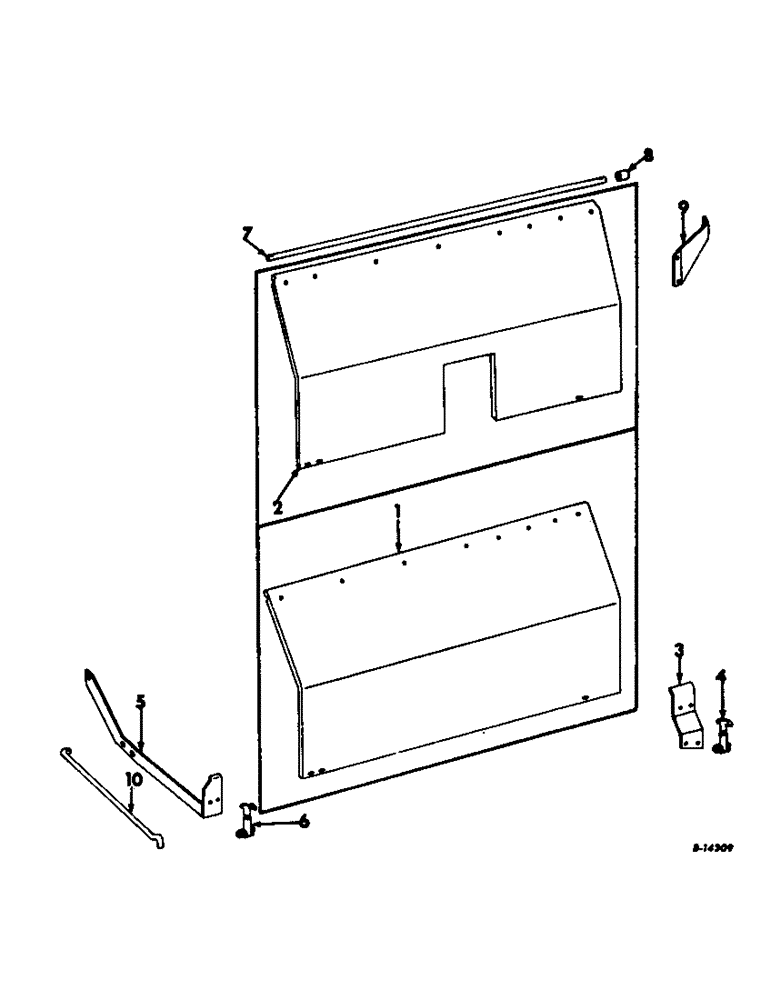

Запчасти Case IH 403 (398) - ENGINE COVER, LATCH AND SUPPORT, FOR C-263 ENGINE, COMBINE SERIAL NO. 7224 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

939529R1

COVER, engine, Not hydrostatic

1шт.

2

939530R91

COVER, engine, hydrostatic

1шт.

3

939527R11

LATCH ASSY, engine cover right hand rear, Includes ref. no. 4

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 MACH BOLT

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353443R91

LATCH ASSY.

LATCH ASSY

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 button head

2шт.

5

654568R91

SUPPORT ASSY, engine cover left, Includes ref. no. 6

1шт.

6

353443R91

LATCH ASSY.

LATCH ASSY

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 button head

2шт.

7

939521R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

57264R1

11/32 X 3/4 X 16 GA WASHER

4шт.

8

23323H

SPACER,1/4" Pipe x 1/2"

engine cover hinge rod

1шт.

9

939524R1

SUPPORT ASSY, engine cover right hand front

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

7/16 X 1-1/4 CRG BOLT

1шт.

NLS

NO LONGER SERVICED

7/16 NUT

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

1шт.

10

632874R1

POST, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.
