(259[1]) - REAR VIEW MIRROR ATTACHMENT

Запчасти Case IH 403 (259[1]) - REAR VIEW MIRROR ATTACHMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS

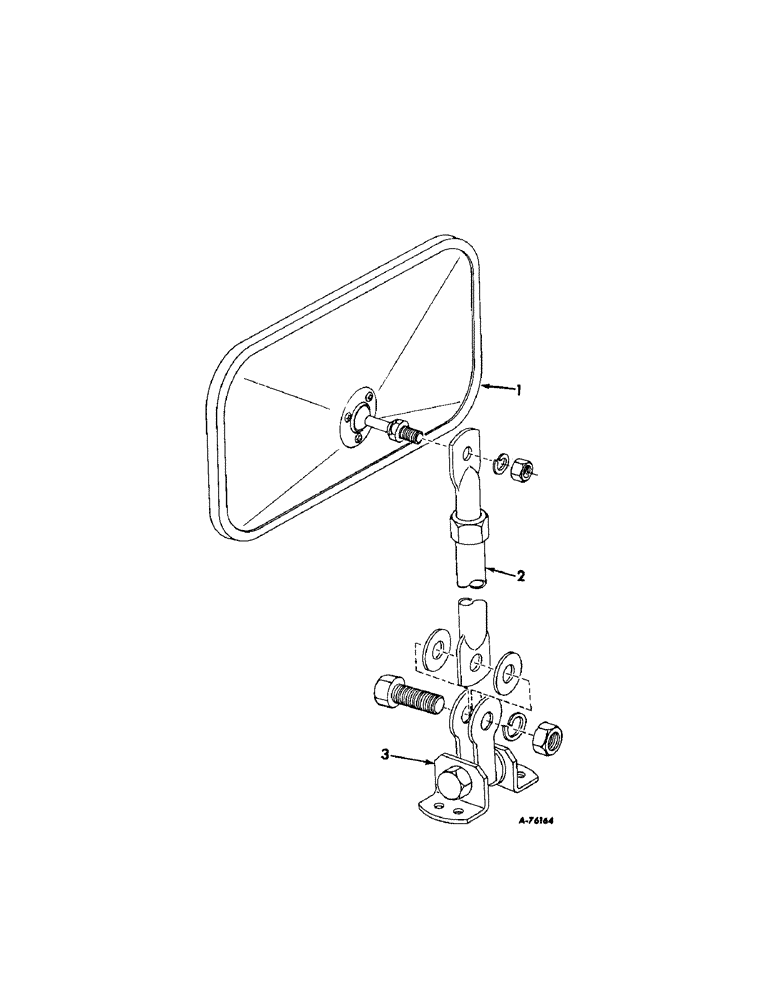

Схема запчастей Case IH 403 - (259[1]) - REAR VIEW MIRROR ATTACHMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

151188C91

MIRROR

ASSY, rear view

1шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

151171C91

HEAD ASSY, mirror

1шт.

2

151172C91

ARM ASSY, mirror extension

1шт.

3

151173C91

BRACKET ASSY, mirror mounting

1шт.

Выбрано товаров: 7
