(232) - CAB WINDOW GLASS DIMENSIONS FRONT MOUNTED PRESSURIZED AIR FILTER

Запчасти Case IH 403 (232) - CAB WINDOW GLASS DIMENSIONS FRONT MOUNTED PRESSURIZED AIR FILTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

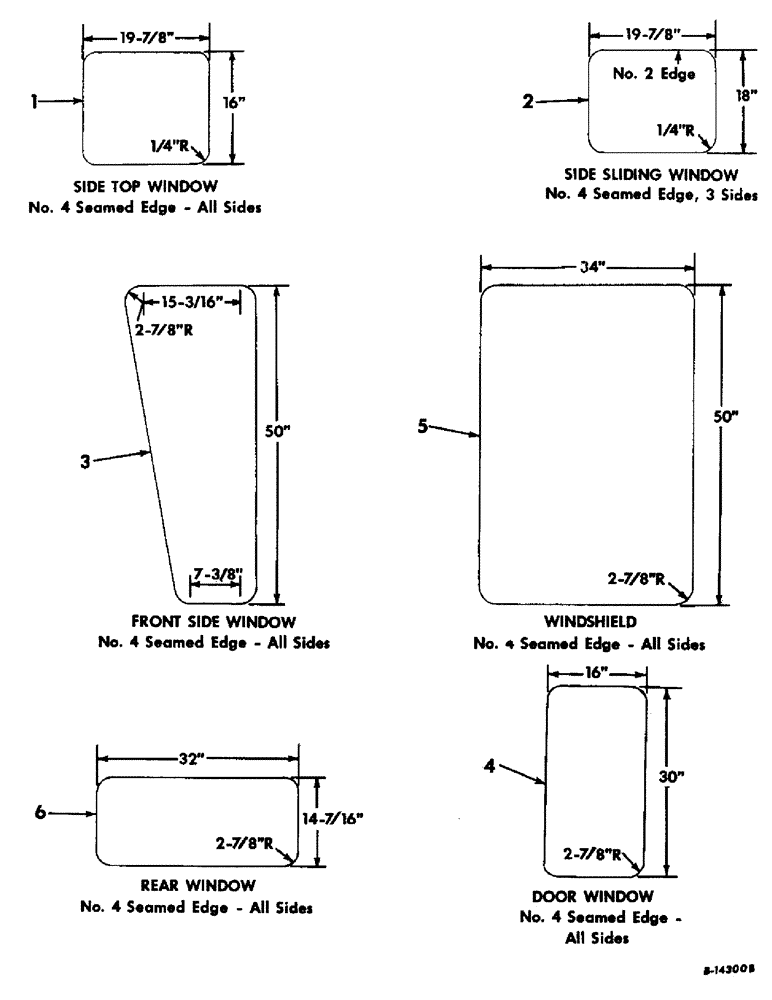

Схема запчастей Case IH 403 - (232) - CAB WINDOW GLASS DIMENSIONS FRONT MOUNTED PRESSURIZED AIR FILTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
5
3
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

937530R1

WINDOW, side top

1шт.

2

937529R1

WINDOW, side sliding

1шт.

3

583400R1

WINDOW, front side

2шт.

4

583402R1

WINDOW, door

1шт.

5

937527R1

WINDSHIELD

1шт.

6

937528R1

WINDOW, rear

1шт.
