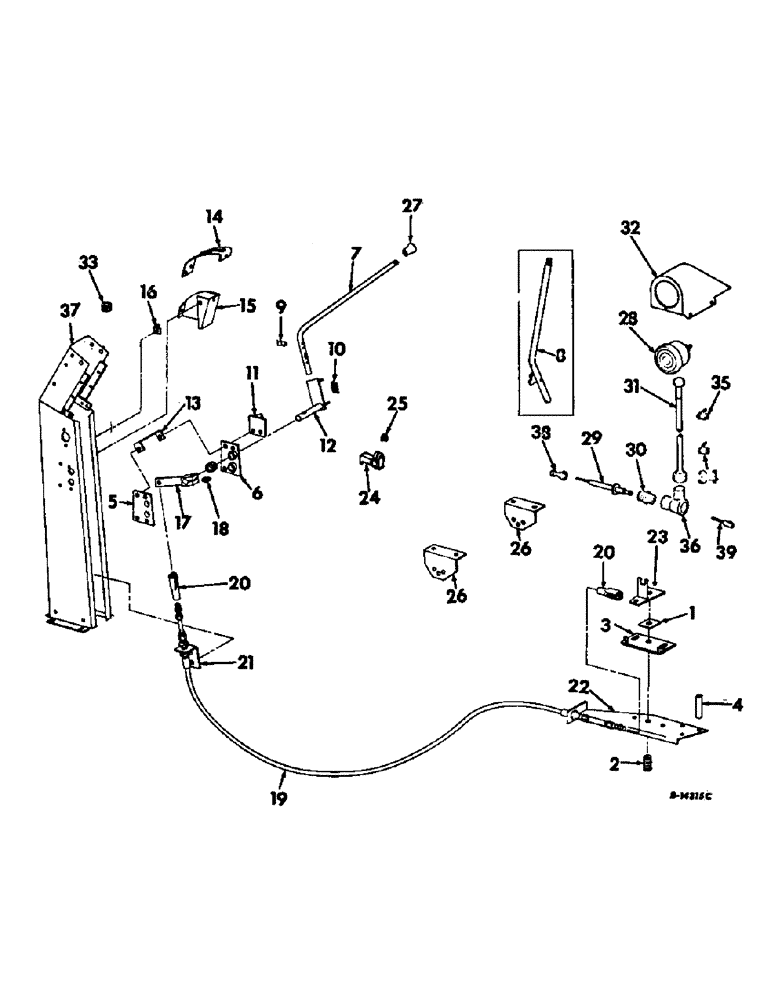

Запчасти Case IH 403 (130) - GROUND SPEED CONTROL AND SPEEDOMETER, FOR HYDROSTATIC GROUND DRIVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

150627C1

FRICTION WASHER

pump control arm

1шт.

2

28395H

SPRING

pump control arm

1шт.

3

171890C1

PLATE

ASSY, pump control arm

1шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

4

573174R1

SPACER,5/8" Tube x 3"

pump control arm support plate

3шт.

5

627407R91

PLATE ASSY, platform lift control left

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

3шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

627408R91

PLATE ASSY, platform lift control right

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

1шт.

17424R1

BOLT,Hex, 1/4" - 20 x 1"

1/4 x 1 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

7

155026C2

LEVER, ground speed control, Serial no. 3251 and above

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

8

151919C91

LEVER

ASSY, ground speed control, Serial no. 3250 and below

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

9

152215C1

STRIP, ground speed indicator

1шт.

436668

SCREW, no. 6 x 7/8 C-Z pan hd

1шт.

134530

NUT,Hex, #6 - 32

1шт.

492-11006

LOCK WASHER,#6

Lock, #6

1шт.

10

151924C1

SPRING

ground speed control lever

1шт.

17444R1

BOLT, 1/4 x 1-1/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

11

171891C1

BRACKET ASSY, ground speed neutral stop

1шт.

12

151901C91

BRACKET

ASSY, ground speed lever, Serial no. 3250 and below

1шт.

12

155023C91

BRACKET ASSY, ground speed lever, Serial no. 3251 and above

1шт.

13

151925C1

CLEVIS, steering cover tie

1шт.

14

151907C1

INDICATOR, ground speed

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd sltd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

151908C1

COVER, ground speed control lever

1шт.

17043

BOLT, 1/4 x 1/2 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

935612R1

BRACKET, ground speed control lever cover

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

151915C91

ARM ASSY, ground speed control lever

1шт.

18

28459KA

WASHER

ground speed control lever arm

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

151909C91

CABLE PULLING GRIP

CABLE ASSY, ground speed control

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

20

104037

CLEVIS

ground speed control cable

2шт.

NLS

NO LONGER SERVICED

5/16 x 31/32 rod end

2шт.

103374

COTTER PIN,3/32" x 1"

PIN, 3/32 x 1-1/4 cot.

2шт.

21

151914C1

ANGLE, cable anchor front

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

151911C91

BRACKET ASSY, pump control

1шт.

23

151917C92

ARM

ASSY, control actuating

1шт.

17626R1

BOLT, 7/16 x 3 hex-hd mach

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

24

155025C1

PAWL, ground speed control lever, Serial no. 3251 and above

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

28459KA

WASHER

ground speed control lever pawl

1шт.

26

627411R1

BRACKET hydraulic valve

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

27

163574C1

KNOB

ground speed control lever

1шт.

SPEEDOMETER, Includes ref nos 28 through 36, regular for hydrostatic ground drive, Attachment for belt drive machines not two speed gear box

1шт.

28

161258C91

SPEEDOMETER ASSY

1шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4 x 1/2 C-Z pan-hd self-tap

1шт.

29

673050R91

SHAFT

TIP & WASHER ASSY, speedometer

1шт.

30

128584HX

SLEEVE

& SEAL ASSY, speedometer

1шт.

31

156042C91

SHAFT ASSY.

SHAFT ASSY, speedometer flexible

1шт.

32

156045C1

HOUSING, speedometer

1шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4 X 1/2 C-Z PAN-HD SELF TAPPING

1шт.

33

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

1/2 rubber

1шт.

34

702093C1

CABLE TIE

CLAMP ASSY, speedometer flexible shaft lower

2шт.

35

702093C1

CABLE TIE

CLAMP ASSY, speedometer flexible shaft upper

2шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

36

156232C91

DRIVE

JOINT ASSY, speedometer flexible shaft angle, For grain or windrow-special machines w/23.1-26 main wheel tires

1шт.

36

156234C91

JOINT ASSY, speedometer flexible shaft angle, For combines w/27/28 gear transmission and 14.9-26 or 16.9-26 main wheel tires

1шт.

36

156233C91

JOINT ASSY, speedometer flexible shaft angle, For rice special combine with tracks

1шт.

36

160701C1

DRIVE

JOINT ASSY, speedometer flexible shaft angle, For combines w/27/28 gear transmission and 18.4-26 or 23.1-26 main wheel tires and power adjusting wheels

1шт.

36

161275C1

JOINT ASSY, speedometer flexible shaft angle, For combines w/21/24 gear transmission rice special w/rubber tires

1шт.

36

161276C1

JOINT ASSY, speedometer flexible shaft angle, For combines w/15/40 gear transmission

1шт.

37

156046C91

COVER ASSY, steering

1шт.

38

374639R1

COUPLING

transmission main shaft

1шт.

39

163617C1

PIN

TIP, angle joint drive, Serial no. 16130 and above

1шт.
